WORKING LOAD LIMIT 1650KG
• Safety Instructions
• Operation Procedures
• Maintenance Procedures
READ RULES FOR SAFE OPERATION AND INSTRUCTIONS CAREFULLY
WARNING:THEJACKMUSTBEUSEDONLYONHARD
LEVEL SURFACES AND BE FREE TO ROLL DURING
LIFTING AND LOWERING. DO NOT GET UNDER A
VEHICLE THAT IS SUPPORTED BY A TROLLEY JACK
- USE SUPPORT STANDS.
15 Viewtech Place, Rowville, Victoria 3178, Australia

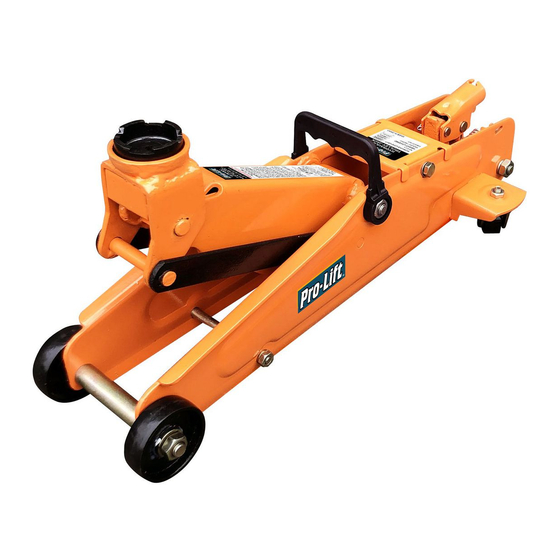

FLOOR JACK
OWNER'S MANUAL
THIS NEW JACK CONFORMS TO MANDATORY
ASNZS 2615:2004 STANDARD
Shinn Fu (Australia) PTY. LTD.
Model: F1650
1
Advertisement
Table of Contents
Related Manuals for Pro-Lift F1650
Summary of Contents for Pro-Lift F1650
- Page 1 Model: F1650 FLOOR JACK OWNER’S MANUAL WORKING LOAD LIMIT 1650KG • Safety Instructions • Operation Procedures • Maintenance Procedures READ RULES FOR SAFE OPERATION AND INSTRUCTIONS CAREFULLY WARNING:THEJACKMUSTBEUSEDONLYONHARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING. DO NOT GET UNDER A VEHICLE THAT IS SUPPORTED BY A TROLLEY JACK - USE SUPPORT STANDS.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS INSPECTIONS This hydraulic trolley jack is designed to be used with a 60mm diameter head cap, and a handle length of 700mm length. 1. BEFORE EACH USE Visual inspection should be made before each use of the trolley jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts. -
Page 3: Operation Procedures
OPERATION PROCEDURES Before using Moving the jack 1. Remove cover plate (friction fit, easily Place handle in Handle Sleeve. DO NOT removes) and open Oil Filler Plug to move the jack when handle is on the allow air to be vented. Release Valve as this may cause damage 2. -
Page 4: Specifications
SPECIFICATIONS Working Load Limit: ..................1650Kg Jack Dimension : .............. 550mm x 210mm x 130mm Height Lowered : ....................140mm Height Raised : ....................381mm Oil Capacity : ....................90+/-5cc Net Weight : ..................12.5Kg. (approx.) 36mm 65mm 210mm 550mm MAINTENANCE PROCEDURES MAINTAINING OIL LEVEL Important Note: 12mm below valve hole. -
Page 5: Troubleshooting
LUBRICATION KNOW YOUR JACK • Add lubrication oil to all moving parts Compare these illustrations with your every 3 months. jack before operation and/or oil level maintenance to become familiar with PREVENTING RUST the location of jack components. • Check Piston Rod & Pump Piston every 3 months for any signs of rust or OIL FILLER corrosion.
