WORKING LOAD LIMIT 1800KG
• Safety Instructions
• Operation Procedures
• Maintenance Procedures
READ RULES FOR SAFE OPERATION
AND INSTRUCTIONS CAREFULLY
WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL
SURFACES AND BE FREE TO ROLL DURING LIFTING AND
LOWERING. DO NOT GET UNDER A VEHICLE THAT IS SUPPORTED
BY A TROLLEY JACK - USE THIS HYDRAULIC TROLLEY JACK
WITH SUITABLY RATED VEHICLE SUPPORT STANDS.
15 Viewtech Place, Rowville, Victoria 3178, Australia

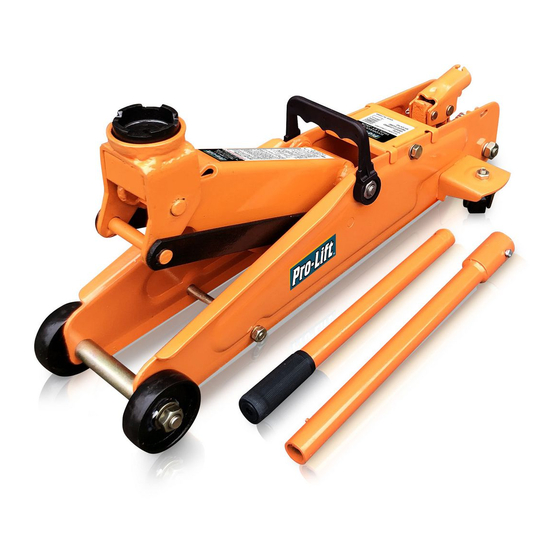

Model: F1800A
FLOOR JACK
OWNER'S MANUAL
THIS JACK CONFORMS TO MANDATORY
STANDARD AS 2615:2016
Shinn Fu (Australia) PTY. LTD.
1
Advertisement
Table of Contents
Related Manuals for Pro-Lift F1800A
Summary of Contents for Pro-Lift F1800A
- Page 1 Model: F1800A FLOOR JACK OWNER’S MANUAL WORKING LOAD LIMIT 1800KG • Safety Instructions • Operation Procedures • Maintenance Procedures READ RULES FOR SAFE OPERATION AND INSTRUCTIONS CAREFULLY WARNING: THE JACK MUST BE USED ONLY ON HARD LEVEL SURFACES AND BE FREE TO ROLL DURING LIFTING AND LOWERING.
- Page 2 SAFETY INSTRUCTIONS INSPECTIONS 1. BEFORE EACH USE Visual inspection should be made before each use of the trolley jack for abnormal conditions such as cracked welds, leaks and damaged, loose, or missing parts. 2. AFTER EACH USE Trolley jack should be inspected immediately if the lift is believed to have been subjected to an abnormal load or shock.
- Page 3 SAFETY INSTRUCTIONS CAUTION BEFORE USE Due to shipment and/or handling air can be trapped in the hydraulic system, which can interfere with the jacks lifting. To release air from the hydraulic system: • Open release valve by turning the jack handle counterclockwise. •...
- Page 4 OPERATION PROCEDURES Before using Moving the jack 1. Remove bolted on cover plate and open Place handle in Handle Sleeve. DO NOT oil filler plug to allow air to be vented. move the jack when handle is on the 2. Open Release Valve with the handle. Release Valve as this may cause damage Turn it counterclockwise.
- Page 5 SPECIFICATIONS Working Load Limit: ..................1800Kg Jack Dimension : .............. 550mm x 210mm x 140mm Height Lowered : ....................140mm Height Raised : ....................381mm Oil Capacity : ....................95+/-5cc Net Weight : ..................12.8Kg. (approx.) 40mm 65mm 210mm 550mm MAINTENANCE PROCEDURES MAINTAINING OIL LEVEL Important Note: 12mm below valve hole.
- Page 6 LUBRICATION KNOW YOUR JACK • Add lubrication oil to all moving parts Compare these illustrations with your every 3 months. jack before operation and/or oil level maintenance to become familiar with PREVENTING RUST the location of jack components. • Check Piston Rod & Pump Piston every 3 months for any signs of rust or OIL FILLER corrosion.
