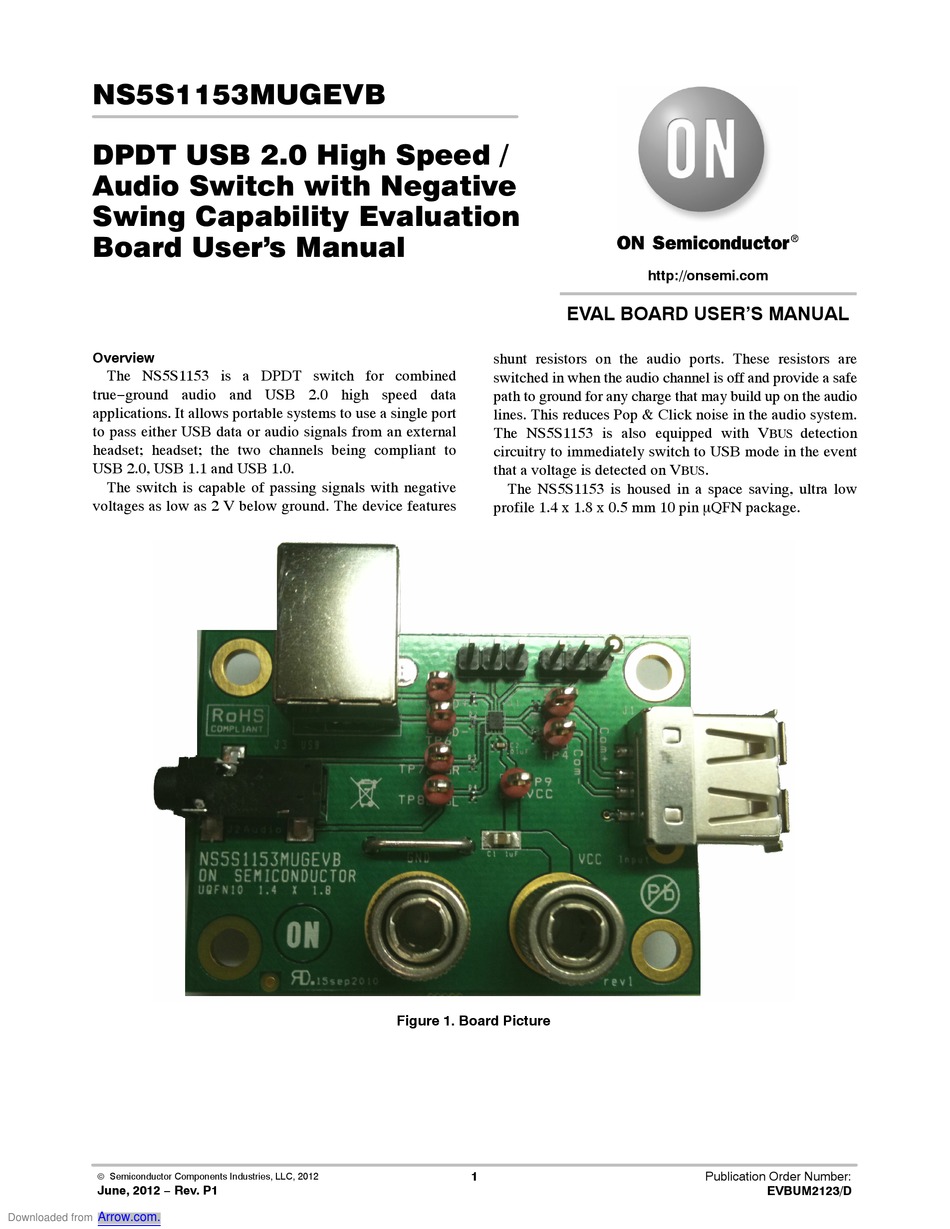

NS5S1153MUGEVB
DPDT USB 2.0 High Speed /
Audio Switch with Negative
Swing Capability Evaluation
Board User's Manual
Overview
The NS5S1153 is a DPDT switch for combined
true−ground audio and USB 2.0 high speed data
applications. It allows portable systems to use a single port
to pass either USB data or audio signals from an external
headset; headset; the two channels being compliant to
USB 2.0, USB 1.1 and USB 1.0.
The switch is capable of passing signals with negative
voltages as low as 2 V below ground. The device features
© Semiconductor Components Industries, LLC, 2012
June, 2012 − Rev. P1
Arrow.com.
Downloaded from
EVAL BOARD USER'S MANUAL
shunt resistors on the audio ports. These resistors are
switched in when the audio channel is off and provide a safe
path to ground for any charge that may build up on the audio
lines. This reduces Pop & Click noise in the audio system.
The NS5S1153 is also equipped with V
circuitry to immediately switch to USB mode in the event
that a voltage is detected on V
The NS5S1153 is housed in a space saving, ultra low
profile 1.4 x 1.8 x 0.5 mm 10 pin mQFN package.

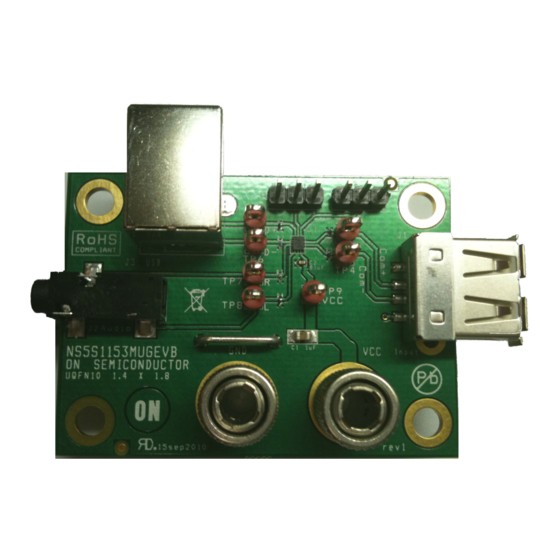

Figure 1. Board Picture
1
http://onsemi.com
detection
BUS
.
BUS
Publication Order Number:
EVBUM2123/D
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ON Semiconductor NS5S1153MUGEVB
Summary of Contents for ON Semiconductor NS5S1153MUGEVB
- Page 1 NS5S1153MUGEVB DPDT USB 2.0 High Speed / Audio Switch with Negative Swing Capability Evaluation Board User's Manual http://onsemi.com EVAL BOARD USER’S MANUAL Overview shunt resistors on the audio ports. These resistors are The NS5S1153 is a DPDT switch for combined switched in when the audio channel is off and provide a safe true−ground audio and USB 2.0 high speed data...
- Page 2 NS5S1153MUGEVB NS5S1153 – BOARD SCHEMATIC Figure 2. Board Schematic Table 1. NS5S1153 – BOARD CONNECTIONS Symbol Description SUPPLY , GND This is the positive and the return connection for power supply. SETUP J4 − ASEL This is the line selection header.
- Page 3 NS5S1153MUGEVB NS5S1153 – TEST PROCEDURE Equipment needed • • Power Supply USB Memory Stick • • Digital Ohm Meter USB Type A to USB Type B • Desktop or Laptop with Windows XP or higher Table 2. BACKGROUND: ASEL AND VBUS TRUTH TABLE L, R D+, D−...
- Page 4 NS5S1153MUGEVB NS5S1153 – COMPONENTS SELECTION Input Capacitor voltage sensitive components that require ultra−low A 0.1 mF X5R ceramic capacitor or larger must bypass capacitance from ESD and transient voltage events. input to the ground. This capacitor should be placed as Excellent clamping capability, low capacitance, low close as possible to this input.
- Page 5 NS5S1153MUGEVB NS5S1153 – EVALUATION BOARD PCB LAYOUT Board Reference: NS5S1153MUGEVB Figure 3. Assembly Layer Figure 4. Top Layer Routing http://onsemi.com Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
- Page 6 NS5S1153MUGEVB Figure 5. Bottom Layer Routing http://onsemi.com Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...
-
