NCS2632DTBGEVB
NCS2632 Evaluation Board
User's Manual
Introduction
This document gives a description of the NCS2632
evaluation board with the bill of materials (BOM), board
schematic, and evaluation setup. The NCS2632 evaluation
board has been designed to help for a quick evaluation of the
NCS2632 audio line driver performance.
This document is to be used with the NCS2632 data sheet.
The data sheet contains full technical details regarding the
NCS2632 specifications and operation.
The board is implemented in 2 metal layers. The layers
have thicknesses of 35 mm (1 oz). The PCB thickness is
1.6 mm (63 mils) with dimensions of 115 × 100 mm
(4.5" × 3.9", respectively).
© Semiconductor Components Industries, LLC, 2013
August, 2013 − Rev. 0
Documents of Reference
•
NCS2632/D Data Sheet
Basic Equipment
•
DC Power Supply
•
Multimeter
•
Waveform Generator
•
Oscilloscope

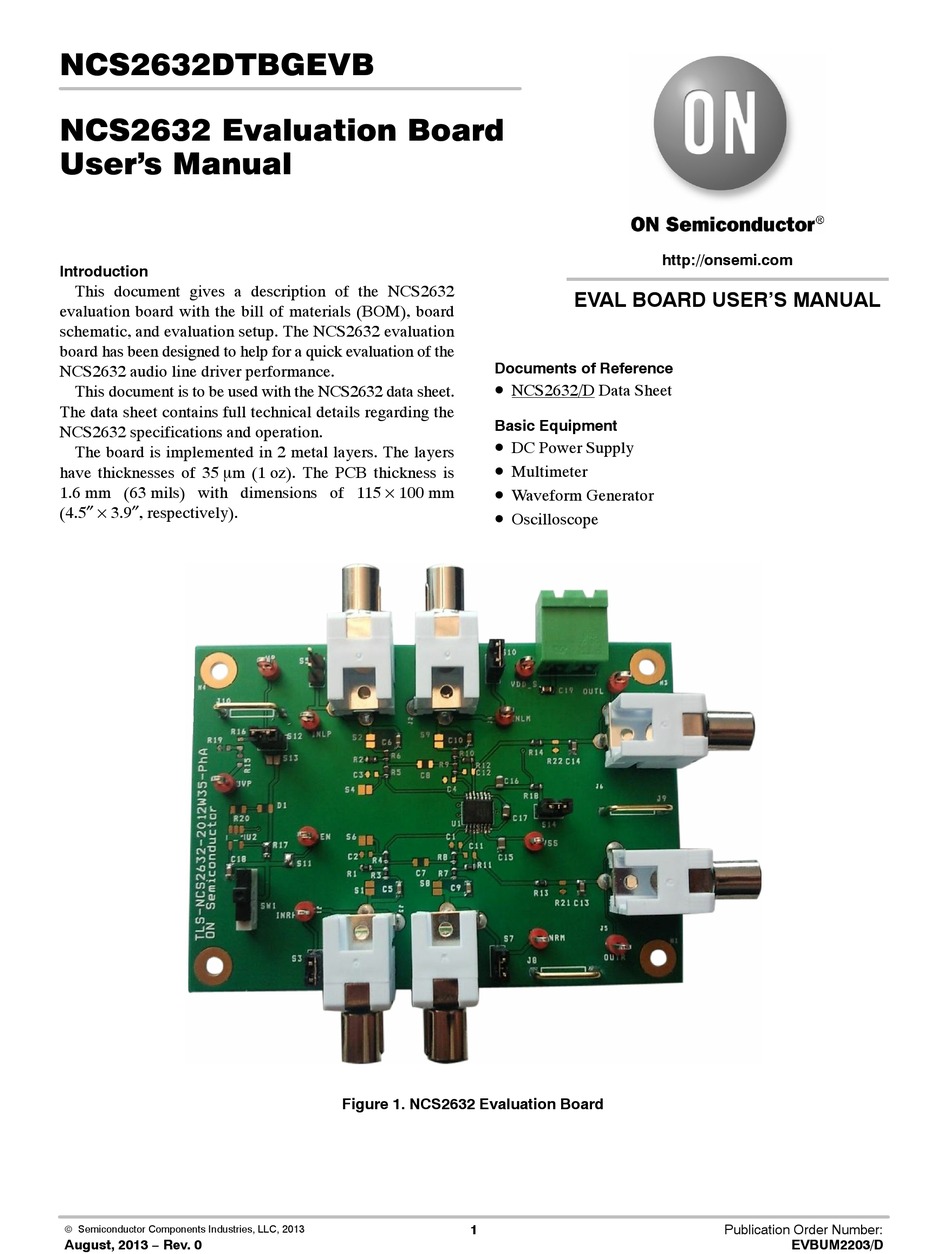

Figure 1. NCS2632 Evaluation Board
1
http://onsemi.com
EVAL BOARD USER'S MANUAL
Publication Order Number:
EVBUM2203/D
Advertisement
Related Manuals for ON Semiconductor NCS2632
Summary of Contents for ON Semiconductor NCS2632
- Page 1 Documents of Reference NCS2632 audio line driver performance. • NCS2632/D Data Sheet This document is to be used with the NCS2632 data sheet. The data sheet contains full technical details regarding the Basic Equipment NCS2632 specifications and operation. •...
-
Page 2: Evaluation Board Overview
NCS2632DTBGEVB EVALUATION BOARD OVERVIEW Figure 2. NCS2632 Evaluation Board Overview http://onsemi.com... - Page 3 NCS2632DTBGEVB QUICK START PROCEDURE WITH DIFFERENTIAL SETUP By default, each channel is set up in a differential 4. Use the voltmeter to measure the VSS pin. It configuration with a gain of 2 V/V. Follow this procedure to should measure near –VDD. quickly get familiar with the evaluation board features.
-
Page 4: Evaluation Board Schematic
NCS2632DTBGEVB EVALUATION BOARD SCHEMATIC Figure 4. NCS2632 Evaluation Board Schematic http://onsemi.com... -
Page 5: Evaluation Board Layout
NCS2632DTBGEVB EVALUATION BOARD LAYOUT The evaluation board uses two copper layers for the top and bottom traces. The top layer is shown in blue while the bottom layer is shown in green. Figure 5. NCS2632 Evaluation Board Layout http://onsemi.com... - Page 6 2-pin Header, Breakaway − − Header 2 100 TE Connectivity 5-826629-0 TP1 to TP11 Test Point Connector − − − Keystone Electronics 5010 NCS2632 Audio Driver − − TSSOP14 ON Semiconductor NCS2632DTBR2G − Do Not Assemble − − − − −...
