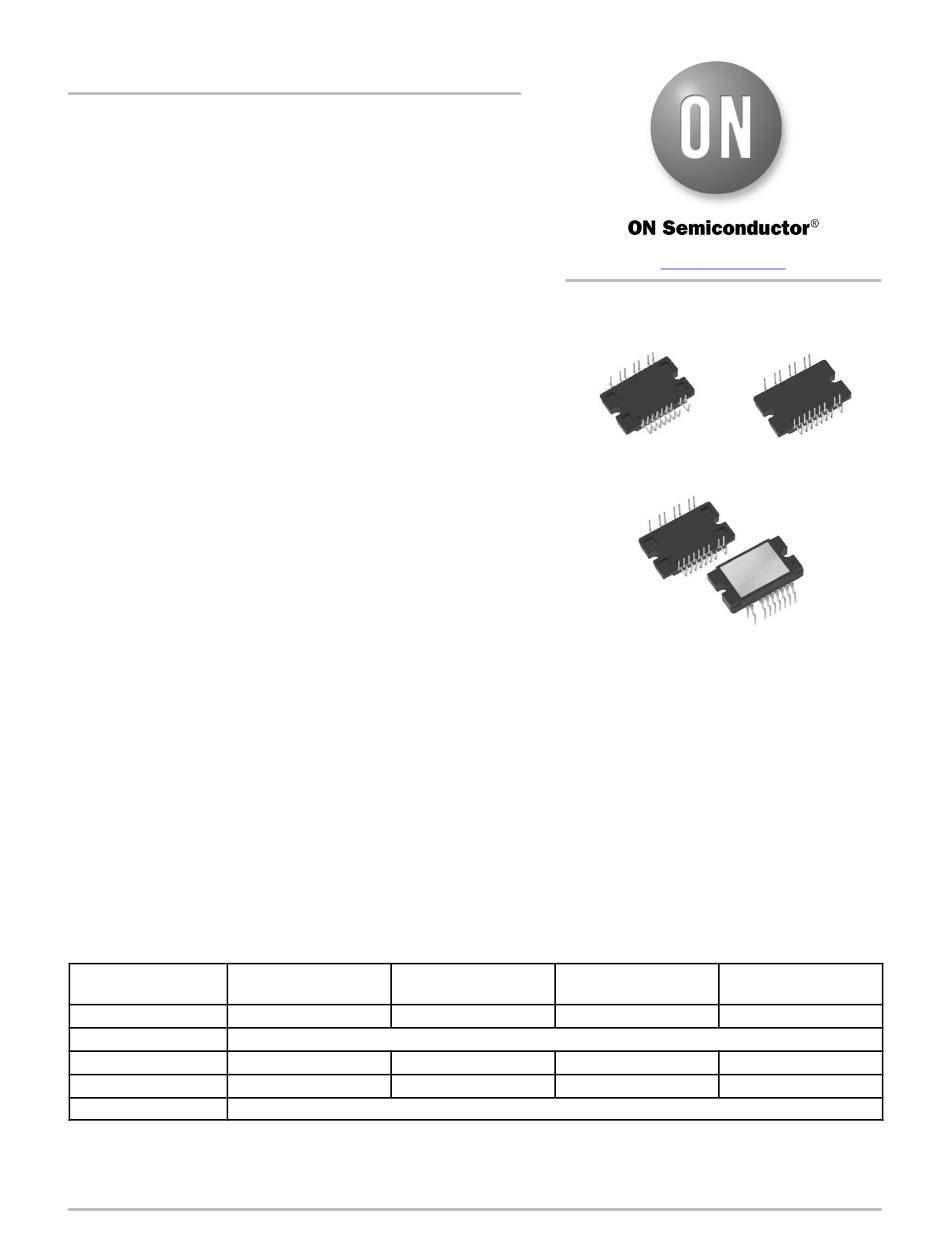

ON Semiconductor COMPACT IPM Series User Manual

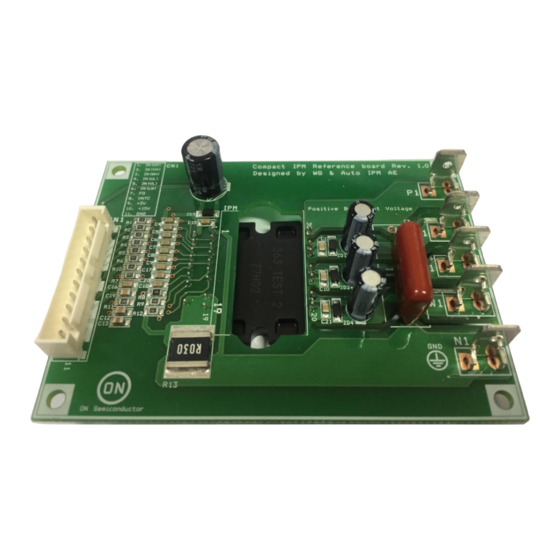

COMPACT IPM SERIES EVB
STK5x4U3xx Series,
NFAxxx60xxx Series
Evaluation Board User's
Manual
Introduction
This user's guide is intended to provide practical guidelines for the
STK5x4U3xx series and NFAxxx60xxx series. From now on, these
series are called the compact IPM series. It should be used in
conjunction with the datasheet and application note
Product Description
The compact IPM series is Intelligent Power Module (IPM) for
3−phase motor drives which contain the main power circuitry and the
supporting control circuitry.
The Compact IPMs are a fully−integrated inverter power stage
consisting of a high−voltage driver, six IGBTs for three−phase
inverter, six fast recovery diodes, three bootstrap diodes and a
thermistor, suitable for driving permanent magnet synchronous
(PMSM) motors, brushless−DC (BLDC) motors and AC
asynchronous motors. The IGBTs are configured in a 3−phase bridge
with separate emitter connections for the lower legs for maximum
flexibility in the choice of control algorithm.
Features
•
Three−phase 3 A ~ 15 A/600 V IGBT Module with Integrated
Drivers
•
Compact IPM 29.6 mm x 18.2 mm, Dual In−line Package
•
Cross−conduction Protection
•
Adjustable Over−current Protection Level
•
Integrated Boot−strap Diodes and Resistors
•
Enable Pin
•
Thermistor
Typical Application
•
Industrial Pumps, Fans and Automation
•
Home Appliances
Table 1. LINE−UP
Package
Voltage (V )
CEMAX
Current, I
C
Peak Current, I
CMAX
Isolation Voltage
1. Under development.
2. DIP−S package is full package and has cavity hole.
3. DIP−S3/6 are DBC version, DIP−S3 has cavity hole, DIP−S6 is no cavity hole.
© Semiconductor Components Industries, LLC, 2014
October, 2018 − Rev. 2
STK5C4U332J−E STK5Q4U352J−E
DIP−S (Note 2) DIP−S3 (Note 3)
3 A
6 A
EVAL BOARD USER'S MANUAL
DIP−S
STK5C4U362J−E
NFAQ1060L33T (Note 1)
DIP−S3/6 (Note 3)
600 V
8 A 10 A
16 A 20 A
2000 V
1
www.onsemi.com
DIP−S6
DIP−S3
NFAQ1560R43T
(Note 1)
DIP−S6 (Note 3)
15 A
30 A
Publication Order Number:
EVBUM2289/D
