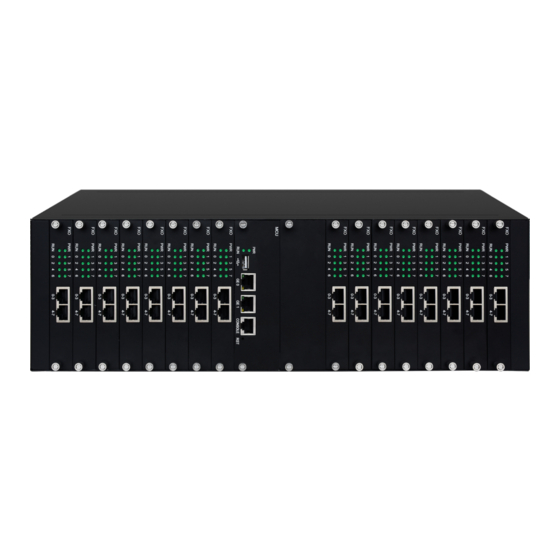

Dinstar DAG3000-128O User Manual

Fxo analog voip gateway

Hide thumbs Also See for DAG3000-128O:

Quick installation manual (14 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual

DAG3000-128O FXO Analog VoIP Gateway

User Manual V1.0

Shenzhen Dinstar Co., Ltd.

Address: Floor 18, Building 7A, Vanke Cloud City Phase 1, Xingke 1st Street, Xili Sub-district, Nanshan District,

Shenzhen.

Postal Code: 518052

Telephone: +86 755 61919966

Fax: +86 755 2645 6659

Email：sales @dinstar.com

Website：www.dinstar.com

Table of Contents

Need help?

Do you have a question about the DAG3000-128O and is the answer not in the manual?

Questions and answers

Summary of Contents for Dinstar DAG3000-128O

Page 1 DAG3000-128O FXO Analog VoIP Gateway User Manual V1.0 Shenzhen Dinstar Co., Ltd. Address: Floor 18, Building 7A, Vanke Cloud City Phase 1, Xingke 1st Street, Xili Sub-district, Nanshan District, Shenzhen. Postal Code: 518052 Telephone: +86 755 61919966 Fax: +86 755 2645 6659 Email：sales @dinstar.com...
Page 2 Preface Welcome Thanks for choosing the DAG3000-128O Analog Gateway for VoIP! We hope you will make full use of this rich-feature FXO VoIP Gateway. Contact us if you need any technical support: +86-755-61919966. About This Manual This manual provides information about the introduction of the analog VoIP gateway, and about how to install, configure or use it.
Page 3: Table Of Contents
1 Product Introduction ........................4 1.1 Overview ................................4 1.2 Application Scenario ............................4 1.3 Product Appearance ............................5 1.3.1 Appearance of DAG3000-128O ....................... 5 1.3.2 Ports and Connector ..........................5 1.4 Features & Functions ............................7 2 Quick Installation .......................... 11 2.1 Installation Attentions ............................11 2.2 RJ45 Wire Sequence ............................
Page 4 4.11.4 IP à Tel Routing ..........................59 4.11.5 Tel à IP/Tel Routing ..........................60 4.11.6 Call Limit .............................. 61 4.12 Manipulation ..............................62 4.12.1 IP à Tel Called ............................ 62 4.12.2 Tel à IP/Tel Caller ..........................64 DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 5 4.15.3 Data Restore ............................80 4.15.4 FXO Test ............................... 80 4.15.5 Ping Test ............................... 82 4.15.6 Tracert Test ............................83 4.15.7 Network Capture ..........................84 4.15.8 Factory Reset ............................86 4.15.9 Device Restart ............................86 5 Glossary ............................88 DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 6: Product Introduction
Each board has 8 FXO ports and the gateway supports 128 FXO ports at maximum. DAG3000-128O supports the standard SIP protocol and it's compatible with leading IMS/NGN platforms and SIP-based IP telephony systems. Which is ideally suited for small and medium businesses, call centers and multi-location environments that need VoIP services.
Page 7: Product Appearance
2 Quick Installation 1.3 Product Appearance 1.3.1 Appearance of DAG3000-128O Front View: Back View: 1.3.2 Ports and Connector DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 8 2 Quick Installation The description of interfaces of DAG3000-128O Port Name Connector Description Power Jack Power Jack To connect 100-240V AC 50-60HZ power supply Power Switch Power Switch Turn on or turn off power supply LAN Port To connect to the IP network over a DSL modem or...
Page 9: Features & Functions
Range from 8 to 128 FXO Capacity Range from 8 to 128 FXO Support 16 user board slots User Board 2* RJ45 connectors with 8 FXO MCU Board 1*RS232, 115200bps 2*10/100/1000Mbps, RJ45 1* USB 2.0 DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 10 Protocol: SIP v2.0 (UDP/TCP),RFC3261,SDP,RTP(RFC2833), RFC3262,3263,3264,3265, 3515,2976,3311 SIP TLS/SRTP RTP/RTCP, RFC2198, 1889 RFC4028 Session Timer RFC3266 IPv6 in SDP RFC2806 TEL URI RFC3581 NAT,rport Outbound Proxy DNS SRV/ A Query/NATPR Query SIP Trunk Early Media/Early Answer DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 11 Power Consumption:60W(Typical) Operating Temperature:0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity:10%-90% Non-Condensing Dimensions(W/D/H): 440*300*135mm Unit Weight: 9.3kg Ø Maintenance SNMP v1/v2/v3 TR069 Auto Provisioning Web/Telnet Configuration Backup/Restore Firmware Upgrade via Web DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 13: Quick Installation
ﬂat surface or a cabinet. 2.2 RJ45 Wire Sequence DAG3000-128O is equipped with RJ45 interface as FXO port. The internal wire sequence of RJ45 cable is shown as follows: DAG3000-128O User Manual...
Page 14: Installation Steps
DAG3000 , and then connect the other end to the grounding bar of the shelf. Connect network cable to the GE0/GE1 port; Connect PSTN line to the FXO port(s). DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 15: Basic Operation
3.2 Description of Feature Codes DAG3000-128O provides convenient telephone functions. Connect a telephone to the FXO port and dial a specific feature code, and you can query corresponding information. Code...
Page 16 Dial *200# to access voicemail Switch between incoming calls, If not in session, flash/hook will Flash/Hook switch a new channel for new call. Note ： Some of the above feature codes will be realized on the available platform. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 17: Send Or Receive Fax
PSTN line. After hearing a dialing tone or a voice prompt, dial *166*000000#, and you will hear “successful setting”, then hang up the phone and the gateway is reset to factory defaults. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 18: Ip Address Configuration
*158#. If the gateway uses PPPoE method to get IP address，the IP address needs to be configures through web browser. The telephone will play voice prompt “setting successfully” if the step is Note ： correct. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 19: Configurations On Web Interface
Take windows 7 as an example, change the IP address of the local computer to 192.168.11.10: Secondly, check the connectivity between the PC and the device. Click Start à Run of PC and enter cmd to execute ‘ping 192.168.11.1’ to check whether the IP address of the gateway runs normally. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 20: Log In Web Interface
Security -> Password Modification interface. 4.2 Navigation Tree The web management system of the DAG3000-128O VoIP device consists of the navigation tree and detailed configuration interfaces. Choose a node of the navigation tree to enter into a detailed configuration interface.
Page 21: Status & Statistics
Log in the Web interface, and then click Status & Statistics à System Information, and the following page will be displayed. On the page, you can view the information of device ID, MAC address, network mode, IP addresses, version information, server register status and so DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 23 The running time of the DAG3000 device since it is powered on. System Uptime Succeed: the DAG3000 device is sync to NTP server successfully; NTP Status Failed: the DAG3000 device fails to be sync to NTP server. Then you DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 24: Port Status
Port : An FXO port Port group: It is composed of several ports. In some cases, multiple ports can be registered with the same account and can be used for incoming and outgoing calls using the same phone number. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 25: Current Call
On the Status & Statistics à RTP Session page, you can view the real-time RTP session information, including: port, payload type, packet period, local port, peer IP, peer port, sent packets, received packets, lost packets, jitter and duration. Figure 4-3-4 Real-time RTP Session Information DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 26: Cdr
4.3.7 Call Limit Info If you configure call limit on the "Call & Routing -> Call Limit" for the port, you can check the remaining call duration and number of calls of the configured port. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 27: Quick Setup Wizard
SIP server and SIP port in the Quick Setup Wizard interface. Basically, after these three steps, user is able to make voice call via the DAG3000 device. For the configurations of network, SIP server and SIP port, please refer to 4.5 , 4.6 and 4.9 . DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 28: Network
The management IP address and the network IP address cannot be in the same network segment. After the configuration is complete, you need to restart the device to make the configuration take effect. Figure 4-5-1 Network Setting DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 29: Vlan（Virtual Local Area Network
Data/Voice/Management selected, it means data messages are subject to the following network setting of this VLAN. Set an ID to identify a VLAN based on 802.1Q protocol. Range is VLAN ID(0-4095) from 0 to 4095. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 30: Dhcp Option
Option 121: to obtain classless static route. DAG3000 will add these static routes to the static route table after it fetches them from DHCP server. Figure 4-5-3 Configure DHCP Option Network Interface: choose which VLAN to send request to DHCP server (or to receive information from DHCP server). DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 31: Qos
When IPv4&IPv6 is selected as the IP protocol in the local network, information such as IPv6 address, subnet mask, default gateway, and primary/secondary DNS servers can be configured. The IPv6 network configuration interface is shown in Figure 4-5-6: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 32: Sip Server
SIP server is the main component of VoIP network and is responsible for establishing all SIP calls. SIP server is also called SIP proxy server or register server. Both IPPBX and softswitch can act as the role of SIP server. Figure 4-6 Configure SIP Server Information DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 33 Service port of outbound proxy server. It is 5060 by default. Retry Interval when The retry interval after a registration fails. Default: 30s Registration failed Registration times per The maximum number of registrations in a second. 0 means no DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 34: Ip Profile
IP profile can be used. When the device needs to register to multiple SIP servers, click the "Add" button to create a new IP profile, as shown in the figure below: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 36: Tel Profile
Under normal circumstances, the Tel profile does not need to be configured, and the default Tel strategy can be used. When you need to set different line parameters, business modes, or fax modes for different ports, you can add Tel profile through the "Add" button. As shown below: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 37: Port
Parameters of the SIP account include port number, whether to register, primary display name, primary SIP user ID, primary Authenticate ID, primary Authenticate password, off-hook auto-dial number, caller ID and so on. Figure 4-9 Configure SIP Account for Port Registration DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 38 How long the auto-dial number is prolonged. If it is set as 3s, the Auto-dial Delay Time auto-dial number is dialed after 3 seconds pass. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 39: Advanced
Maximum number of call out within the configured time 4.10 Advanced 4.10.1 Line Parameter On the Advanced à line page, you can configure FXO parameters which include for call progress tone, auto gain control, fax parameters and so on. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 40 The rate of sending or receiving fax, default value is 14400bps. Tone Detection by Fax sound is detected by caller, callee or automatically. Switch into Fax Mode If this parameter is enabled, the system will switch into fax DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 41: Fxo Parameter
CNG or CED is detected. 4.10.2 FXO Parameter On the Advanced à FXO Parameter page, you can configure FXO parameters which include incoming/outgoing call from PSTN, DC impedance, busy tone detected and so on. Figure 4-10-2 Configure FXO Parameters DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 42 FXO port, the FXO first off-hook , and then initiates a call request to the IP. Allow Call to SIP Server Allow the port to initiate a call request without registering to the without Registration SIP Server. At this time, the device works in point-to-point mode. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 43 10s. If the time is exceeded, the called is considered Off-hook to have answered. This parameter is mostly used when there is no reverse polarity on the PSTN. Dial Mode FXO gateway calls the PSTN and supports 3 dialing methods: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 44: Media Parameter
The energy threshold of busy tone from Off to On. Threshold Acim The value of AC impedance Hybrid The value of hybrid balance parameters 4.10.3 Media Parameter Media parameters mainly include RTP start port, DTMF parameter, preferred Vocoder, etc. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 45 Local payload value, default value is 101 DTMF Gain Default value is 0 DB The interval for sending DTMF signal. The default value is DTMF Send Cadence 200ms. Event of Flash If this parameter is enabled, the DAG3000 device will send DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 46: Service Parameter
Timeout for This parameter determines how long the phone rings when answer(Incoming call) there are incoming calls No RTP Detected If this parameter is enabled, the situation will be detected DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 47 If it exceeds the set time, the call will hang up directly (default Limit) 0 means no limit) The way to query the domain supported: A query, SRV query, Domain Query Type and NAPTR query DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 48 Wildcard Matches any digit of 0 to 9 Modifiers Matches 0 or more times of the preceding element Modifiers Matches 0 or 1 times of the preceding element DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 49: Sip Compatibility
Figure 4-10-5.1 Configure SIP Parameters Table 4.10.5-1 Explanation of SIP Parameters Parameter Explanation Whether to enable RFC3407 support. If this parameter is RFC3407 Support enabled, the device will support RFC3407 which defines the SDP capability of backward compatibility. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 50 Choose P-Asserted-Identity header or From Header Report SDP Whatever If this parameter is enabled, SDP will be reported anytime Choose ‘18x Response with SDP’, ‘Last 18x Response’ or 18x Response Preferred ‘Local Ring Tone Only’ DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 51 The minimum interval for refreshing session; default value is 1800s. Min-SE The Min-SE header field indicates the minimum value for the session interval. Session Refresh Method The method to refresh session; default value is INVITE. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 52 If enabled, when the heartbeat times out, all calls will be Heatbeat Timeout disconnected User-Agent Header Customize User-Agent header field value Response code when Fax Customize the SIP response code when fax re-invite was Reinvite was Rejected rejected DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 53: Nat Parameter
Speed dial is a function that is available on telephones which provides an easy method of calling a telephone number by pressing fewer digits on the keypad. The tool enables one to save, organize, and have easy and quick access to regularly dialed numbers. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 55 *50#, forbid call waiting function If the call transfer to 801, first hook flash and then dial Blind Transfer the * 87 * 801# Call Forward Unconditional *72*+ phone number#, transfer the call from the phone DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 56: System Parameter
*200#, visit voice mail box 4.10.9 System Parameter System parameters include NTP, daylight saving time, daily reboot time, web parameter, telnet parameter and remote management. NTP (Network Time Protocol ） is a computer time synchronization protocol. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 57 Secondary NTP server The service port of secondary NTP server; Default port is 123 port The interval to synchronize the time of the DAG3000-128O. SYN Interval Default value is 3600s. The time zone of the device; Default configuration is United Time Zone States central time, Chicago.
Page 58: Call & Routing
Parameters of port group include registration, primary display name, primary SIP user id, primary authentication ID and password, secondary display name, secondary SIP user id, secondary authentication ID and password, off-hook auto dial, auto dial delay time, port select, etc. Figure 4-211-1 Add Port Group DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 59 If the minimum number was selected last time, the next selected number is the maximum number. The sequence moves in cycles like this. Ÿ Group ring: all ports ring at the same time DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 60: Ip Trunk
Whether to enable the ‘Heartbeat’ function for the IP trunk. Default value Heartbeat is ‘not enable’. If heartbeat is enabled, the device will send “OPTION” to the peer device. 4.11.3 Routing Parameter Routing parameter determines a call is routed before or after manipulation. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 61: Ip À Tel Routing
IP àTel routing. Figure 4-11-4 Add IP àTel Route Table 4.11.4 Parameter Explanation of IP àTel Routes Parameter Explanation Index Index of the IP àTel routing; range is from 0 to127; 0 is the highest priority. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 62: Tel À Ip/Tel Routing
Table 4.11.5 Explanation of Tel àIP/Tel Route Parameter Explanation The index of this Tel àIP/Tel routing; range is from 0 to 127. Each Index index cannot be used repeatedly. Routing priority: 0 is the highest priority. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 63: Call Limit
008675526456659, the called prefix can be 0086755 or 00. ‘any’ means the prefix matches any called number. Calls to Choose calls are routed to a port, port group, IP trunk or SIP server 4.11.6 Call Limit DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 64: Manipulation
4.12.1 IP à Tel Called On the IP à Tel Called page, you can set rules for manipulating the called number of IP à Tel calls. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 65 Calls to Determine the call is routed to a port or a port group. Stripped Digits The number of digits which are lessened from the left of the called from Left number DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 66: Tel À Ip/Tel Caller
Index cannot be used repeatedly. 0 is the highest priority Description Description of this manipulation; it is used to identify this manipulation. Calls From Determine the calls come from a port or a port group. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 67: Tel À Ip/Tel Called
4.12.3 Tel à IP/Tel Called On the Tel à IP/Tel Called page, you can set rules for manipulating the called number of Tel à IP/Tel calls. Figure 4-12-3 Add Tel à IP/Tel Called Number Manipulation DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 68 The number of digits which are lessened from the right of the called Right number Prefix to Add The prefix added to the called number after its digits are lessened. Suffix to Add The suffix added to the called number after its digits are lessened. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 69: Management
Choose whether to enable ‘Periodic Inform’; if it is enabled, ACS will connect Periodic Inform to CPE every 30 seconds (if the interval is set as 30 seconds). The interval set for periodic connection between ACS and CPE. Periodic Inform DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 70: Snmp
Three significant versions of SNMP have been released. SNMPv1 is the original version of the protocol. More recent versions, SNMPv2c and SNMPv3, feature improvements in performance, flexibility and security. Figure 4-13-2 Configure SNMP Parameters DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 71 Group: fill in a group name which is used to identify the group; it’s a character string. Group Community: fill in a community which means this community has joined Configuration in the group. In the following, access permission of read, write and notify is configured for each group. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 72: Syslog
It also provides a means to notify administrators of problems or performance. Syslog levels include: EMERG, ALERT, CRIT, ERROR, WARNING, NOTICE, INFO and DEBUG. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 73: Provision
Provision Provision is used to make the DAG3000 device automatically upgrade with the latest firmware stored on an http server, an ftp server or a tftp server. Please refer to the Instruction for Using Provision. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 74: Cloud Server
You can register the DAG3000 device to cloud server, and then the device can be managed by the cloud server. Figure 4-13-5 Configure Cloud Server Table 4.13.5 Explanation of Parameters for Cloud Server Parameter Explanation DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 75: User Manage
Figure 4-13-7 Configure Remote Server 4.13.8 Record Parameter After configuring the record server, you can upload the call voice of the FXO port of the device to the record server. The record configuration page is shown in Figure 4-13-8: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 76: Radius Parameter
After the Radius server is configured, you can log into the gateway after successful Radius authentication. The Radius server configuration page is shown in Figure 4-13-9: Table 4.13.9 Explanation of Parameters for Radius Config Parameter Explanation Enable or disable Radius Radius DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 77: Action Url
‘file.php’ means the script that will process this request, and ‘$mac’ means the parameter carried in the request when this request is sent out. Heartbeat: heartbeat packets are sent to URL by the DAG3000 device, used to examine the connection between the DAG3000 device and HTTP/HTTP server. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 78: Sip Pnp
NMS is a public/private cloud-based device management platform. After users register with the NMS, you can perform batch upgrades, status monitoring, and view alarm information for the devices. To apply for cloud management server(NMS) , please contact your local distributor. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 79: Security
ACL (Access Control List) for Telnet is used to configure IP addresses that are allowed to access the Telnet Interface of the DAG3000 device. The IP address list can’t be null once ACL is enabled. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 80: Passwords
Telnet interface of the DAG3000 device on this page. Note： Both the username and password of Web and Telnet are ‘admin’ and ‘admin’ by default. It is advised to modify them for security consideration. Figure 4-14-3 Modify Username and Password DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 81: Tools
Step 5. Reboot the device on the Tools à Device Restart page. 4.15.2 Data Backup On the Tools à Data Backup page, you can download and backup configuration data, device status and summary messages on local computer. Figure 4-15-2 Backup Data DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 82: Data Restore
Figure 4-15-4.1 Impedance Test Table 4.15.4-1 Explanation of Parameters for Impedance Test Parameter Explanation Choose a type to test Test Type Port Choose a port to test DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 83 Please do not leave this page before the test is completed to avoid errors. Auto-detect Busy Tone Busy tone detection can only select the online port . The testing steps are as follows: Figure 4-15-4.2 Auto-detect Busy Tone DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 84: Ping Test
Please save the result after finishing, otherwise you can clear the results and retest. 4.15.5 Ping Test Ping is used to examine whether a network works normally through sending test packets and calculating response time. Instructions for using Ping: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 85: Tracert Test
Tracert is short for traceroute, used to track a route from one IP address to another. Instruction for using Traceroute: Enter the IP address or domain name of a destination device in the input box of Traceroute, and then click Start. Figure 4-15-6 Execute Tracert Test DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 86: Network Capture
Save the file to local computer The captured package is named ‘capture(x).pcap’, among which x is the serial number of the capturing and will be added 1 in next time. The sample of PCM capture as below: DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 87 1 in next time. The sample of syslog capture as below: DSP Capture: DSP capture helps to analyze voice stream inside DSP chipset. The DSP chipset will handle RTP from IP network as well as voice stream from analog phone. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 88: Factory Reset
Figure 4-15-8 Reset Device to Factory Default Setting 4.15.9 Device Restart For some configurations or changes to the DAG3000 device, you are required to restart the device for the configurations or changes to take effect. DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
Page 90: Glossary
VLAN Virtual Local Area Network Address Resolution Protocol Caller Identity Do NOT Disturb DTMF Dual Tone Multi Frequency Network Time Protocol Demilitarized Zone STUN Simple Traversal of UDP over NAT PSTN Public Switched Telephone Network DAG3000-128O User Manual Copyright©2011-2021 Dinstar...
