Washer-extractor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Washer-Extractor
Refer to Page 7 for Model Numbers
PHM1568R_SVG
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
F8552201R2
www.alliancelaundry.com
March 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UWH045K1L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alliance Laundry Systems UWH045K1L

Summary of Contents for Alliance Laundry Systems UWH045K1L

  • Page 1 Washer-Extractor Refer to Page 7 for Model Numbers PHM1568R_SVG Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) F8552201R2 www.alliancelaundry.com March 2017...
  • Page 3 Common sense, caution, and care must be exer- cised when installing, maintaining, or operating the machine. Any problems or conditions not understood should be reported to the dealer, distributor, service agent or the manufacturer. © Copyright, Alliance Laundry Systems LLC - F8552201R2 DO NOT COPY or TRANSMIT...

  • Page 4: Table Of Contents

    Entering the Manual Mode..............14 © Copyright 2017, Alliance Laundry Systems LLC All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher.
  • Page 5 How to Enter Diagnostic Testing Feature............51 How to Start Tests..................51 How to Exit Diagnostic Testing Feature............51 Diagnostic Test Descriptions................53 Error Codes..................58 Rapid Advance Feature.................61 © Copyright, Alliance Laundry Systems LLC - F8552201R2 DO NOT COPY or TRANSMIT...
  • Page 6 How to Use Rapid Advance................61 How to Exit Rapid Advance Feature............... 61 Communications Mode................. 62 Infra-red Communications................62 Default Cycles..................63 © Copyright, Alliance Laundry Systems LLC - F8552201R2 DO NOT COPY or TRANSMIT...

  • Page 7: Model Identification

    UWU085K1M UWU085K2M UWH085K2M UWL085K2M UWN085K2M 105 Pound [47.6 UWH105K21 UWL105K1M UWN105K1M UWU105K1M UWU105K2M UWH105K2M UWL105K2M UWN105K2M 130 Pound [59 UWH130K1M UWL130K1M UWN130K1M UWU130K1M UWU130K2M UWH130K2M UWL130K2M UWN130K2M © Copyright, Alliance Laundry Systems LLC - F8552201R2 DO NOT COPY or TRANSMIT...

  • Page 8: Introduction

    For technical assistance, contact your local distributor or contact: Alliance Laundry Systems Shepard Street P.O. Box 990 Ripon, WI 54971-0990 U.S.A. www.alliancelaundry.com Phone: +1 (920) 748-3121 Ripon, Wisconsin © Copyright, Alliance Laundry Systems LLC - F8552201R2 DO NOT COPY or TRANSMIT...

  • Page 9: Preliminary Information

    This control is an advanced, programmable computer that lets the the instructions included with the external device software. Con- owner control most machine features by pressing a sequence of tact Alliance Laundry Systems for a list of approved PDAs and keypads. Refer to Figure 2 . other external devices.

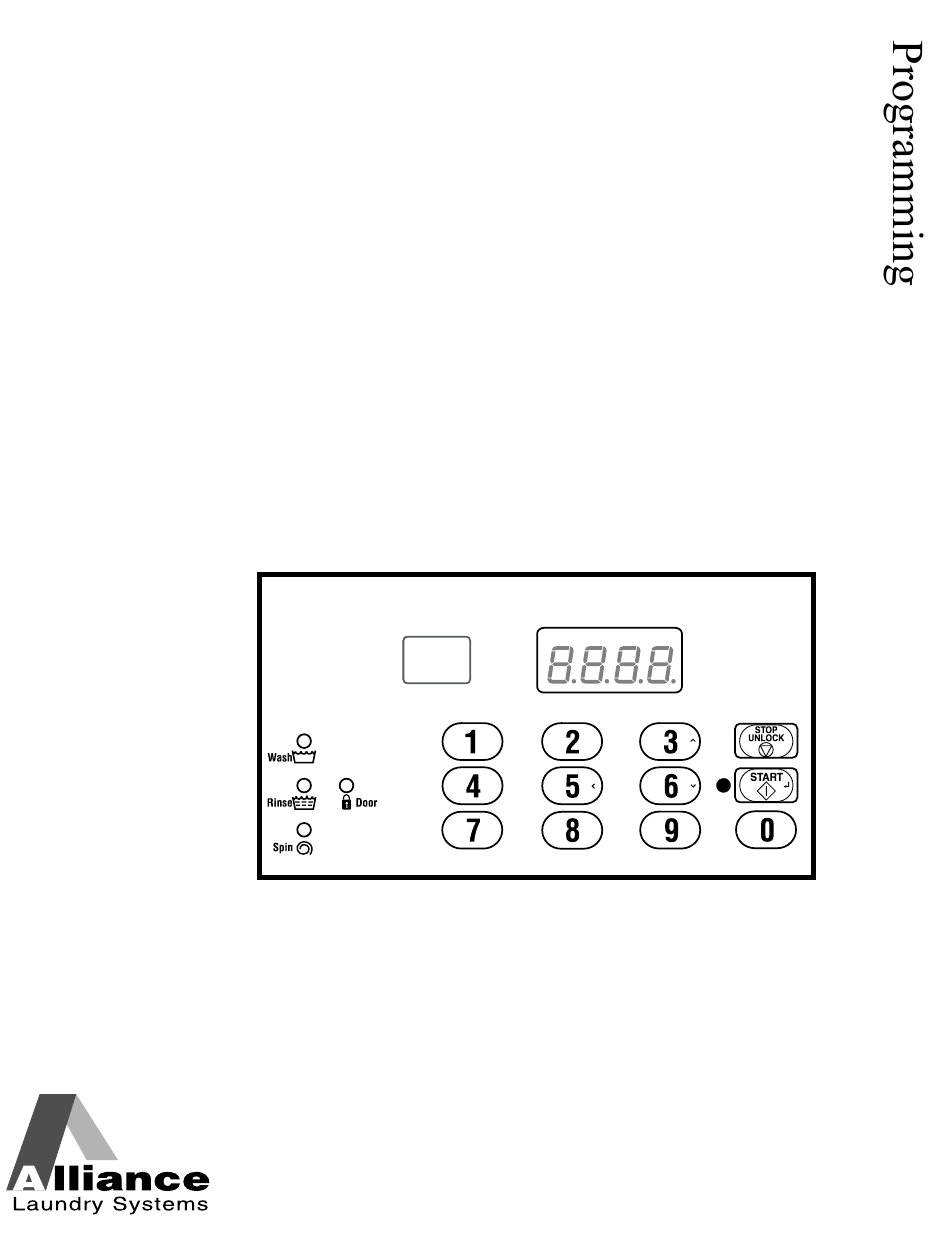

  • Page 10: Control Identification
