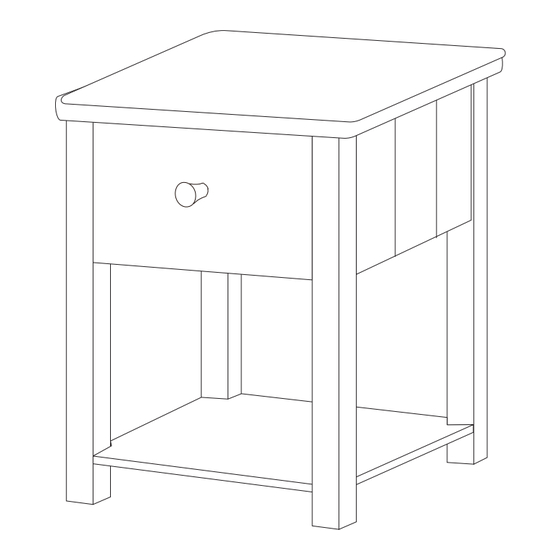

Lulworth Bedside Table
Assembly Difficulty
easy - medium
- hard
one-person job
Thank you for shopping with GLTC, we hope you enjoy
having this product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make assembling
this item as quick and painless as possible.

A few important pointers before you start:

Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll
find details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
V1
29/06/2021
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lulworth and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading Lulworth

  • Page 1 We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Lulworth Bedside Table A few important pointers before you start: •...
  • Page 2 Safety Warnings: Customer Service: • PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. • If you find that any components are missing or damaged, please do not begin assembly and do not use the item. Please contact GLTC • Adult assembly required. Customer Services on 0344 848 6000 immediately.
  • Page 3 Component Check List Component Check List Cam Dowels Cam Locks 1x Top Panel 1x Side Panel LH Flat Runner 1x RH Flat Runner 1x Side Panel 1x Shelf Panel 1x L-Shaped Runner 1x L-Shaped Runner 1x Handle Screw (12mm) 1x Back Panel 1x Drawer Side Panel 4x Screw 1x Flat-ended Screw...
  • Page 4 STEP 2: Take side panel (B) and attach flat runner (#4) to the panel using 3x screws Hardware for Step 1: (#7). Note: Position the runner with the wheel at the front of the panel (away from the hardware) and with the wheel closest to the legs. Align the holes on the runner 8x #1 Cam Dowels shown in the close up with the drill holes in the panel.
  • Page 5 STEP 3: STEP 4: Hardware for Step 4: Hardware for Step 3: Take side panel (B) and orientate so it is on its side as Now align side panel (C) to join with panels (D & E) using shown. the cam dowel hardware. Push into position and insert 4x cam locks (#2) into the large drill holes on panels (D &...
  • Page 6 STEP 5: STEP 7: Hardware for Step 5: Hardware for Step 7: Take top panel (A) and insert 6x cam dowels (#1) Take drawer front panel (H) and insert 4x cam into the drill holes. dowels (#1) into the drill holes as shown. 6x #1 Cam Dowels 4x #1 Cam Dowels STEP 8:...
  • Page 7 Now attach drawer handle (#8) to the drawer using 1x flat ended screw (#9). 1x #8 Handle 1x #9 Flat-Ended Screw Copyright© 2021 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
