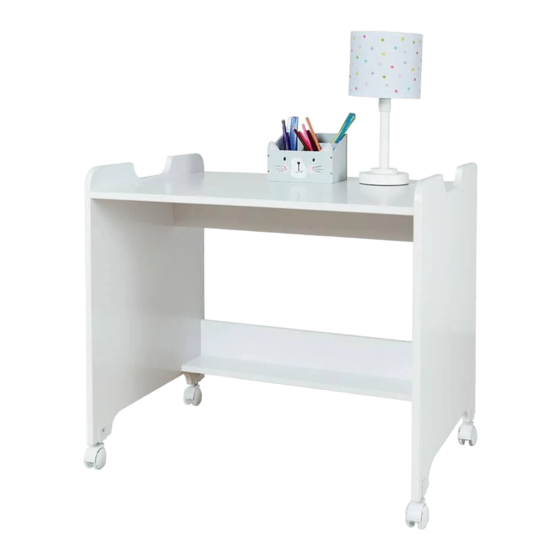

Paddington Desk
L5485
Assembly Difficulty
one-person job
easy - medium
- hard
Thank you for shopping with GLTC, we hope you enjoy having this
product in your home.
We know assembling furniture, toys or accessories is not everyone's
favourite way to spend their time, so we've tried to make
assembling this item as quick and painless as possible.

A few important pointers before you start:

Please read the instructions right through before you start, and
check that all the components have been included in the pack;
we find separating all the hardware into piles makes it easier to
be sure that everything is present and correct.
Make sure you have the right tools. Allen keys are provided
if required, but screw drivers and other tools are not. You'll find
details of the tools you need at the beginning of the
instructions.
It's a good idea to build the unit in the room where you are
going to be using it, to avoid the need to move it after it's been
assembled.
Do not throw away any packing materials until assembly is
complete, just in case you accidentally discard smaller parts or
hardware.
V1
07/12/2022
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Paddington L5485 and is the answer not in the manual?

Questions and answers

Summary of Contents for Great Little Trading Paddington L5485

  • Page 1 Thank you for shopping with GLTC, we hope you enjoy having this product in your home. We know assembling furniture, toys or accessories is not everyone’s favourite way to spend their time, so we’ve tried to make assembling this item as quick and painless as possible. Paddington Desk A few important pointers before you start: L5485...
  • Page 2 Product Care: Safety Warnings: • DO NOT expose the item to extremes of heat and humidity. • Assembly to be carried out by a competent adult only. • Children should be kept away from the product during assembly to • Wipe clean using a soft damp cloth followed by a dry cloth.
  • Page 3 Component Check List Component Check List 20x Cam Dowels 12x Wooden Dowels 1x Side Panel 1x Side Panel 4x Wheels 20x Cam Locks 4x Wheel Screws 3x Bolts 1x Desk Top Support Bar 1x Desk Top 8x Large Cover Caps (do not use if children under 3 3x Plastic Cover Caps (do not use if children under 3 are present in the house)
  • Page 4 Hardware for Step 1: Hardware for Step 2: 12x #1 Wooden Dowels 3x #6 Bolts STEP 2: Take panels E & F and position with the larger drill holes on both panels facing outwards. Join the panels together with 3x bolts (#6). Use the Allen key provided to tighten the bolts fully.
  • Page 5 Hardware for Step 4: STEP 5: How take remaining side panel A and position over the desk aligning all the hardware with the corresponding holes on the receiving panels. Push into place 10x #3 Cam Locks ensuring all points are connected. Now insert 10x cam locks (#3) into the holes on the upper ends of panels C, D, E &...
  • Page 6 Fix the wheels in place using 4x screws (#5). Ensure they are fully tightened and the wheels do not move. Copyright© 2020 G.L.T.C. Ltd. All rights reserved. Great Little Trading Company and GLTC are registered trade marks of G.L.T.C. Limited.
