Carestream DENTAL CS 8200 3D User Manual

Scan ceph
Hide thumbs Also See for CS 8200 3D:
Table of Contents

Advertisement

Quick Links

User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS 8200 3D and is the answer not in the manual?

Questions and answers

Ellisa HInton RDH
May 1, 2025

What is the procedure to take extraoral bitewing with this machine?

0
1 comments:
Mr. Anderson
May 16, 2025

To take an extraoral bitewing with the Carestream CS 8200 3D, follow these steps:

1. Position the patient using the bite block:
- Place the bite block with the ML or MR indication on the corresponding side in the mouth.
- Ask the patient to bite on the bite block and ensure their upper incisors are before the incisive stopper.

2. Adjust patient positioning:
- Close the temple supports using the adjustment knob.
- Align the vertical position of the head using both hands.
- Instruct the patient to close their eyes, swallow, remain still, breathe through the nose, and place the tongue on the palate.

3. Launch the X-ray:
- Exit the X-ray room and close the door.
- Monitor the patient via direct view or screen.
- Press and hold the exposure button on the remote control until the on-screen message says “Release Switch.”
- During emission, a warning sound is heard, and indicators change color.

The image appears on the workstation screen after the acquisition is complete.

This answer is automatically generated

0
Classic Smiles
June 16, 2025

How do I delete a Pano that was taken in the wrong chart?

0

Related Manuals for Carestream DENTAL CS 8200 3D

Summary of Contents for Carestream DENTAL CS 8200 3D

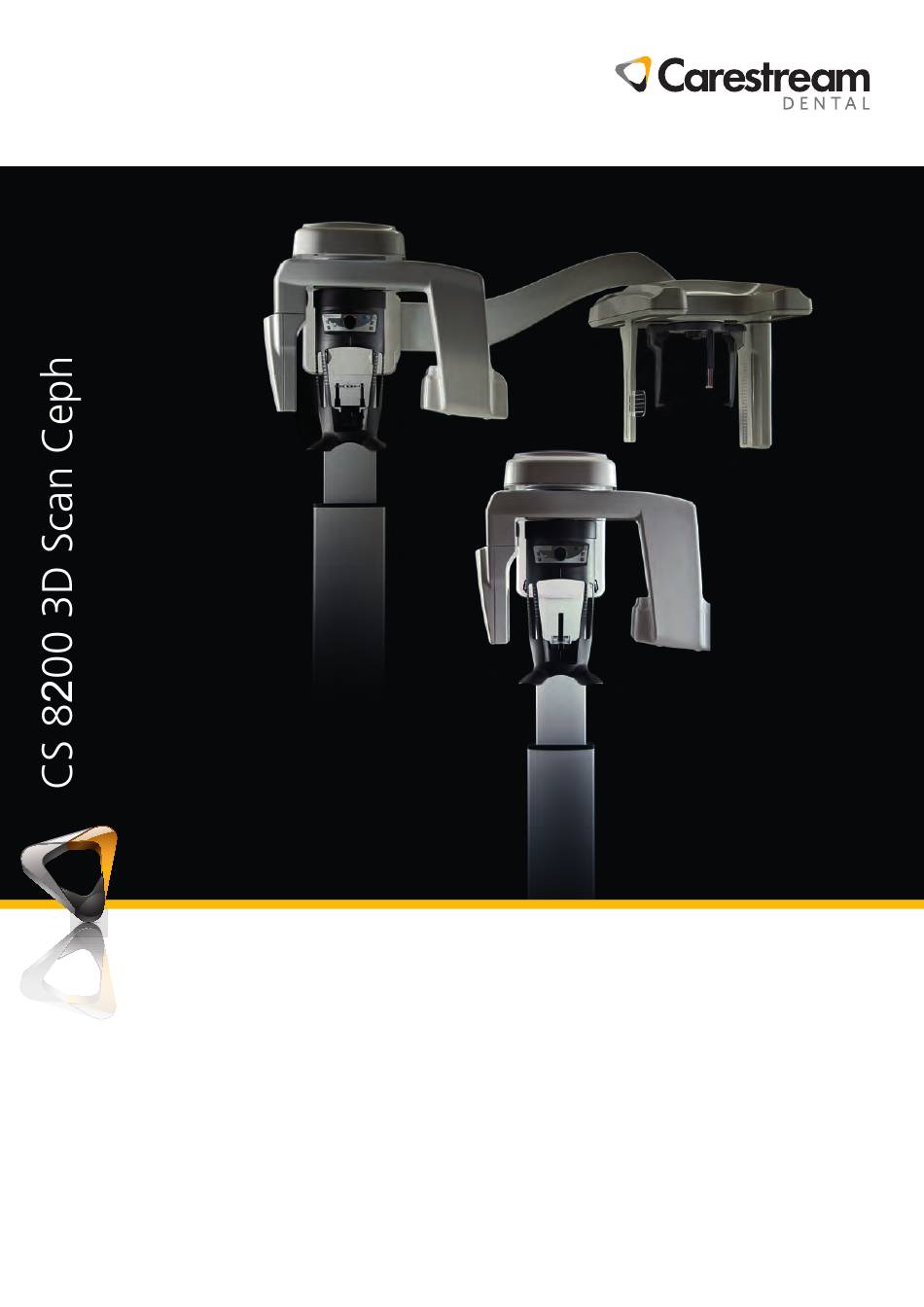

  • Page 1 User Guide...
  • Page 2 (3D focused teeth acquisition and 3D full upper and lower jaw acquisition). The CS 8200 3D can be upgraded to the cephalometric modality with the Scan Ceph module option. The system has the capability to expand the cephalometric 26x24 FoV with license upgrade.

  • Page 3: Table Of Contents

    Launching the X-ray ..... . 26 Modality X-Ray Dose Emission Information....27 Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 4 Acquiring a Frontal AP and PA Image for the Adult and Pediatric Patient ....... 28 Setting the Acquisition Parameters .

  • Page 5: Conventions In This Guide

    CAUTION: Alerts you to a condition that might cause serious damage. Important: Alerts you to a condition that might cause problems. Note: Emphasizes important information. Tip: Provides extra information and hints. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 6 Chapter 1 Conventions in This Guide...

  • Page 7: Mobile Components

    Rotation and translation movement of the rotative arm and the cephalostat Important: The patient can enter either the left side or the right side of the unit. Figure 1 Unit Mobile Components Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 8: General Functional Components

    General Functional Components The following figure illustrates the general functional components of the unit. Figure 2 Unit Functional Components Unit rotative arm Unit column Unit head Frankfort positioning indicator Emergency stop knob Secondary collimator ON/OFF button Nasion support Cephalostat arm Head clamps and ear cones Cephalostat head Cephalometric digital sensor...

  • Page 9: Digital Sensor Locations

    Digital Sensor Locations The following figure illustrates the locations of the digital sensors and cephalometric sensors of the unit. Figure 3 Unit Digital Sensor and Cephalometric Sensor locations Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 10: Head And Chin Rest

    Head and Chin Rest The following figure illustrates the functional components of the head and chin rest. Figure 4 Head and Chin Rest Functional Components Positioning Panel Bite block support Temple support adjustment knob Chin rest Temple supports Hand grips Chapter 2 Cephalometric Modality Overview...

  • Page 11: Positioning Panel

    Ready Indicator LED: Green indicates that the unit is ready for acquisition. Temple support adjustment knob: Opens and closes the temple supports when you turn the knob. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 12: Cephalometric Modality Positioning Accessories

    Cephalometric Modality Positioning Accessories The following accessories are used when positioning a patient using the Cephalometric Modality. Table 1 Cephalometric Modality Positioning Accessories Accessory Description Single use sheaths for ear cones Carpus panel (optional) Frankfort positioning indicator Chapter 2 Cephalometric Modality Overview...

  • Page 13: X-Ray Remote Control Overview

    Figure 6 X-ray Remote Control Exposure button: launches image acquisition. WARNING: X-rays can be harmful and dangerous if not used properly. The instructions and warnings contained in this guide must be followed carefully. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 14 Chapter 2 Cephalometric Modality Overview...

  • Page 15: Computer System Requirements

    Imaging Software Overview Computer System Requirements For minimum computer system requirements and configuration for the CS Imaging Software, see the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67). WARNING: It is MANDATORY to check that the computer system configuration is compatible with the computer system requirements for the CS 8200 3D software.

  • Page 16: Cephalometric Acquisition Interface Overview

    Imaging mode: Imaging mode that you can select before doing an exam (Fast or High Resolution) . Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient.
  • Page 17 Menu: Provides access to the following sub-menus: General Settings, Reset to factory, About, Help. You can select the settings that you want as default settings for the acquisition interface. See “Displaying the User Preferences” Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 18 Chapter 3 Imaging Software Overview...

  • Page 19: Switching On The Unit

    Repeat Steps 2 to 4 for the following parameters:  80 kV - 10 mA  85 kV - 10 mA The unit is now ready to be used for acquisition. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 20: Firewall Or Network Settings

    Firewall or Network Settings You will not be able to access the Cephalometric Acquisition interface if you did not configured the firewall or network settings. To configure the firewall or network settings, follow these steps: On your desktop, double-click to open the CS Imaging Software. The Windows Security Alert dialog box displays.

  • Page 21: Accessing The Cephalometric Acquisition Interface

    Advanced Noise Reduction: Activates the advanced algorithm that reduces noise in the image and preserves image details.  Jewelries video: Activates the video as a reminder for you to remove or return all metal objects. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 22  Negative filter: Changes the contrast for a scout view image.  Display accessory pop-up: Displays the appropriate positioning accessory that you must use. Chapter 4 Getting Started...
  • Page 23 The balance of radiation exposure and image quality for the desired clinical task should be considered. You have the responsibility to determine the final settings of the device to achieve image quality. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 24: Device Specific Features And Instructions

    Device Specific Features and Instructions The CS 8200 3D Cephalometric Modality provides the following design features and instructions that enable safer use of our device with pediatric patients. Patient Size Selection The two smallest patient size icons ( ) represent the exposure values for children and adolescent patients.

  • Page 25: Additional Features To Simplify X-Ray Imaging Of Children And Adolescents

    The representative dose information associated with each radiological exam on the CS 8200 3D Cephalometric Modality and the corresponding patient size is provided in the X-ray Dose Emission Information section of the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67).
  • Page 26 Chapter 5 Pediatric Use: Summary of Safety Instructions...

  • Page 27: Acquiring A Lateral Image For The Adult And Pediatric Patient

     Child  Adult: Small, Medium, Large Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient. If the default parameter setting is not adapted to your patient type, click on the parameter display panel to open it and to select the appropriate parameters.

  • Page 28: Preparing And Positioning The Adult And Pediatric Patient

    Preparing and Positioning the Adult and Pediatric Patient To prepare and position the patient, follow these steps: Ask the patient to remove and place all metal objects in the jewelry tray. Ask the patient to wear a lead apron. Ensure that the apron lays flat across the patient's shoulders. 3.
  • Page 29 Gently push in at the top part of the head clamp bars to bring them in and to fit the ear cones into the ear auditory canals. Lower the nasion support to a vertical position. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 30: Launching The X-Ray

    Use the Frankfort positioning indicator as a visual aid to adjust the up or down inclination of the patient head for a Frankfort plane horizontal alignment. Launching the X-ray To launch the X-ray, follow these steps: Leave the X-ray room and close the door. You must keep visual contact with the patient during acquisition.

  • Page 31: X-Ray Dose Emission Information

    The radiation emission dose is expressed in mGy.cm . This dose is measured at the primary collimator outlet. The dose is accurate to +/-30%. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 32: Acquiring A Frontal Ap And Pa Image For The Adult And Pediatric Patient

     Child  Adult: Small, Medium, Large Important: See the Cephalometric CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient. If the default parameter setting is not adapted to your patient type, click on the parameter display panel to open it and to select the appropriate parameters.

  • Page 33: Preparing And Positioning The Adult And Pediatric Patient

    Stand up straight in the following positions:  For a frontal AP, facing the generator.  For a frontal PA, facing the cephalometric sensor.  Place both ears in between the head clamps. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 34 5. On the positioning panel, press and hold until you get the ear cones to the same height of the ear auditory canals. Note: If the patient is too tall, ask the patient to sit on a stool. Cover the ear cones with ear cone sheaths. Gently push in at the top part of the head clamp bars to bring them in and to fit the ear cones into the ear auditory canals.

  • Page 35: Launching The X-Ray

    Important: If you have a problem that requires you to stop the acquisition, release the exposure button of the remote control or press the red emergency stop button. Figure 5 Frontal AP Figure 6 Frontal PA Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 36: X-Ray Dose Emission Information

    2. Launch the X-ray with the remote control:  Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.  turns yellow and a warning sound is heard, indicating X-ray emission. ...

  • Page 37: Acquiring An Oblique Image For The Adult And Pediatric Patient

     Child  Adult: Small, Medium, Large Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient. If the default parameter setting is not adapted to your patient type, click on the parameter display panel to open it and to select the appropriate parameters.

  • Page 38: Preparing And Positioning The Adult And Pediatric Patient

    Preparing and Positioning the Adult and Pediatric Patient To prepare and position the patient, follow these steps: Ask the patient to remove and place all metal objects in the jewelry tray. Ask the patient to wear a lead apron. Ensure that the apron lays flat across the patient’s shoulders. 3.

  • Page 39: Launching The X-Ray

    Important: If you have a problem that requires you to stop the acquisition, release the exposure button of the remote control or press the red emergency stop button. 2. Launch the X-ray with the remote control: Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 40: X-Ray Dose Emission Information

     Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.  turns yellow and a warning sound is heard, indicating X-ray emission.  The accessory position detector at the chin rest base will change from green to orange during the X-ray emission.

  • Page 41: Acquiring A Submento-Vertex Image For The Adult And Pediatric Patient

     Child  Adult: Small, Medium, Large Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient. If the default parameter setting is not adapted to your patient type, click on the parameter display panel to open it and to select the appropriate parameters.

  • Page 42: Preparing And Positioning The Adult And Pediatric Patient

    Preparing and Positioning the Adult and Pediatric Patient To prepare and position the patient, follow these steps: Ask the patient to remove and place all metal objects in the jewelry tray. Ask the patient to wear a lead apron. Ensure that the apron lays flat across the patient’s shoulders. 3.

  • Page 43: Launching The X-Ray

    Leave the X-ray room and close the door. You must keep visual contact with the patient during acquisition. Important: If you have a problem that requires you to stop the acquisition, release the exposure button of the remote control or press the red emergency stop button. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 44: X-Ray Dose Emission Information

    2. Launch the X-ray with the remote control:  Press and hold the exposure button until the end of the acquisition is indicated by the on-screen “Release Switch” message.  turns yellow and a warning sound is heard, indicating X-ray emission. ...

  • Page 45: Acquiring A Carpus Image For The Adult And Pediatric Patient (Available As An Option)

     Child  Adult: Small, Medium, Large Important: See the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67) for information on radiation protection and recommendations when you select a patient type, especially the pediatric patient. If the default parameter setting is not adapted to your patient type, click on the parameter display panel to open it and to select the appropriate parameters.
  • Page 46 Remove the cap (A), take the carpus panel (B) and push it (C) into the magnetic carpus panel slot (D). If the Ready Indicator button remains black, you will not be able to make an acquisition. Click A screen will display and illustrate on what you must do: The button turns green once you complete the instructions.

  • Page 47: Preparing And Positioning The Adult And Pediatric Patient

    Make sure that the: Important: Hand, wrist, and forearm are in a completely vertical position.  Hand is approximately in the middle of the carpus panel.  Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 48: Launching The X-Ray

    Launching the X-ray WARNING: To avoid exposure to other parts of the body, make sure the patient stands as far away as possible from the X-ray emission range and extends the hand to the carpus panel. To launch the X-ray, follow these steps: Leave the X-ray room and close the door.

  • Page 49: X-Ray Dose Emission Information

    The radiation emission dose is expressed in mGy.cm . This dose is measured at the primary collimator outlet. The dose is accurate to +/-30%. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 50 Chapter 6 Acquiring Images using the Cephalometric Modality...

  • Page 51: Maintenance Actions

    Maintenance Perform the following maintenance activities on your CS 8200 3D Cephalometric Modality. Important: For information on cleaning and disinfecting, see the CS 8200 3D Safety, Regulatory and Technical Specifications User Guide (SMA67). Maintenance actions Monthly maintenance Wipe the outer covers of the unit with a soft and dry cloth.
  • Page 52 2. In the left pane, double-click Image Quality Tool to launch the Image Quality Control software. Click Next to access the Image Quality Control window. 4. Click test options to select the desired test or to modify default test parameters. Chapter 7 Maintenance...
  • Page 53 Click Start a new test, and follow the on-screen instructions. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 54 Chapter 7 Maintenance...

  • Page 55: Quick Troubleshooting

    Start the acquisition The acquisition has been Keep pressing and holding the exposure button. launched. Upgrade of the firmware The system is being upgraded. Wait for completion of the upgrade. Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...
  • Page 56 Chapter 8 Troubleshooting...

  • Page 57: Manufacturer's Address

    Hedelfinger Str. 60, 70327 Stuttgart, Germany Carestream Dental Spain S.L.U. Paseo de la Castellana, 79, Madrid 28046, España Carestream Dental Italy S.r.l. Via Mario Idiojmi 3/3, Assago 20090 (MI), Italia Cephalometric Modality User guide for CS 8200 3D (SMA82) Ed01...

  • Page 58: List Of Importers For Switzerland

    List of Importers for Switzerland CURADEN AG Riedstrasse 12 CH-8953 Dietikon Switzerland Dema dent AG Furtbachstrasse 16 CH-8107 Buchs Switzerland Jordi Röntgentechnik Dammstrasse 70 CH-4142 Münchenstein Switzerland E. Schweizer AG Bernerstrasse Nord 182 CH-8064 Zürich Switzerland 54 Chapter 9 Contact Information...
  • Page 59 For more information visit: www.carestreamdental.com 2022-01 SMA82 Ed01...
