Summary of Contents for CAMBRIONIX PP15C

  • Page 1 User Manual PP15C...
  • Page 2: Table Of Contents

    1.Table of Contents 1.Table of Contents 2.Your PP15C at a glance 3.Safety 3.1.Signal word panel 3.2.Safety alert symbol 3.3.Pictograms 3.4.Product modification 3.5.Power supply 3.6.Storage and Installation 4.Getting Started 4.1.What's Included 4.2.Connecting to the mains 4.3.Previous versions of Windows 4.4.Registration 4.5.Help and Support 5.Using your PP15C...

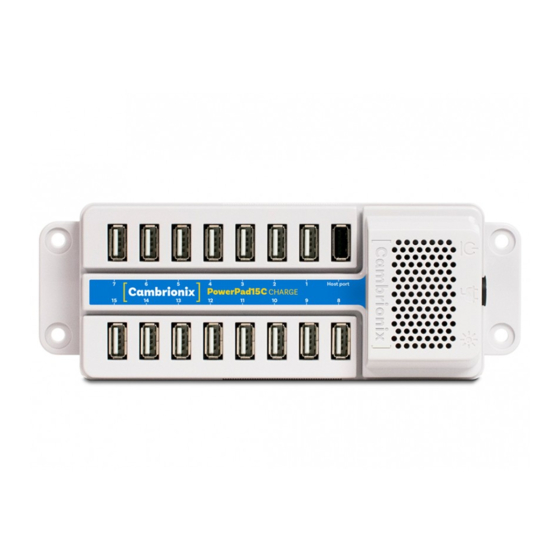

  • Page 3: Your Pp15C At A Glance

    (up to 2.1A). The firmware can be up-dated to allow new charging profiles to be added, ensuring the PP15C can charge the latest devices. It is ready to charge out-of-the-box and to sync devices when attached to a host computer.
  • Page 4: Safety

    Indicates a potentially hazardous situation which, if not avoided, may result in moderate or minor (reversible) injury. Indicates a potentially hazardous situation which, if not avoided, may result in damage to the product and/ or its functions or of a property in its proximity. PP15C Page 3 of 13...
  • Page 5: Safety Alert Symbol

    Mandatory regulation 3.4.Product modification Cambrionix products are designed and manufactured to meet the requirements of UK and International safety regulations. Modifications to the product could affect safety and render the product non-compliant to relevant safety standards, which could result in injury or damage to the product.
  • Page 6: Power Supply

    Do not short circuit the Power Supply Unit (PSU) supplied with your product Do not disconnect the power cord while the product is being used Do not bend or pull the power cord with excessive force PP15C Page 5 of 13...
  • Page 7: Storage And Installation

    Do not place the power cord near heat sources Connect the plug to an earthed socket Damage to your Cambrionix product may occur Operate the product only in an environment where the ambient temperature is inside the operating temperature range...
  • Page 8: Getting Started

    If you are using a version of Microsoft Windows™ Windows prior to Windows 10 you will need to install Cambrionix CDC drivers for enabling the full functionality of the hub. To install the drivers please detach the hub from the PC before executing the downloaded installer. The installer will prompt you for permission to install drivers signed by Cambrionix, please agree to this.
  • Page 9: Using Your Pp15C

    5.Using your PP15C 5.1.Using without connecting to a host computer When the Hub is switched on and is not connected to a local host computer it is automatically configured to charge devices using its intelligent charging algorithm. Simply connect the devices to be charged to any of the available ports (not the Host Port) using USB - compliant cables.
  • Page 10: Cleaning Your Pp15C

    If there is a dirt/ spillage over a ventilation slot, external data/ power connector or product aperture, please remove power from the unit without touching the liquid and contact Cambrionix immediately Ensure that the product is switched off and the power cord is removed from the product.
  • Page 11: Product Specifications

    USB 2.0 Type-A Output Connectors 15 x USB 2.0 Type-A Maximum Data Speed Ambient Operating Temperature range 0 - 35 °C Relative humidity 5% to 95% non-condensing Dimensions 198.4 x 73 x 40mm Weight 1.6kg PP15C Page 10 of 13...
  • Page 12: Power Supply Specifications

    6.4.Power Supply Specifications Input Voltage 100-240VAC 4A @ 115VAC Input Current (Typical) 2A @ 230VAC Input Frequency 50-60Hz Input Connector Output Voltage Output Current Output Power (Max) 180W Output Connector 4-pin DIN PP15C Page 11 of 13...
  • Page 13: Compliance And Standards

    CE Tested and marked FCC Part 15 Tested and marked Complies with EN60950 safety requirements for IT equipment Housed within a UL94-VO specification fire enclosure RoHS Compliant Independently safety tested by the Underwriters Laboratory (UL) under file #E346549 PP15C Page 12 of 13...
  • Page 14 This manual may make reference to trademarks, registered trademarks, and other protected names and /or symbols of third-party companies not related in any way to Cambrionix. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by Cambrionix, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
  • Page 15 Cambrionix Ltd The Maurice Wilkes Building Cowley Road Cambridge CB4 0DS United Kingdom +44 (0) 1223 755 520 enquiries@cambrionix.com www.cambrionix.com © 2021 Cambrionix Ltd. All rights reserved.
