Sunny Health & Fitness SF-RW521020 User Manual

Rowing machine with bluetooth
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

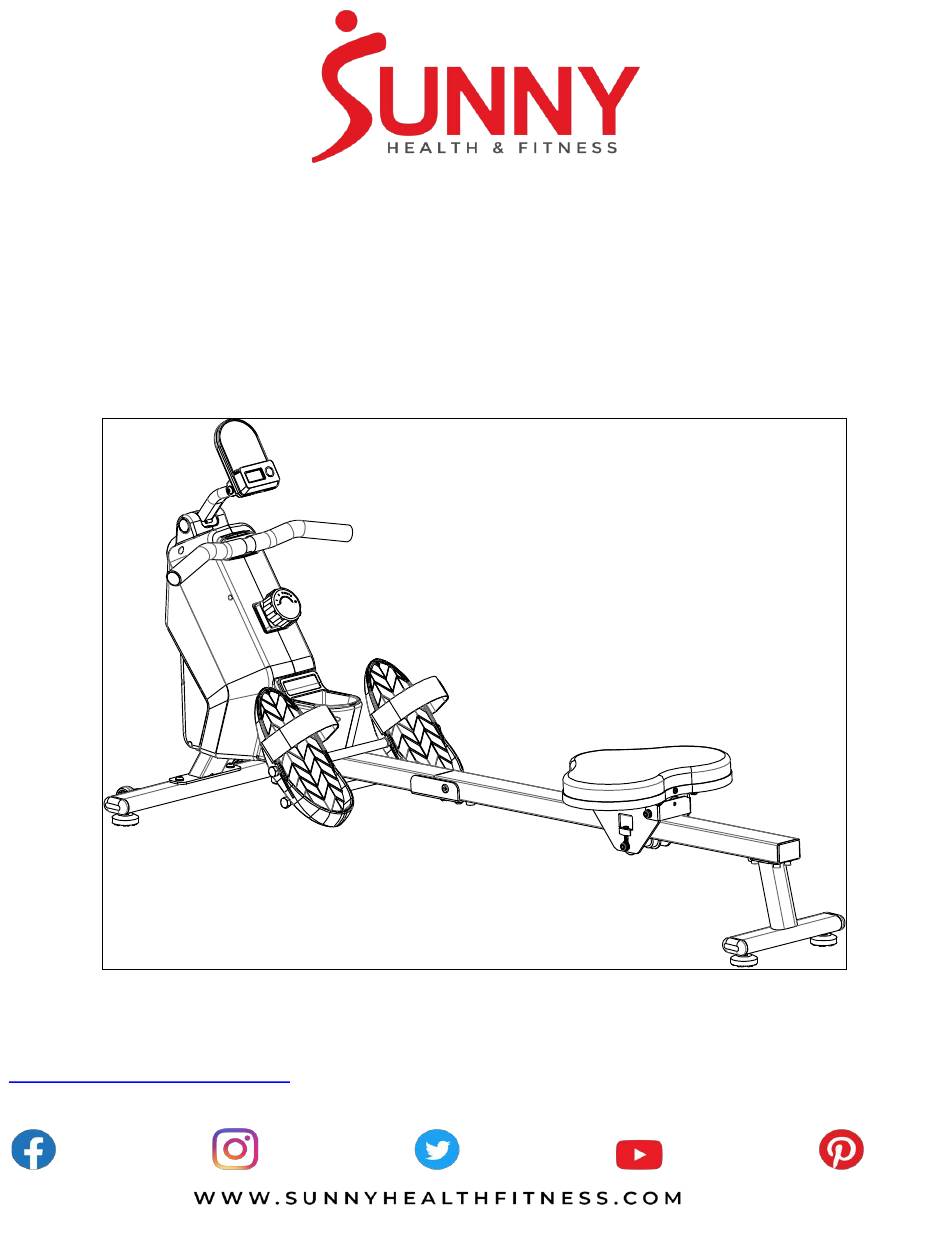

ROWING MACHINE
WITH BLUETOOTH
SF-RW521020
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your satisfaction is
very
important
to
us,
PLEASE
DO
NOT
RETURN
UNTIL
YOU
HAVE
CONTACTED
US:
support@sunnyhealthfitness.com
or 1-877-90SUNNY (877-907-8669).

Advertisement

Table of Contents
loading

Related Manuals for Sunny Health & Fitness SF-RW521020

Summary of Contents for Sunny Health & Fitness SF-RW521020

  • Page 1 ROWING MACHINE WITH BLUETOOTH SF-RW521020 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important PLEASE RETURN UNTIL HAVE CONTACTED support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly.

  • Page 3: Pre-Assembly Check List

    PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Computer Main Frame 29L/R Pedal Sliding Rail Hardware Package Front Stabilizer Thank You Card Rear Stabilizer Manual Seat Battery Computer Support...

  • Page 4: Hardware Package

    HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed:  The model number (found on cover of manual)  The product name (found on cover of manual) ...
  • Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.comor 1-877-90SUNNY (877-907- 8669). STEP 1: Unscrew 2 Screws (No. 71), 2 Plastic Washers (No. 72) and 1 Shipping Board (No. 70) from Main Frame (No.
  • Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.comor 1-877-90SUNNY (877-907- 8669). STEP 3: Attach 2 Bolts (No. 28) into the bottom hole in position B of Main Frame (No. 1), with Spanner (No.
  • Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.comor 1-877-90SUNNY (877-907- 8669). STEP 6: Attach the Sliding Rail (No. 2) to the Main Frame (No. 1) by securing 2 Bolts (No. 31) onto the left and right sides of the Main Frame (No.
  • Page 8 ADJUSTMENTS &USAGE GUIDE CAUTION! Moving parts, such as the seat, can cut and crush. Keep hands clear of the sliding rail during use! PEDAL STRAP ADJUSTMENT The pedal straps is adjustable and can be personalized to fit the user’s foot size. NOTE: To avoid injury, please adjust the pedal straps to user’s foot before exercise.

  • Page 9: Storage Guide

    STORAGE GUIDE CAUTION! Use caution when you vertically place Sliding Rail (No. 2) as your head may touch the CAUTION! Rear Stabilizer (No. 4). The Seat (No. 6) will glide down when placing the Sliding Rail (No. 2) in an upright position. When not in use, you save space...

  • Page 10: Battery Installation And Replacement

    BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION: 1. Take out 2 AAA batteries from computer box. 2. Press the buckle of battery cover on the back of the Computer (No. 37), then remove battery cover. 3. Install 2 AAA batteries into the battery case on the back of the Computer (No. 37). Pay attention to the battery + and –...

  • Page 11: Exercise Computer

    EXERCISE COMPUTER KEY FUNCTIONS： ■  Press the MODE key to select and lock on a function for following sequence:         SCAN TIME COUNT DIST TOTAL COUNT (TOT) T/500M SCAN  Press and hold the MODE key for 3 seconds to reset the value to zero (without TOT). MODE: ■SLEEP ...
  • Page 12 APP CONNECTION: 1. Scan the QR code below to download the SunnyFit app onto your mobile device. 2. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. 3.

  • Page 13: Exploded Diagram

    EXPLODED DIAGRAM...
  • Page 14 EXPLODED DIAGRAM...

  • Page 15: Parts List

    PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Sensor Wire L=310mm Sliding Rail Sensor Wire A Front Stabilizer Sensor Wire B Φ14*77.5*M8 Rear Stabilizer Bolt Φ28*1.5 Handlebar Axle Sleeve Φ8*Φ25*2.0 Seat Big Washer Ф8*Ф16*1.5 M8*30*Φ52*19 Washer Foot Pad Ф8 Spring Washer M8*B4...
