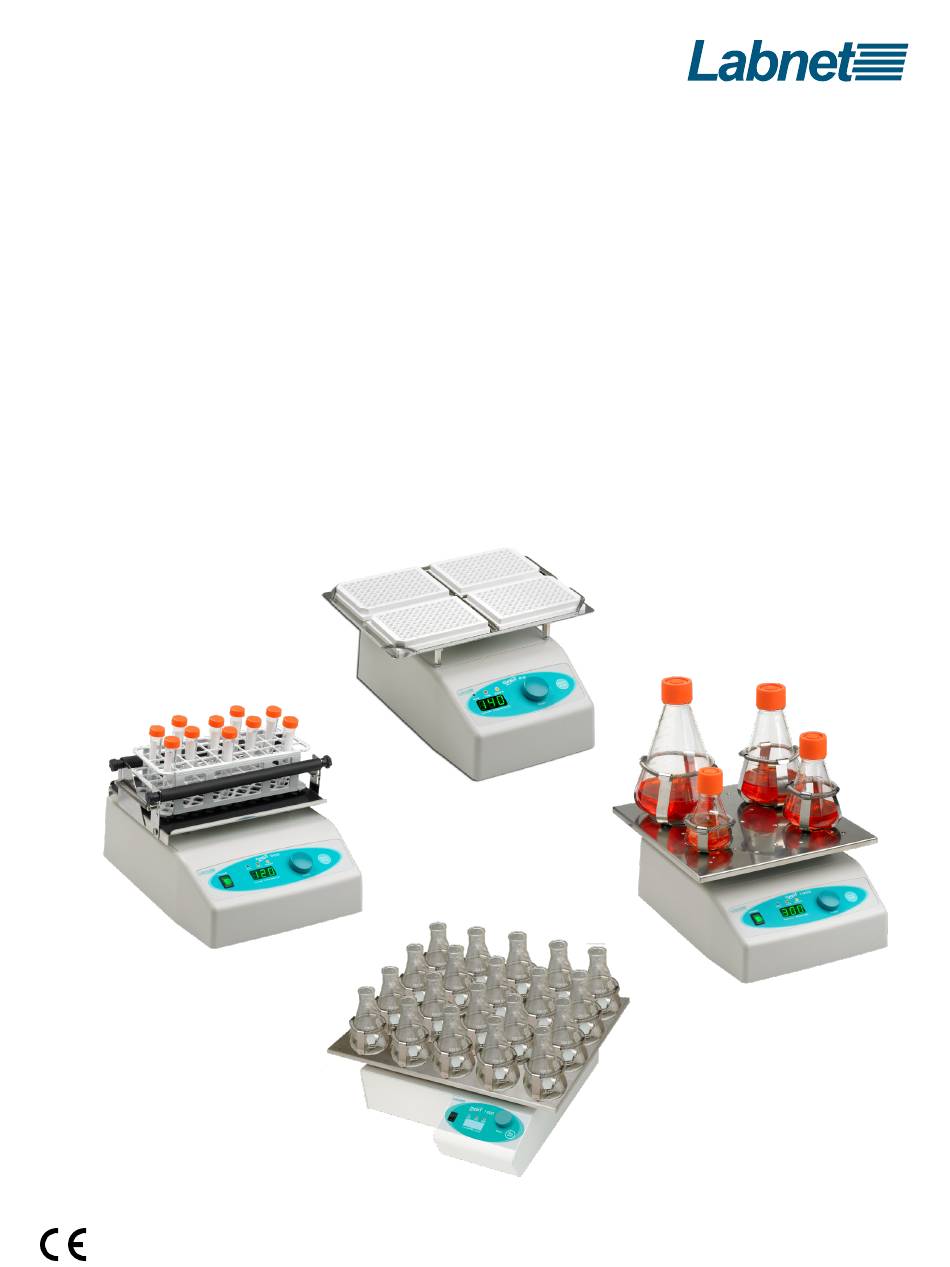

- Page 1 Orbit™ Digital Shakers Instruction Manual Catalog Numbers: S2020-P4-B S2020-P4-B-230V S2030-300-B S2030-300-B-230V S2030-1000-B S2030-1000-B-230V S2040-1900 S2040-1900-230V This manual is available in additional languages at www.labnetlink.com.
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................. . .1 2.0 Specifications . -
Page 3: Introduction
1.0 Introduction Labnet’s Orbit™ Digital Shakers are intended for shaking microliter plates, tubes, bottles, flasks, dishes and other laboratory vessels. The shakers are driven by asynchronous motors, which enable silent operation and constant shaking speed independent of the load or power supply fluctuations. -
Page 4: Safety Information
Orbit™ 1000 Model Electric Power Supply 230V ± 10%, 50/60Hz or 120V ± 10%, 50/60Hz Motor Power Fuse 2 x 0.25AT (230V) 2 x 1AT (120V) RPM Regulation Digital, load independent, from 20 to 300 rpm in 1 rpm steps Shaker Orbit 19 mm Timer... -
Page 5: Installation
4.0 Installation 4.1. Unpacking Before starting installation, carefully examine the shaker for damage or missing parts. Open the box and lift the device together with inner packing, out of the box. Remove the inner packing and check that the shaker has not been visibly damaged during ... -
Page 6: Installation Of Shaker Platforms
5.0 Installation of Shaker Platforms Orbit™ P4 Unit comes with the platform already installed. Orbit 300 Grease Stabilizers Before you attach the platform, make sure that the slide stabilizers are properly fastened, adjusted and lubricated with the included grease. The flat mat platform has a circle cut-out in the rubber and screw holes in the center. -
Page 7: Operating Instructions
6.0 Operating Instructions 6.1. Control Panel POWER TIME Encoder START STOP Push 1. POWER switch – to turn the shaker ON (power switch illuminates) or OFF. 2. RUN – green signal light illuminated when the shaker is running. 3. TIME – yellow signal light illuminated when the shaker is set on time. 4. - Page 8 If you want to set the timer to hold turn the knob left or right until “HLd” is displayed. You can reach the “HLd” function by setting to under 0.30 or above 99.5. POWER TIME Encoder START STOP Push Push down on the encoder knob to switch modes between time set mode and RPM set mode. ...
-
Page 9: Additional Operations
7. When the run time has elapsed or when you press the START/STOP button, the display will show “End” and the Run light will flash. POWER TIME Encoder START STOP Push When shaker completely stops the set speed and time will return to the last programmed values. 6.3 Additional Operations If you want to view the set value for RPM during shaking, rotate the encoder knob for ONE CLICK right ... -
Page 10: Troubleshooting
Message Er2, Er3, or Er4 on display Should you have a question about the operation of the Labnet Orbit™ Digital Shakers or if service is required, contact your Corning representative. Do not send in a unit for service without first calling to obtain a repair authorization number. -
Page 11: Accessories
9.0 Accessories Description Cat. No. Qty/Pk Orbit™ 300 Platform for four microplates S2030-10 Platform with non-slip rubber mat S2030-12 Spring loaded platform for flasks, bottles or tube racks S2030-13 Orbit 1000 Flat platform with non-slip rubber mat (30 x 30 cm) S2031-12 Two stacked platforms with non-slip rubber mat (30 x 30 cm) S2032-12D... -
Page 12: Limited Warranty
10.0 Limited Warranty Corning Incorporated (Corning) warrants that this product will be free from defects in material and workmanship for a period of one (1) year from date of purchase. CORNING DISCLAIMS ALL OTHER WARRANTIES WHETHER EXPRESSED OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR OF FITNESS FOR A PARTICULAR PURPOSE. - Page 13 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use only. Not intended for use in diagnostic or therapeutic procedures. Corning Life Sciences makes no claims regarding the performance of these products for clinical or diagnostic applications. For additional product or technical information, visit www.corning.com/lifesciences or call 800.492.1110.
