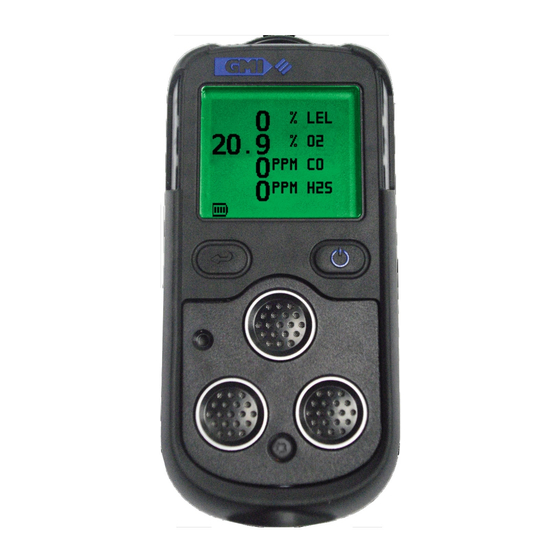

  • Page 60: Prise En Main Rapide

    Quick Operation Guide / Prise en main rapide Switch On / Mise en marche Backlight On / Rétro-éclairage de l’écran Reset / Remise à zéro Manual Datalog / Sauvegarde manuelle Pump / M/A pompe Self Test / Auto Test...
  • Page 61 Alarms / Alarmes gaz Alarm Acknowledge / Acquittement Calibration Overdue / Date de calibrage dépassée Switch Off / Mise à l’arrêt &   Flow Fault / Défaut débit Charging / Mise en charge Reset / Acquittement Zero Fault / Défaut de la mise à...
  • Page 62 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  IMPORTANT    MARINE 4 QUICK START  CALIBRATION AND  TROUBLESHOOTING GUIDE   READ BEFORE USE ...
  • Page 63 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE         ...

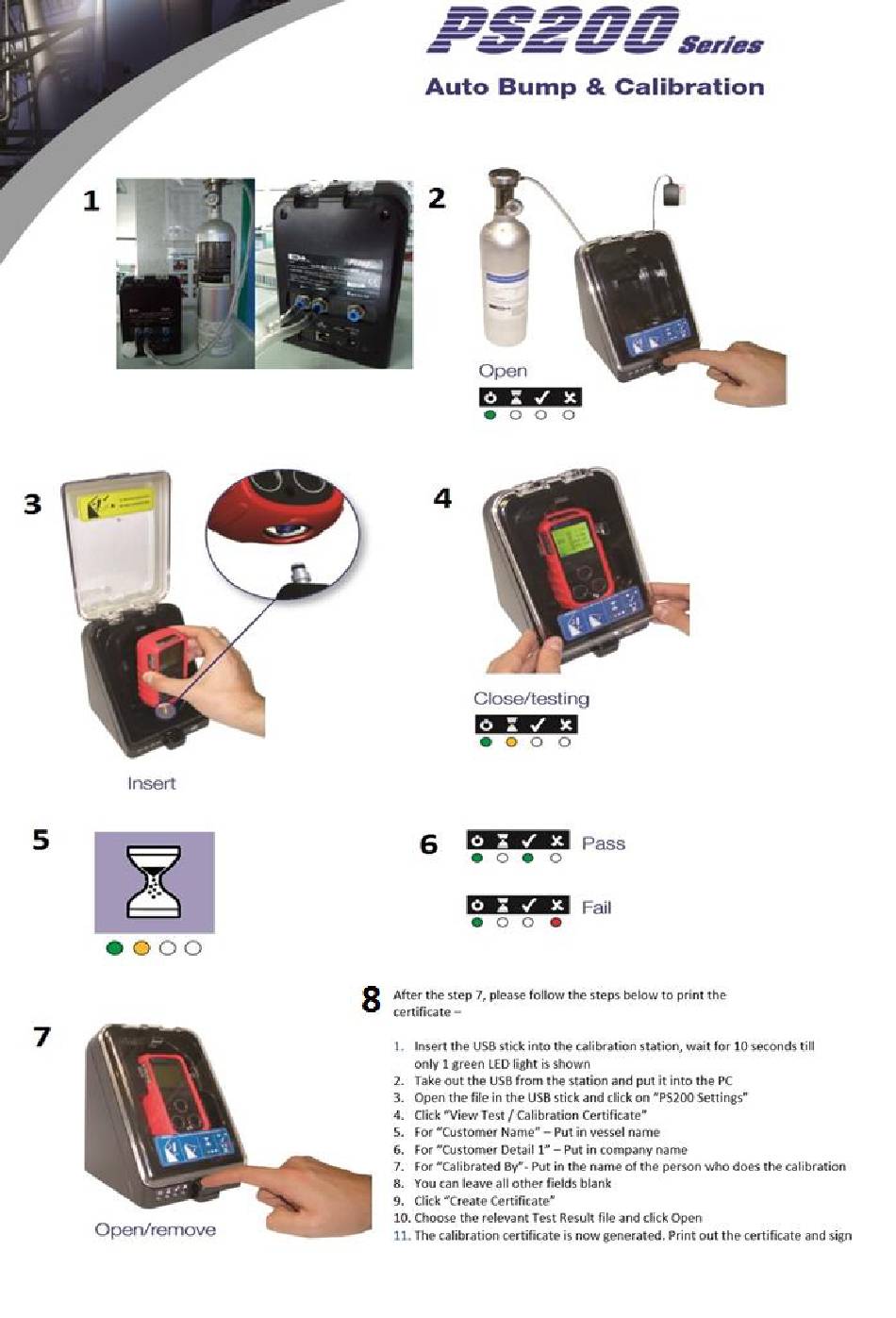

  • Page 64 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  Calibration using ABC station  3. Connect Air / Exhaust Tubing to ABC  Station  (if  required)   If the ABC Station is located in a poorly ventilated area, it is  Equipment required:  recommended that tubing is connected and routed to the nearest  window for the supply of fresh air/exhaust ventilation.  1. ABC Station and power adapter    2. USB stick supplied with ABC station – complete with software as  4. Connect power to ABC station   supplied    3. Test gas and tubing with connectors    4. Demand flow regulator    5. Marine 4          5. Allow 30 seconds for the unit to warm up, ensure that the light  1. Connect demand flow regulator and tubing  to gas bottle  sequence Orange‐Orange‐Red is seen during power‐up after which all  LEDs will light up green and when completed only the power light will  be lit      5 seconds     ...
  • Page 65 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  7. Select below from the folder  11. Put USB  into the ABC station         The image shown will load.                                8. Choose unit calibration  12. The LED’s will flash while the settings are uploaded. Wait for light    sequence to complete            9. Compare gas types and  ranges with gas bottle      and ensure they are ...
  • Page 66 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  14. Open the front cover of the ABC unit by pressing  the latch  16. Close the front door until it ‘clicks’ in to place          17. The process will start automatically when the door is closed.  15. Insert the unit to be tested into the ABC station connecting the gas  While testing is in progress the lights will cycle through a sequence of  supply nozzle at the base of the unit.  The marine 4 can be switched  orange flashing lights – first will be the test in progress light as shown  on or off.  below.        18. The marine 4 will also start up and go through a sequence of tests with  gas being delivered for 60 seconds    19. Audible alarms will also be present as the unit is tested and alarm set  points are reached.             ...
  • Page 67 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  20. The unit will then indicate pass or fail by either a green or red led  23. Wait for light sequence to complete        PASS        FAIL    21. Remove the unit from the ABC station.  If it has passed it can be put    into operation.  If failed please refer to the troubleshooting guide.        22. When units have been calibrated successfully and removed from the  24. Remove USB  from the ABC  ABC station, Insert the USB stick to download the results from the ABC    internal memory.  25. Put memory stick supplied into PC/laptop and select “Open Folder to    View Files” (note actual display may vary with different operating    systems)               ...
  • Page 68 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  26. Select below from the folder  30. Select the test result that you wish to produce the certificate for from  the list of test results that are displayed in the new window      27. Click the button to generate the  calibration certificate             28. The below box will appear to  input specific information if  required    31. Click OK to open produced certificate        29. Click create certificate       ...
  • Page 69 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  32. Example calibration certificate   33. Certificates that have been created can then be viewed in the  Generated certificates folder               ...
  • Page 70 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  Screen Display  Audible  LED status  Probable Cause  Solution  If not resolved    showing…  alarm status  Sounds once  Red LED’s  Battery requires charging. There is less  Place the unit on charge, it will take a  If battery will not charge  every 2  flashing  than 30 minutes normal operation left  maximum of 4 hours to recharge fully  up please contact  seconds  before the unit turns off   service@martek‐     marine.com     Note:  Gas  alarms  continue  to  operate   after  the  ‘LOW     BATTERY’ warning appears.  LOW BATTERY warning    Sounds  Red LED’s  Battery requires charging.  There is less  Place the unit on charge, it will take a  If battery will not charge  continuously  stay on  than 3 minutes normal operation left ...
  • Page 71 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  Screen Display  Audible  LED status  Probable Cause  Solution  If not resolved    showing…  alarm status  Sounds once  Red LED’s  Unit has been turned on in the presence  Leave the instrument ON for 30 minutes in  If the fault persists  every 2  flashing  of gas   fresh air.  contact  seconds    Then switch off and back on again still in  service@martek‐   Or  fresh air.  marine.com        The cell has been over exposed to gas  NOTE: The instrument can still be used to       ALTERNATING WITH A GAS  detect and alarm on the other sensor(s)  READING HIGHER THAN 0%  fitted. Press the               button to continue.   AS SHOWN BELOW   ...
  • Page 72 MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  Screen Display  Audible  LED status  Probable Cause  Solution  If not resolved    showing…  alarm status  Sounds once  Red LED’s  Flow is restricted due to a blockage in the  Check for and clear any blockages found in  If no blockages found  every 2  stay on  sample tube, sample filter or probe.  sample tube, filter or probe.  Restart pump  but the fault remains  seconds    by pressing               button  contact    service@martek‐ marine.com    FLOW FAULT alarm    Sounds  Red LED’s  Calibration of the unit is overdue.  The    If warning remains after  continuously  stay on  instrument will operate using its previous  Press the               button once to  calibration please  calibration settings; however, as the ...
  • Page 73: Date And Time

    MARINE 4 QUICK START, CALIBRATION AND TROUBLESHOOTING GUIDE  Screen Display  Audible  LED status  Probable Cause  Solution  If not resolved    showing…  alarm status  None    The battery has been allowed to  SWITCH THE INSTRUMENT ON     completely deplete and has reset the  Wait until the following screen appears  internal clock    Push the buttons in this sequence, with a  slight pause between each press.      DATE AND TIME  The countdown timer (top right of the  HAS RESET TO  screen) will now alternate between a  2000  number and the letter M.  Once the  countdown has finished the screen will  display:    Normal  Calibrate  Alarms  Setup  Default  Clock    Scroll down (left button) until clock is  highlighted and enter (right button) ...
