Gas Measurement Instruments Ltd
Personal Surveyor 200
User Handbook

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS241 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GMI PS241

Summary of Contents for GMI PS241

  • Page 1 Gas Measurement Instruments Ltd Personal Surveyor 200 User Handbook...
  • Page 2 Issue 8 12/10/2016 Part Number: 64171 GMI welcomes comments on all our publications. Your comments can be of great value in helping us to improve our customer publications. Please send any comments that you have to customerservice@gmiuk.com © Copyright Gas Measurement Instruments Ltd 2012...
  • Page 3 GMI. Reproduction or disassembly of such embodied programmes or algorithms is prohibited. Ownership of such software is not transferable and GMI does not warrant that the operation of the software will be error free or that the software will meet the customer’s requirements.

  • Page 4: Safety

    ATEX Directive 94/9/EC. Any right of claim relating to product liability or consequential damage to any third party against GMI is removed if the above warnings are not observed. ADDITIONAL SAFETY DETAILS - CSA ONLY CAUTION: Before each days Usage, test on a known concentration of methane, equivalent to 25 - 50% of full scale concentration.

  • Page 5: Areas Of Use

    WARRANTY The GMI PS200 instrument has a standard warranty of 2 years against faulty consumable, mechanical and electronic parts, e.g. pump, sensors, filters, battery, flexi-PCB etc.
  • Page 6 USER HANDBOOK...

  • Page 7: Table Of Contents

    CONTENTS COPYRIGHT LIABILITY MODIFICATION NOTICES SOFTWARE DISPOSAL ADVICE SAFETY AREAS OF USE SPECIAL CONDITIONS OF USE STORAGE, HANDLING AND TRANSIT WARRANTY INTRODUCTION 1.1 GENERAL DESCRIPTION 1.2 FEATURES 1.3 DATA LOGGING 1.3.1 Archiving Stored Readings 1.4 FILTERS 1.5 CONSTRUCTION 1.6 IDENTIFICATION LABEL...
  • Page 8 USER HANDBOOK 1.7 CERTIFICATION 1.7.1 Certification Marks 1.7.2 Performance OPERATION 2.1 OPERATING PROCEDURE 2.2 SWITCH THE INSTRUMENT ON 2.2.1 Instrument Identification 2.2.2 Battery Status 2.2.3 User Name / Number Only (Option) 2.2.4 Date and Time 2.2.5 Bump Due Date (Option) 2.2.6 Calibration Due Date 2.2.7 Service Due Date (Option) 2.2.8 Select Calibration Gas (Option)
  • Page 9 CONTENTS 2.8 SELF TEST 2-17 2.9 SWITCH THE INSTRUMENT OFF 2-18 MANUAL BUMP TEST OPTIONS 3.1 BACKGROUND 3.2 MANUAL BUMP OPTIONS 3.3 INITIATING A MANUAL BUMP TEST 3.3.1 Regulator Valve Selection (Pumped Instrument Only) 3.4 APPLYING TEST GAS 3.5 QUICK / FULL BUMP TEST 3.5.1 Quick Bump Test 3.5.2 Full Bump Test 3.6 ALARM CONFIRMATION...
  • Page 10 USER HANDBOOK 4.5 FAULT ALARMS 4.5.1 Low Battery 4.5.2 Zero Fault 4.5.3 Sensor Fault 4.5.4 Flow Fault (Pumped Instruments Only) 4-11 4.5.5 Calibration Required 4-12 4.5.6 Calibration Expired 4-13 OPERATOR MAINTENANCE 5.1 CLEANING 5.2 REPLACE INSTRUMENT FILTERS 5.2.1 Replace Sensor Hydrophobic Filter 5.2.2 Replace Sample Inlet (Dust) Filter 5.2.3 In-line Hydrophobic Filter (Accessory) RECHARGE BATTERY...
  • Page 11 CONTENTS CALIBRATION 7.1 GENERAL DESCRIPTION 7.2 CALIBRATION VALIDITY ACCESSORIES ADDITIONAL INFORMATION 9.1 TRAINING 9.2 WEBSITE TYPICAL OPERATING PARAMETERS PHYSICAL PROPERTIES ENVIRONMENT TYPICAL FLOW RATE INFORMATION WARM-UP / STABILIZATION TIME ALARMS DISPLAY POWER SOURCE CONSTRUCTION IP RATING RESPONSE TIMES (T...
  • Page 12 USER HANDBOOK LEL SENSOR TYPES INDEX...

  • Page 13: Introduction

    INTRODUCTION 1.1 GENERAL DESCRIPTION The GMI PS200 series combines quality, ruggedness and advanced technology in a user friendly, portable gas detector. It is compact, lightweight, water resistant, extremely robust and is suitably certified to recognised International Standards. The PS200 is designed for confined space monitoring, for example, in sewers, underground piping, or within tanks and other personal monitoring applications.

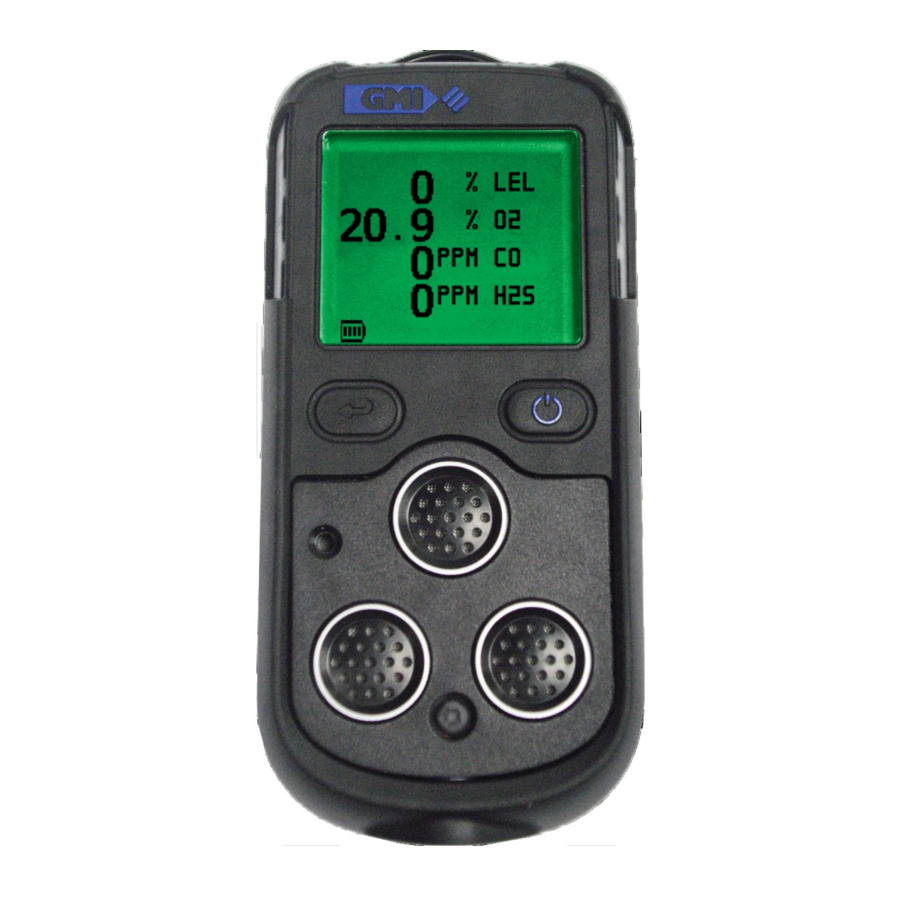

  • Page 14 USER HANDBOOK Fig. 1-1 PS200 Series Instrument The PS200 Series has the ability to detect up to four (4) of the following gases simultaneously: • 0 to 100% LEL Hydrocarbons • 0 to 25% Oxygen (O • 0 to 1000ppm Carbon Monoxide (CO) •...
  • Page 15 INTRODUCTION Fig. 1-2 Display Example (4-Gas) Note: If configured with less sensors, the character size is adjusted accordingly to maximise the display, as illustrated in Fig. 1-3. 1-Gas 2-Gas 3-Gas Fig. 1-3 Display Examples The display, illustrated in Fig’s 1-2 and 1-3, details the current gas readings and operational / status information.

  • Page 16: Features

    USER HANDBOOK Fig. 1-4 ‘OK’ Display Example (4-Gas) Note: This Handbook describes the operation of a standard 4-gas instrument. On other models, operation is similar to the example shown. Operational differences are highlighted if and where they exist. Configurable options are available that allow the instrument to be set up to suit your particular requirements.

  • Page 17: Data Logging

    INTRODUCTION • Alphanumeric display with screen backlighting. Backlighting is coloured green during normal operation and red during alarm condition. • Internal electric pump (optional) with a nominal flow rate of 0.5 to 0.7 litres per minute. • Both manual and fully automatic data logging. •...

  • Page 18: Archiving Stored Readings

    1.3.1 Archiving Stored Readings Stored readings can be downloaded from the PS200 series instrument to a PC, using the standard charging / comms cable and additional software. Contact the GMI Sales Department for further details. 1.4 FILTERS The instrument is protected from water and dust ingress by hydrophobic and dust (sample inlet) filters.

  • Page 19: Certification

    INTRODUCTION 1.7 CERTIFICATION The PS200 series instrument is certified as follows: Note: Check instrument labels for actual certification. ATEX II 2G Ex ia d IIC T4 Gb (Ta = -20 C to +50 IECEx Ex ia d IIC T4 Gb (Ta = -20 C to +50 ATEX II 1G Ex ia IIC T4 Ga (Ta = -20...

  • Page 20: Certification Marks

    USER HANDBOOK Segurança ATENÇÃO: NÃO RECARREGAR EM AREA CLASSIFICADA DNV 16.0082 X Um=6V OCP 0017 14-AV4BO-0010 Ex ia d IIC T4 Gb (Ta = -20 C to +50 IECEx SIR11.0019 TP TC 012/2011 TP TC 020/2011 1.7.1 Certification Marks Refer to the following for details: www.europe.eu.atex www.iecex.com 1.7.2 Performance...

  • Page 21: Operation

    OPERATION 2.1 OPERATING PROCEDURE CAUTION: The GMI PS200 instrument can be supplied with a flammable gas sensor. This sensor is designed for use in concentrations of gas not exceeding the Lower Explosive Limit (LEL). Exposing the sensor to high concentrations of flammable gas above the LEL can cause damage to the sensor and inhibit its proper operation.

  • Page 22: Switch The Instrument On

    USER HANDBOOK • The instrument is within the calibration period you have decided is necessary for your application. • If oxygen sensor is fitted, check oxygen readings to ensure correct operation. The oxygen sensor responds to the user breathing on the instrument front face (sensor area) by displaying a decreased value, i.e.

  • Page 23: Instrument Identification

    OPERATION RIGHT HAND (RH) BUTTON Fig. 2-1 PS200 Switch ON 2.2.1 Instrument Identification During warm-up, the instrument display identifies the serial number, software version and battery status information as illustrated in Fig. 2-2: Fig. 2-2 PS200 Series Identification Display 2.2.2 Battery Status Provides the user with the battery charge level, as shown in previous display.

  • Page 24: User Name / Number Only (Option)

    USER HANDBOOK 2.2.3 User Name / Number Only (Option) This configurable option, disabled by default, allows the user to select a name or identification code, as illustrated in Fig. 2-3. This name or code will be included with all Bump, Calibration and Event logs.

  • Page 25: Bump Due Date (Option)

    OPERATION 2.2.5 Bump Due Date (Option) This configurable option is disabled by default but can be configured to either, indicate briefly that bump test is due, as illustrated in Fig. 2-5, indicate that bump test is overdue then pause awaiting user acceptance, as illustrated in Fig. 2-6, or force the user to switch instrument OFF when overdue.

  • Page 26: Calibration Due Date

    USER HANDBOOK 2.2.6 Calibration Due Date The calibration due date appears on the display, as illustrated in Fig. 2-7. A configurable option is available not to display this screen. Fig. 2-7 Calibration Due Date If the Calibration Due Date has expired, the following warning is displayed: Fig.

  • Page 27: Service Due Date (Option)

    OPERATION Alternatively, a configurable option is available to force the user to switch the instrument OFF. 2.2.7 Service Due Date (Option) This configurable option, disabled by default, allows the user to select from a number of options listed, when the service date expires on the instrument.

  • Page 28: Select Calibration Gas (Option)

    USER HANDBOOK 2.2.8 Select Calibration Gas (Option) This configurable option is available to allow the user to measure a different flammable gas from that which was originally used to calibrate the instrument. This action allows the instrument software to compensate and display more accurate readings.

  • Page 29: Sensor Confirmation Check

    OPERATION 2.2.9 Sensor Confirmation Check symbol appears adjacent to each sensor type to confirm that the sensor has been zeroed correctly. Fig. 2-11 Sensor Check Displays If a sensor fails to zero correctly, the display will be red, the audible / visual alarms activate and a symbol is displayed adjacent to the faulty gas type, as illustrated in Fig.
  • Page 30 USER HANDBOOK A faulty LEL sensor zero reading is shown in Fig. 2-13: Fig. 2-13 Acknowledge Alarm A configurable option is available to force the user to switch the instrument off if a zero fault is detected, as shown in Fig. 2-14: Fig.

  • Page 31: Memory Fault

    Fig. 2-15, the instrument has detected a memory fault and is unable to continue. Fig. 2-15 Memory Fault Please contact GMI, as the instrument must be returned for service. 2.2.11 Normal Operating Display When warm-up is completed successfully, the backlight switches off and the normal operating screen is displayed, as illustrated in Fig.

  • Page 32: Switch The Display Backlight On / Off

    USER HANDBOOK 3-Gas 4-Gas Fig. 2-16 Normal Operating Display 2.3 SWITCH THE DISPLAY BACKLIGHT ON / OFF The display screen backlight can be manually switched ON when working in poor lighting conditions. Press the Right Hand (RH) button once to switch the screen backlight ON.
  • Page 33 OPERATION Fig. 2-17 Normal Operating Display Press the Right Hand (RH) button again, while the screen light is ON, to view the maximum gas values stored in the instrument. The example in Fig. 2-18 illustrates the maximum (MAX) gas values stored in a 4-gas instrument. Fig.
  • Page 34 USER HANDBOOK The example in Fig. 2-19 illustrates the minimum (MIN) gas values stored in a 4-gas instrument. Fig. 2-19 Minimum Gas Values These readings can be reset by pressing and holding the Right Hand (RH) button for 2 seconds when either MAX / MIN screen is displayed.

  • Page 35: Alarms Reset Or Acknowledge

    OPERATION 2.6 ALARMS RESET OR ACKNOWLEDGE When the instrument detects an alarm set point has been reached, the audible, visual and vibrating alarm will be activated to alert the user. The alarms are individually programmable to be either Latching, (i.e. alarm will stay on until the user resets by a press and hold of the Right Hand (RH) button when the gas reading has returned within the preset alarm limits),...

  • Page 36: Remote Sampling (With Pump Option)

    USER HANDBOOK 2.7 REMOTE SAMPLING (with pump option) Remote sensing is possible with the internal electric pump option, or by using a hand aspirator. Connect the sample line to the sample connector at the bottom of the instrument. On pumped models, the pump is OFF after start-up. Warning (Hand Aspirator): The PS200 Series is designed to be used with a built-in pump for remote sampling.

  • Page 37: Self Test

    OPERATION Fig. 2-21 Pump Symbol Displayed 2.8 SELF TEST The PS200 series instrument has the ability to perform a self test. The test can be performed any time during normal operation of the instrument. In this mode, the instrument tests the buzzer, LED’s, vibration function and displays both the flammable gas type used for calibration and the current username.

  • Page 38: Switch The Instrument Off

    USER HANDBOOK 2.9 SWITCH THE INSTRUMENT OFF Press and hold both the Left Hand (LH) button and the Right Hand (RH) button to switch the instrument OFF. The instrument display starts a countdown from three (3) to OFF. Both buttons must be pressed together until the display goes blank.

  • Page 39: Manual Bump Test Options

    MANUAL BUMP TEST OPTIONS 3.1 BACKGROUND A bump test verifies sensor response and alarm operation by exposing the instrument to a known concentration of gas. The PS200 series of instruments can be bump tested either manually or automatically (using the Auto Bump / Calibration Station).

  • Page 40: Manual Bump Options

    USER HANDBOOK 3.2 MANUAL BUMP OPTIONS The PS200 series provides two bump test options, QUICK and FULL. The QUICK bump test validates that the alarm threshold has been exceeded for each range. The FULL bump test checks the response of all ranges against set limits.

  • Page 41: Regulator Valve Selection (Pumped Instrument Only)

    MANUAL BUMP TEST OPTIONS Fig. 3-2 Apply Gas Screen (4-gas model) 3.3.1 Regulator Valve Selection (Pumped Instrument Only) Note: This option will only be displayed on a pumped PS200 instrument, which has the pump option enabled. During warm-up, following bump test confirmation, as shown in Fig.

  • Page 42: Applying Test Gas

    USER HANDBOOK 3.4 APPLYING TEST GAS Apply the test gas to the instrument (via the direct flow regulator set to 0.5 l/min), as shown in Fig. 3-4. Fig. 3-4 Bump Test Kit Note: When using a demand or balanced flow regulator valve, the PS200 pump will draw test gas at a flow rate ~ 0.5 l/min.

  • Page 43: Alarm Confirmation

    MANUAL BUMP TEST OPTIONS 3.6 ALARM CONFIRMATION The user is then prompted to confirm if the audible and visual alarms were activated, as shown in Fig. 3-5. Fig. 3-5 Confirm Alarms (4-gas model) Note: The audible, visual and vibrating alarms activate for 2 seconds only (default setting) when activated during the bump test.
  • Page 44 USER HANDBOOK The bump test result including date and time will be automatically datalogged. When the gas readings fall below their alarm set-points, or after 60 seconds, the bump test is complete, and the instrument will automatically return to normal operation. Should any gas range fail the bump test, the alarm confirmation display will be red and a symbol will be displayed as shown...

  • Page 45: Alarms

    ALARMS CAUTION: HIGH OFF-SCALE READINGS MAY INDICATE AN EXPLOSIVE CONCENTRATION. 4.1 GAS ALARMS Gas alarms are enabled when the instrument is switched on and warm-up is complete. All gas ranges have alarm limits that trigger the alarm if the measured gas value exceeds the set level. If a preset alarm level is exceeded, the instrument vibrates, the display backlight illuminates red, the audible alarm sounds, the LED’s flash red and the gas range in alarm flashes on the display.
  • Page 46 USER HANDBOOK ALARM TYPE LATCHING MUTE AUDIBLE VIBRATING VISUAL (RED LED) LEL (HI) Disabled Disabled Siren N / A Slow Flashing LEL (HIHI) Disabled Siren Flashing (HIHI) Disabled Siren Flashing (LO) Disabled Disabled Siren N / A Slow Flashing (LOLO) Disabled Siren N / A...

  • Page 47: Flammable Lel Alarm Limit

    ALARMS 4.1.1 Flammable LEL Alarm Limit Two alarm levels, ‘HI’ and ‘HIHI’, are available, each with different pitch and tone. All alarms are user configurable to meet the specific needs of different companies. 4.1.2 Over-Range Flammable Gas Alarm Function The flammable sensor is designed for use in the LEL range only.
  • Page 48 USER HANDBOOK Note: The toxic gas alarm levels – instantaneous, STEL and LTEL are set at the time of instrument manufacture. It is important that the user ensures that the levels are in accordance with their company’s alarm levels and with health and safety legislation.

  • Page 49: Acknowledge Gas Alarms

    ALARMS 4.2 ACKNOWLEDGE GAS ALARMS Once in a safe area, or the gas reading has returned within the preset limits, press and hold the Right Hand (RH) button to mute the alarm sounder and extinguish the gas LED’s. 4.3 MUTE ALARMS If configured, a muted alarm will be silenced for 60 seconds.
  • Page 50 USER HANDBOOK If the LEL sensor is exposed to a gas reading above 100% LEL, the instrument vibrates, the displayed value changes to 4 rising arrows, the backlight illuminates red, the tone of the audible alarm changes, and the visual alarm LED’s flash quickly.

  • Page 51: Fault Alarms

    ALARMS Note: To avoid accidental switch-off in this dangerous state, the off cycle is increased to 10 seconds. 4.5 FAULT ALARMS Refer to Alarms Table, in paragraph 4.1 of this handbook, to identify the audible / visual indication for any of the following faults.

  • Page 52: Zero Fault

    Switch the instrument OFF and then switch ON again in fresh air. If the fault persists, return the instrument to a GMI approved Service / Repair facility. The instrument can however still be used to detect and alarm on the other sensor(s) fitted.

  • Page 53: Sensor Fault

    ALARMS The faulty sensor will cause the instrument to display a flashing spanner symbol to warn the user that this sensor is not working correctly, as shown in Fig. 4-7: Fig. 4-7 Zero Fault 4.5.3 Sensor Fault Note: The PS200 instrument features continual toxic sensor integrity detection.
  • Page 54 LEL gas value as shown in Fig. 4-10, leave instrument on for 30 to 60 minutes then switch instrument OFF and ON again. If fault remains, return instrument to a GMI approved Service / Repair facility. 4-10...

  • Page 55: Flow Fault (Pumped Instruments Only)

    ALARMS Fig. 4-10 Check Fault 4.5.4 Flow Fault (Pumped Instruments Only) If a flow fail or sample fault exists, a ‘FLOW FAULT’ warning is displayed, as illustrated in Fig. 4-11. The display will be red and both the audible alarm and red LED’s will be activated. Check sample line, filter or probe for blockage, if applicable.

  • Page 56: Calibration Required

    USER HANDBOOK 4.5.5 Calibration Required If the instrument requires calibration then during warm-up, a ‘CALIBRATION OVERDUE’ warning is displayed. The instrument will operate using its previous calibration settings, however, as the sensors response may have diminished, the instrument should be recalibrated and tested. Fig.

  • Page 57: Calibration Expired

    ALARMS Alternatively, during warm-up, a configurable option is available to force the user to switch OFF the instrument. The following ‘CALIBRATION REQUIRED’ warning is displayed and the instrument is unable to continue without recalibration. Fig. 4-13 Calibration Required 4.5.6 Calibration Expired During normal operation of the instrument where the calibration date has expired, a ‘CAL EXPIRED’...
  • Page 58 USER HANDBOOK 4-14...

  • Page 59: Operator Maintenance

    OPERATOR MAINTENANCE 5.1 CLEANING CAUTION: Do not use polishes containing silicon or solvent to clean the instrument as these may damage the flammable gas sensor (if fitted). Do not use abrasive materials or strong volatile chemical solutions as these could damage the impact resistant casing. The outer, impact resistant, casing of the PS200 Series instrument may be cleaned using a non-abrasive moist cloth.

  • Page 60: Replace Sensor Hydrophobic Filter

    USER HANDBOOK 5.2.1 Replace Sensor Hydrophobic Filter ® Using a No.1 Pozidrive screwdriver, unscrew the captive screw and remove the filter cover by sliding it away from the display screen to disengage the locating lugs from the corresponding slots in the filter recess. CAPTIVE SCREW LOCATING LUGS FILTER COVER...

  • Page 61: Replace Sample Inlet (Dust) Filter

    OPERATOR MAINTENANCE Fit a new Hydrophobic Filter (Part No. 64254). Carefully place the hydrophobic filter in position over the instrument sensors, locating filter pin holes over locating pegs in instrument filter recess. Place the filter cover over the filter recess then carefully slide it towards the display screen until the lugs are located in the mating slots in the instrument filter recess.

  • Page 62: In-Line Hydrophobic Filter (Accessory)

    USER HANDBOOK ® Using a No.1 Pozidrive screwdriver, unscrew then remove the 2 Pozi Pan screws then remove the inlet nozzle complete with inlet filter located in the inner recess of the nozzle. Push the sample inlet filter disc out of inner recess by inserting a matchstick, or similar, into the inlet nozzle outer recess..
  • Page 63 OPERATOR MAINTENANCE Fig. 5.3 In-line Hydrophobic Filter To replace the filter, proceed as follows: Unscrew the luer fitting from one side of the filter in a counter clockwise direction, detach the tubing from the other side then remove the hydrophobic filter. Note: If re-fitting the same filter, make sure that filter direction of flow orientation is maintained.
  • Page 64 USER HANDBOOK...

  • Page 65: Recharge Battery

    RECHARGE BATTERY 6.1 RECHARGE INSTRUMENT BATTERY Use only GMI chargers to recharge PS200 series instruments. WARNING: Charging is only permitted in a non- hazardous area. CAUTION: Switch the instrument off when charging the internal battery. The battery should be recharged in the following situations: •...

  • Page 66: Recharge Instrument Using The Charging / Comms Clip

    USER HANDBOOK Charging up to five (5) instruments in the 5-Way Charger (Part No. 64138) supplied complete with universal PSU (Part No. 64299). Using the 12V / 24V - USB Vehicle Charging Adaptor (Part No. 64248). Using the In-Vehicle Charging Cradle (part no. 64491) supplied complete with USB Vehicle Charging Adaptor.
  • Page 67 RECHARGE BATTERY To connect charging / comms clip to the instrument, push the clip in direction of arrows as illustrated, engaging tongue on clip in instrument locating slot until firmly seated. Fit standard type USB connector to power source, as selected from the list.

  • Page 68: Recharge Instrument Using The 5-Way Charger

    USER HANDBOOK 6.1.2 Recharge Instrument using the 5-way Charger The 5-way charger (Part No. 64138) allows the user to charge up to five PS200 instruments simultaneously. Fig. 6-2 5-Way Charger The 5-way charger accommodates up to five PS200 series instrument(s) with or without protective rubber boot fitted, as illustrated in Fig.

  • Page 69: Recharge Instrument Using The 12V / 24V

    The 12V to 24V DC USB In-Vehicle Charging Adaptor (Part No. 64248), as illustrated in Fig. 6-3, is designed to provide the GMI PS200 series instrument with corrected power for battery charging. The power transformer is a switch mode dc transformer operating from a 12 to 24 volt dc supply.
  • Page 70 USER HANDBOOK CHARGING COMMS CLIP (Part No. 64260) MINI-USB to USB CABLE (incl. in Part No. 64247 Mains Adaptor) Fig. 6-4 Connect Cable to Charging / Comms Clip Note: The charging adaptor is designed to fit a standard accessory socket that may vary in size in certain vehicle types.

  • Page 71: Recharge Instrument Using The In-Vehicle Charging Cradle

    RECHARGE BATTERY 6.1.4 Recharge Instrument using the In-Vehicle Charging Cradle The charging cradle (Part No. 64491) enables the instrument battery to be charged by connecting the USB cable to a vehicle power source. Either, via an inbuilt USB socket or via the vehicle charging adaptor (supplied), as illustrated in Fig.
  • Page 72 USER HANDBOOK Alligator Clip Open Charging Contacts Location Blade Fig. 6-6 Connect PS200 to the Charging Cradle Close the alligator clip, clamping onto the assembly frame, to hold the instrument in position. The PS200 will now indicate charging. When charging is complete, unfasten the alligator clip and lift the PS200 upwards to remove from the charging cradle.

  • Page 73: Calibration

    PC. Note: The detailed calibration methods, consisting of both hardware and software, are manufactured by GMI. For further details contact GMI or an authorised distributor.

  • Page 74: Calibration Validity

    Under normal operating conditions a 12 month period can be expected. This is no guarantee, however, as the precise application of the product is unknown to GMI. Individual codes of practice will dictate shorter periods. Regular calibration establishes a pattern of reliability and enables the calibration check period to be modified in line with operational experience.

  • Page 75: Accessories

    ACCESSORIES Accessories supplied with the instrument Part Number Description 64260 Charging / Comms Clip (mini-USB) 64247 Mains Adaptor (c/w USB / mini-USB cable) 64190 User CD-ROM (incl. Handbook) 64172 Quick Operating Instructions 64136 3.0 metres (9ft.9in.) PVC Sample Line Tubing & Connector - Pumped Instruments Only.
  • Page 76 USER HANDBOOK Part Number Description 66478 Hand Aspirator c/w 3.0 metres (9ft.9in.) tubing 64118 PVC Sample Line Tubing - per metre 66112 Sample Line Extender 66545 Ball Float Charging Accessories Part Number Description 64138 5-Way Charger (c/w Universal PSU 64299) 64491 In-Vehicle Charging Cradle (c/w 64248)
  • Page 77 ACCESSORIES Gas Kits for Auto Bump / Calibration Station (Cylinder / Regulator / Tubing) Part Number Description 99146 Combi Test Gas Cylinder (2.5% CH , 500ppm CO, 50ppm S, 18% O , balance N 64060 Test Gas Kit (6 mm fittings) (Combi Test Gas Cyl. 99146, On Demand Flow Regulator c/w 6 mm tubing).
  • Page 78 USER HANDBOOK...

  • Page 79: Additional Information

    ADDITIONAL INFORMATION 9.1 TRAINING Training courses are available on all GMI products. Contact GMI Marketing Department for further details: Tel: +44 (0) 141 812 3211 Fax: +44 (0) 141 812 7820 e-mail: sales@gmiuk.com 9.2 WEBSITE Visit GMI web site at...
  • Page 80 USER HANDBOOK...

  • Page 81: Typical Operating Parameters

    TYPICAL OPERATING PARAMETERS Typical operating parameters are as follows: Range Resolution Range 0 to 100% Oxygen 0 to 25% 0.1% Carbon 0 to 1000 ppm 1 ppm Monoxide Hydrogen 0 to 100 ppm 1 ppm Sulphide PHYSICAL PROPERTIES Weight: Without Pump: 215 g (7.6oz.) With Pump: 230 g (8oz.)

  • Page 82: Typical Flow Rate Information

    USER HANDBOOK TYPICAL FLOW RATE INFORMATION Pumped Instruments: Nominal pump flow rate is 0.5 to 0.7 litres per min. Max. 30 metres (97ft.) sample line Typical flow fail rate is 0.1 to 0.2 litres per min. WARM-UP / STABILIZATION TIME <...
  • Page 83 LEL SENSOR TYPES There are three LEL sensor types available for the PS200 instrument. The following table shows the benefits of each sensor and the combustible gases the sensors will detect: Benefit Gases Detected Certification Division / Zone Sensor Gas Groups Standard Detects C1 - C8 Hydrocarbons...
  • Page 84 USER HANDBOOK...
