MLGFK0001

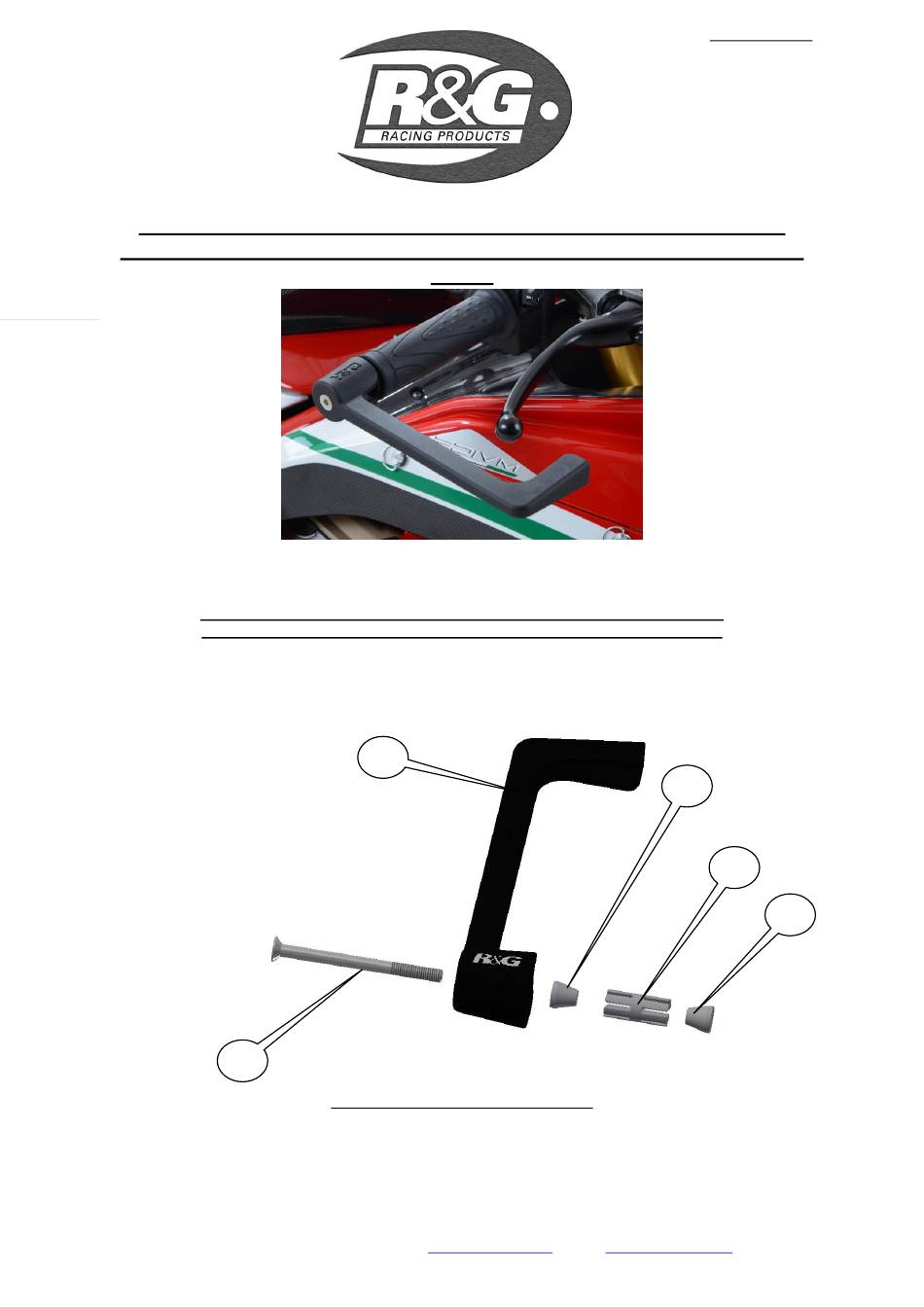

Fitting Instructions FOR MLGFK0001 LEVER-GUARD FITTING KIT
TO FIT HOLLOW BARS WITH INTERNAL DIAMETER OF 13-21mm
ONLY
Page | 1
PLEASE ENSURE THAT THIS PRODUCT WILL FIT BEFORE ANY REMOVAL OR
MODIFICATIONS OF PARTS ARE MADE TO YOUR MOTORCYCLE
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT.
Please note that the way the kit is packed does not necessarily represent the way of mounting to
the bike
T
(
)
HE PARTS SHOWN MAY BE REPRESENTATIVE ONLY
FOR CLARITY OF INSTRUCTIONS ONLY
2
3
4
5
1

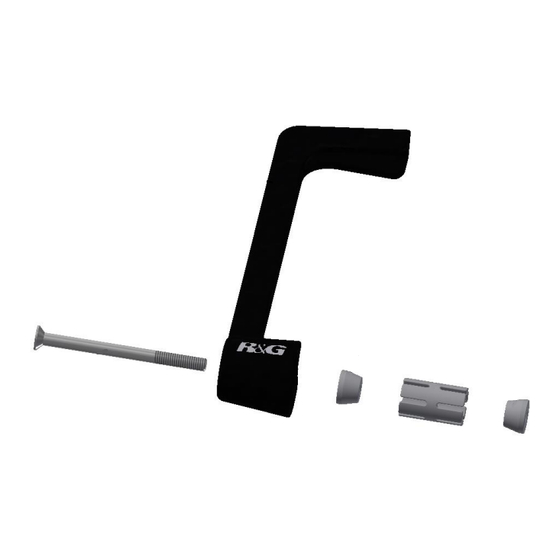

SMALLER TUBE SIZE ASSEMBLY
R&G Racing
Unit 1 Shelleys Lane, East Worldham, Alton, Hants GU34 3AQ
Tel: +44 (0)1420 89007 Fax: +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G MLGFK0001
Summary of Contents for R&G MLGFK0001
- Page 1 MLGFK0001 FITTING INSTRUCTIONS FOR MLGFK0001 LEVER-GUARD FITTING KIT TO FIT HOLLOW BARS WITH INTERNAL DIAMETER OF 13-21mm ONLY Page | 1 PLEASE ENSURE THAT THIS PRODUCT WILL FIT BEFORE ANY REMOVAL OR MODIFICATIONS OF PARTS ARE MADE TO YOUR MOTORCYCLE THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED BELOW.
- Page 2 MLGFK0001 Page | 2 LARGER TUBE SIZE ASSEMBLY LEGEND ITEM 1 = M6x90mm LONG COUNTER-SUNK BOLT (x1). ITEM 2 = MOULDED LEVER GUARD (NOT INCLUDED IN FITTING KIT) (LG0003). ITEM 3 = SMALLEST CONE SPACER (S0840) (x1). ITEM 4 = SMALLEST EXPANDING SPACER (S0838) (x1).
- Page 3 MLGFK0001 If bars are between 18-21mm internal diameter Place the largest (unthreaded) tapered spacer (item 6) over the exposed thread (so it sits against the Lever Guard). Place the largest expander (item 7) over the exposed thread (so it sits against the tapered spacer just fitted).
- Page 4 MLGFK0001 NOTICE DE MONTAGE POUR MLGFK0001 KIT GARDE LEVIER POUR MONTAGE SUR UN DIAMETRE DE 13-21mm UNIQUEMENT Page | 4 ASSUREZ VOUS DE LA COMPATIBILITE DU PRODUIT AVANT DE DEMONTER OU DE MODIFIER QUOI QUE CE SOIT SUR LA MOTO.
- Page 5 MLGFK0001 Page | 5 ASSEMBLAGE POUR TUBE DE PLUS GRANDE TAILLE. LEGENDE ARTICLE 1 = M6x90mm BOULON (x1). ARTICLE 2 = GARDE LEVIER ( NON INCLUS ) (LG0003). ARTICLE 3 = PETITE ENTRETOISE (S0840) (x1). ARTICLE 4 = PETITE ENTRETOISE D’EXTENSION (S0838) (x1).
- Page 6 MLGFK0001 Placer l’ensemble dans le guidon et positionnez de façon à ce que le garde ne puis en aucun cas toucher une autre partie de la moto lorsque le guidon est verrouillé au maximum d’un coté ou de l’autre de la moto.
