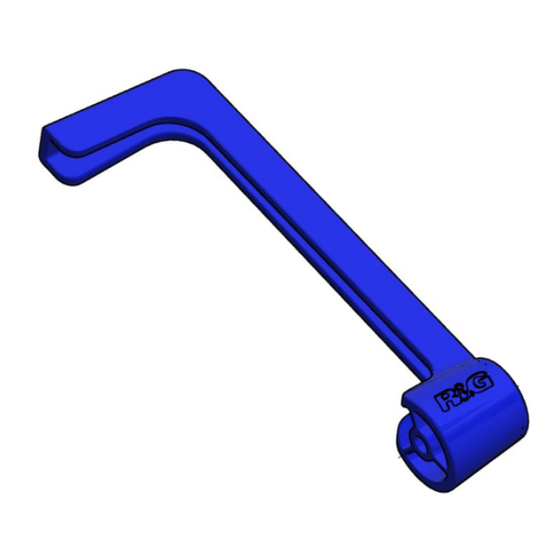

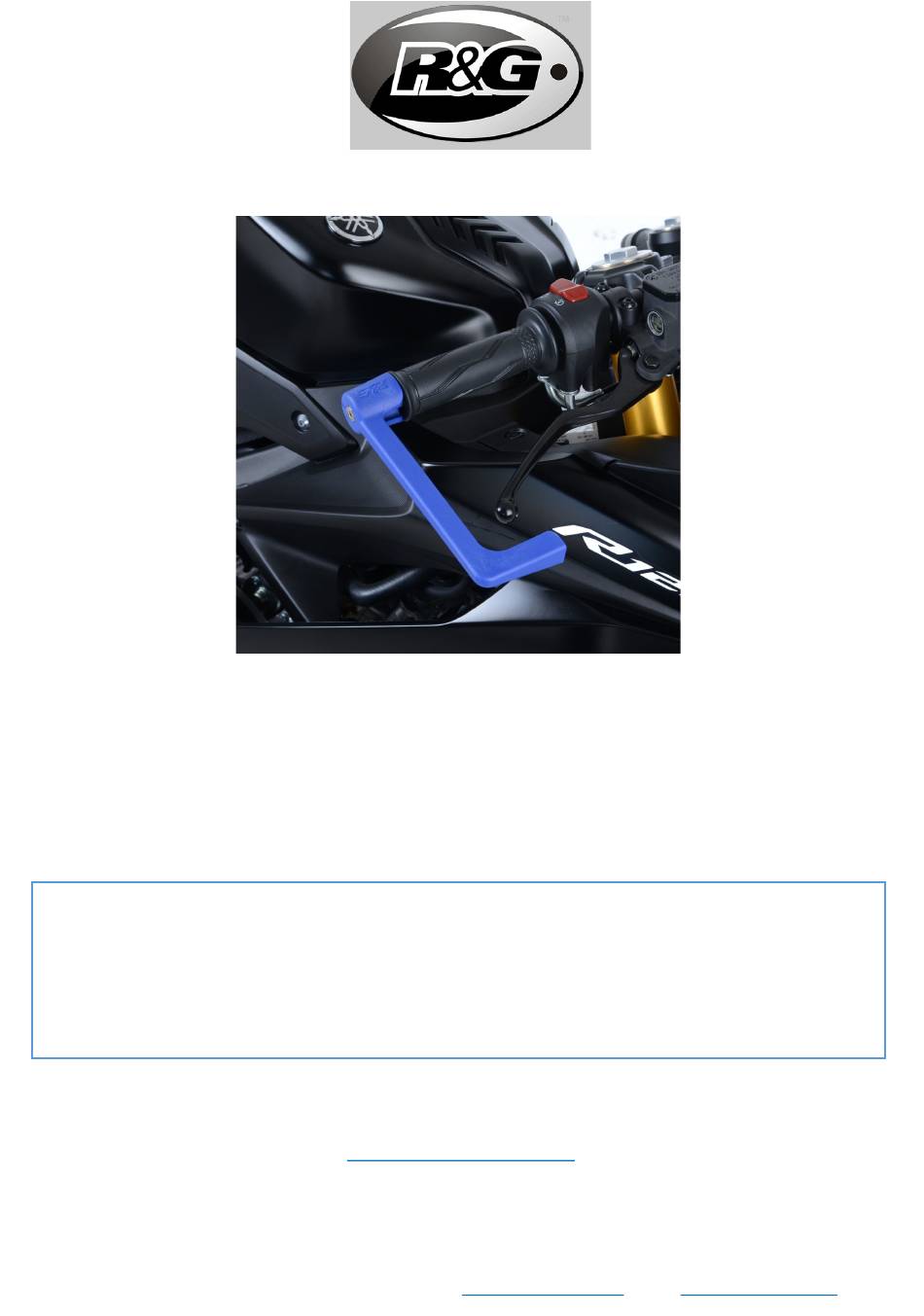

FITTING INSTRUCTIONS FOR MLGFK0016 MOULDED LEVER GUARD FITTING KIT
YAMAHA YZF-R6 2006—2016
.
THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE
.
SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY
.
DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT
.
PLEASE READ ALL INSTRUCTIONS BEFORE PROCEEDING
IF IN ANY DOUBT WHEN FITTING OUR PRODUCTS, CONSULT ONE OF OUR DEALERS
OR HAVE FITTED BY A QUALIFIED TECHNICIAN.
PLEASE NOTE THAT THE WAY THE KIT IS PACKED DOES NOT NECESSARILY REPRESENT THE WAY OF
.
MOUNTING TO THE BIKE
,
IN THE EVENT OF RUBBER WASHERS BEING USED TO HOLD COMPONENTS ONTO BOLTS
.
THESE RUBBER WASHERS CAN BE THROWN AWAY
DIGITAL COPIES OF THESE INSTRUCTIONS ARE AVAILABLE FROM:
WWW.RG-RACING.COM
R&G Racing
Unit 1, Shelleys Lane, East Worldham, Alton, Hampshire GU34 3AQ.
Tel: +44 (0)1420 89007 Fax +44 (0)1420 87301
www.rg-racing.com
Email:
info@rg-racing.com
Advertisement
Table of Contents
Related Manuals for R&G MLGFK0016
Summary of Contents for R&G MLGFK0016
- Page 1 MLGFK0016 PAGE 1 OF 9 FITTING INSTRUCTIONS FOR MLGFK0016 MOULDED LEVER GUARD FITTING KIT YAMAHA YZF-R6 2006—2016 THIS KIT CONTAINS THE ITEMS PICTURED AND LABELLED OVER PAGE SOME PARTS MAY BE SHOWN FOR CLARITY OF INSTRUCTIONS ONLY DO NOT PROCEED UNTIL YOU ARE SURE ALL PARTS ARE PRESENT...
-
Page 2: Exploded Assembly Diagram
MLGFK0016 PAGE 2 OF 9 TOOLS REQUIRED GENERAL TORQUE SETTINGS • 4mm A/F Allen Tool M4 BOLT = 8Nm M5 BOLT = M6 BOLT = M8 BOLT = 20Nm 0 BOLT = 40Nm M12 BOLT = 40Nm LEGEND ITEM DESCRIPTION... -
Page 3: Fitting Instructions
MLGFK0016 PAGE 3 OF 9 FITTING INSTRUCTIONS • Remove the OEM bar-end. • Assemble the lever guard as shown in the diagram on page 2 by passing the M6 countersunk bolt (item 3) through the lever guard (item 1) so the head of the bolt sits into the countersink of the lever guard. - Page 4 MLGFK0016 PAGE 4 OF 9 NOTICE DE MONTAGE MLGFK0016 KIT DE PROTECTION POIGNEE MOULEE YAMAHA YZF-R6 2006—2016 E KIT CONTIENT LES ARTICLES EN PHOTO ET ETIQUETTES SUR LA PAGE LES PARTIES PRESENTÉES PEUVENT ETRE UNIQUEMENT REPRESENTATIVES POUR LA CLARTE DES INSTRUCTIONS E PAS ROCÉDER AU MONTAGE AVANT DE VOUS ÊTRES ASSURE QUE TOUTES LES PIECES SOIENT PRÉSENTES...
-
Page 5: Outils Requis
MLGFK0016 PAGE 5 OF 9 OUTILS REQUIS VALEURS DE SERRAGE • Clé Allen 4mm M4 BOULON = 8Nm M5 BOULON = M6 BOULON = M8 BOULON = 20Nm 0 BOULON = 40Nm M12 BOULON = 40Nm LEGENDE ARTICLE DESCRIPTION ARTICLE 1... -
Page 6: Notice De Montage
MLGFK0016 PAGE 6 OF 9 NOTICE DE MONTAGE • Retirez l’embout de guidon d’origine. • Assemblez la protection comme indiqué sur le schéma de la page 2 en faisant passer le bou- lon à M6 (article 3) à travers la protection (article 1) de sorte que la tête du boulon se trou- ve dans le fraisage de la protection. - Page 7 MLGFK0016 PAGE 7 OF 9 MONTAGEANLEITUNG FÜR MLGFK0016 BREMSHEBELSCHUTZ YAMAHA YZF-R6 2006—2016 EILE SIND AUF DEN NÄCHSTEN EITEN ABGEBILDET UND GEKENNZEICHNET IE ABGEBILDETEN EILE DIENEN LEDIGLICH ZUR RKLÄRUNG Ü BERPRÜFEN IE ZUERST DASS ALLE EILE VORHANDEN SIND ESEN IE DIE...
- Page 8 MLGFK0016 PAGE 8 OF 9 SIE BENÖTIGEN FOLGENDES WERKZEUG ALLGEM. ANZUGSDREHMOMENTE M4 SCHRAUBE = 8Nm • 4mm A/F Inbusschlüssel M5 SCHRAUBE = 12Nm M6 SCHRAUBE = 15Nm M8 SCHRAUBE = 20Nm M10 SCHRAUBE = 40Nm M12 SCHRAUBE = 40Nm LIEFERUMFANG ARTIKEL NR.
- Page 9 MLGFK0016 PAGE 9 OF 9 MONTAGEANLEITUNG • Entfernen Sie das original Lenkerende. • Den Bremshebelschutz zusammenbauen wie in der Zeichnung auf Seite 2 abgebildet. Die M6 Senkschraube (Artikel 3) durch den Bremshebelschutz (Artikel 1) führen, so dass der Schraubenkopf in der Senkung des Bremshebelschutz sitzt.
