INSTALLATION
INSTRUCTIONS
PARTS LIST
Aluminum wheel
(The illustration may differ from the actual wheel.)

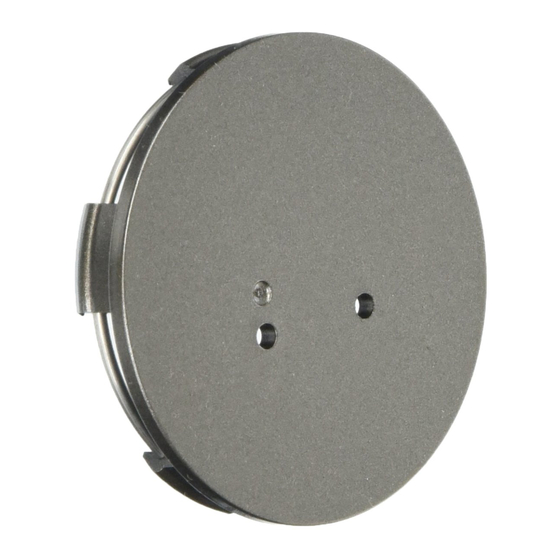

Wheel center cap
(The illustration may differ from the actual center cap.)
Center cap emblem
2
Push nuts
Tire pressure information label
TPMS Information
(Give this information to your customer.)
© 2007 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
19" ALUMINUM WHEEL
P/N 08W19-TE0-100
Supplemental information
Parts for TPMS sensor assembly
Tire pressure sensor assembly
Washer
Valve cap
Valve nut
TOOLS AND SUPPLIES REQUIRED
Rachet wrench
11 mm Socket
Torque wrench
Isopropyl alcohol
Shop towel
HDS
Snap-on TPMS initialize tool
AII 37562 (0709)
Application
2008 ACCORD
2-DOOR
08W19-TE0-1000-91
Publications No.
AII 37562
Issue Date
SEP 2007
1 of 9
Advertisement
Related Manuals for Honda 08W19-TE0-100
Summary of Contents for Honda 08W19-TE0-100
- Page 1 (Give this information to your customer.) TOOLS AND SUPPLIES REQUIRED Rachet wrench 11 mm Socket Torque wrench Isopropyl alcohol Shop towel Snap-on TPMS initialize tool 1 of 9 © 2007 American Honda Motor Co., Inc. – All Rights Reserved. AII 37562 (0709) 08W19-TE0-1000-91...
-
Page 2: Specifications
60°F (15°C) or above. • To allow the adhesive to cure, do not wash the vehicle for 24 hours. 2 of 9 AII 37562 (0709) © 2007 American Honda Motor Co., Inc. – All Rights Reserved. - Page 3 3 of 9 © 2007 American Honda Motor Co., Inc. – All Rights Reserved. AII 37562 (0709)
- Page 4 Owner’s Manual. To properly attach the page, refer to “To the dealer:” attached to the “Supplemental Information” page. SNAP-ON TPMS SENSOR INITIALIZER TOOL 6912020B 4 of 9 AII 37562 (0709) © 2007 American Honda Motor Co., Inc. – All Rights Reserved.
- Page 5 Check that the current air pressure setting shown on HDS is correct and “Reprogramming the threshold data for non-standard tires has completed successfully” is shown. After programming, write the tire pressure indicated on the HDS in the service history page for Honda Accessory Wheels, then click the check icon.
- Page 6 • Be sure explain the contents of the “Supplemental Information” to your customer before delivering the vehicle. • Be sure to give the TPMS information to your customer. 6 of 9 AII 37562 (0709) © 2007 American Honda Motor Co., Inc. – All Rights Reserved.
- Page 7 If the TPMS control is ever replaced and the vehicle has inch up wheels, the low pressure sensor threshold must be changed, once the TPMS control unit is installed follow steps 10 to 14 (which includes memorizing ID and programming for accessory tires). 7 of 9 © 2007 American Honda Motor Co., Inc. – All Rights Reserved. AII 37562 (0709)
- Page 8 4. Go back to the Mode Menu, click on Threshold Rewriting. 5. Click on Reprogramming for standard tires and follow the screen prompts. 6. After programming, write the standard tire pressure in the service history page for Honda Accessory Wheels, then click the check button.
- Page 9 Connect the HDS to the vehicle and make sure the correct VIN is populated and enter the mileage. At the System Selection Menu, click TPMS. Click on Threshold Rewriting. Click on Threshold Data Check. DATA LINK CONNECTOR CODE 7111120Y 9 of 9 © 2007 American Honda Motor Co., Inc. – All Rights Reserved. AII 37562 (0709)
