INSTALLATION
INSTRUCTIONS

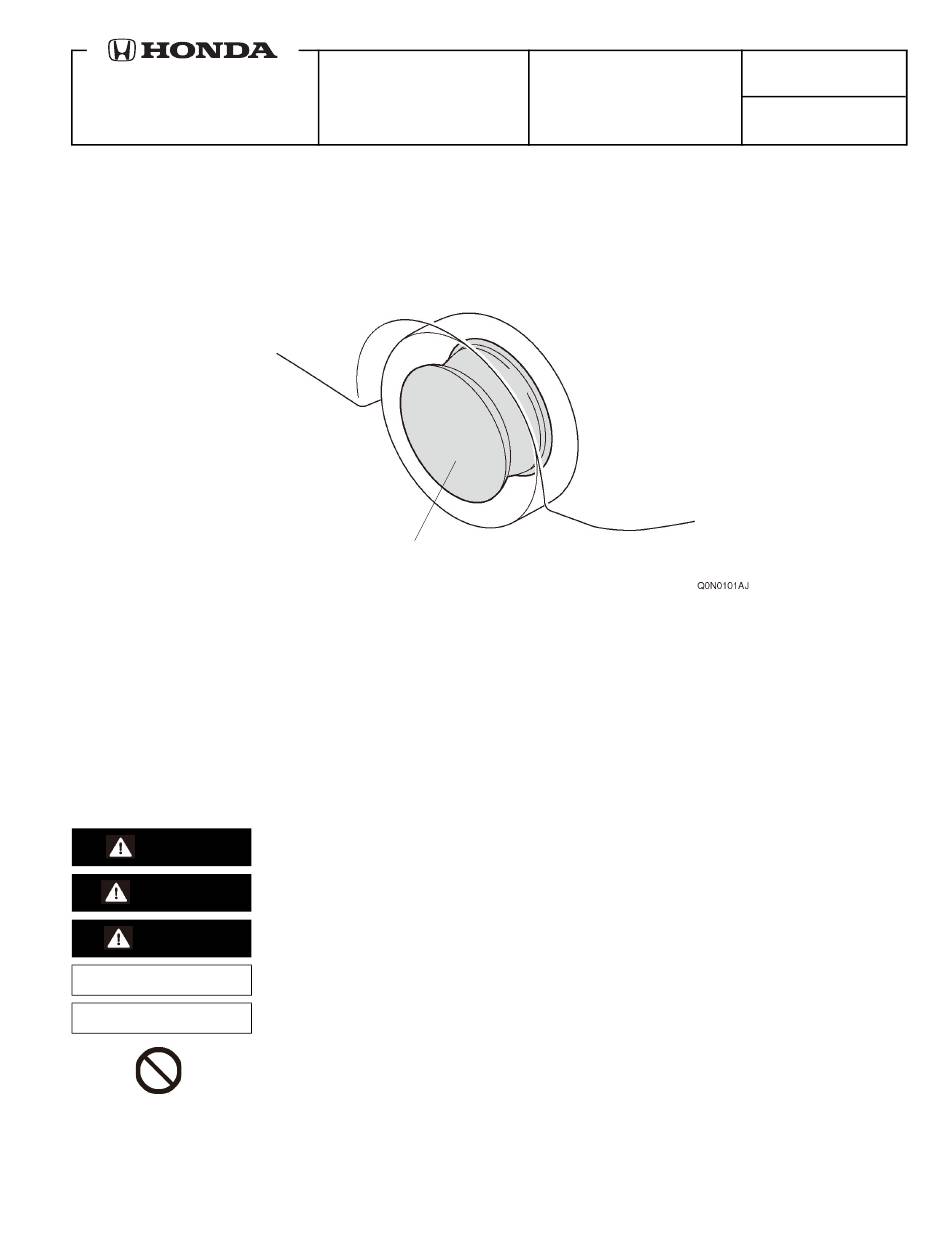

GENERAL VIEW
FOR YOUR SAFETY (Read carefully.)
Warning Symbols
Safety: Your safety, and the safety of others, is important. To help you make informed decisions about service procedures,
we have provided safety messages where appropriate. Of course, it is not practical or possible to warn you about all the
hazards associated with servicing a vehicle - you must use your own good judgment.
You will find important safety messages preceded by one of the following symbols:
*All symbols are not used in all installation instructions.
DANGER
WARNING
CAUTION
NOTICE
NOTE
© 2022 American Honda Motor Co., Inc. – All Rights Reserved.
www.collegehillshonda.com
Accessory
20" ALUMINUM WHEEL
ALUMINUM
WHEEL
You will be killed or seriously hurt if you do not follow the instructions.
You can be killed or seriously hurt if you do not follow the instructions.
You can be hurt if you do not follow the instructions.
Gives advice to prevent damage to the product, vehicle, the environment or other property.
Gives helpful information or instructions to be followed when installing this product.
Indicates a prohibited action.
Application
2023 PILOT
MODEL SERIES
AII20841-36
Publications No.
VERSION 1
Issue Date
NOV 2022
1 of 7
08W20-T90-1000-90
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Honda 08W20-T90-100B
Summary of Contents for Honda 08W20-T90-100B
- Page 1 Gives advice to prevent damage to the product, vehicle, the environment or other property. NOTE Gives helpful information or instructions to be followed when installing this product. Indicates a prohibited action. 1 of 7 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. AII20841-36 08W20-T90-1000-90 www.collegehillshonda.com...
- Page 2 • Be careful not to damage the vehicle or the parts. • When using wheel balancer, refer to the Owner’s Manual of used machinery. • The illustrations may differ slightly from the actual accessory. 2 of 7 AII20841-36 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. www.collegehillshonda.com...
-
Page 3: Parts List
(P/N 08W20-T90-P00A) (P/N 08W20-T90-100) center cap.) (P/N 08W20-T90-P00B) (P/N 08W20-T90-100A) (The illustration may (P/N 08W20-T90-100B) differ from the actual center cap.) (May not be used) 3 of 7 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. AII20841-36 www.collegehillshonda.com... -
Page 4: Required Tools And Supplies
20 x 8J (inset 50) Tire size 255/50R20 105H Bolt hole PCD 120 (5 holes) Front 35 psi (240 kPa) Tire pressure Rear 35 psi (240 kPa) 4 of 7 AII20841-36 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. www.collegehillshonda.com... -
Page 5: Installation
Insert the TPMS sensor. AREA Install the valve insert tool. Remove the valve cap. VALVE OF THE VALVE INSERT TOOL TPMS SENSOR (Screw.) VALVE CAP 5 of 7 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. AII20841-36 www.collegehillshonda.com... - Page 6 Install the valve cap. pressure caution plate. 10. Install the wheel center caps. 11. Install the wheels. NOTE The wheel nut torque is 94 lb-ft (127 N·m). 6 of 7 AII20841-36 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. www.collegehillshonda.com...
- Page 7 14. Drive the vehicle for at least 40 seconds at a speed of 15 mph (24 km/h) or more. All sensor IDs will be automatically memorized. 15. Check that all parts are installed properly. 7 of 7 © 2022 American Honda Motor Co., Inc. – All Rights Reserved. AII20841-36 www.collegehillshonda.com...
