INSTALLATION
INSTRUCTIONS

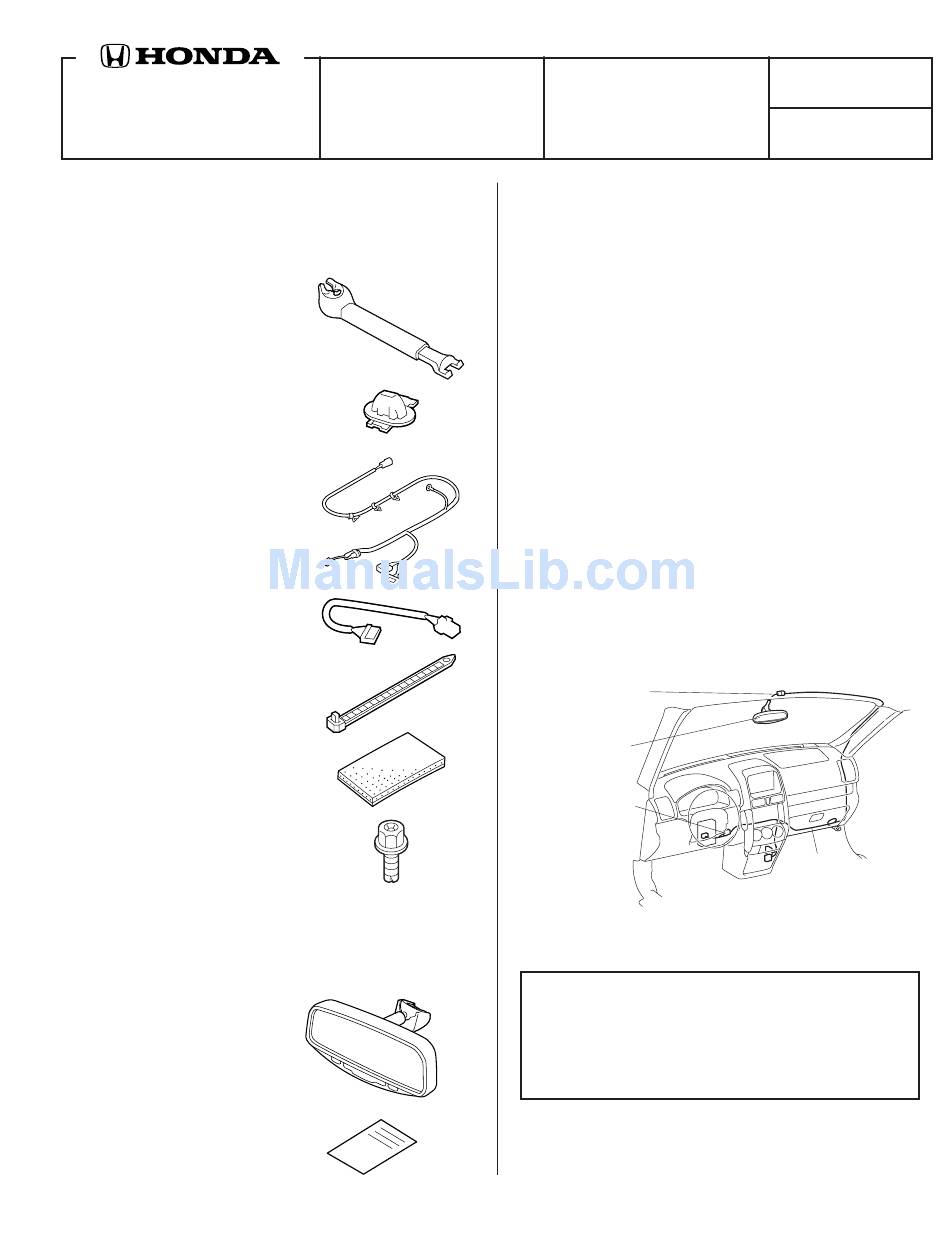

PARTS LIST
Automatic Day/Night Mirror Attachment Kit
(sold separately)
P/N 08V03-S9A-101
Upper and lower covers
Clip
Day/night mirror harness
Mirror harness
10 Wire ties
2 EPT sealer
Ground bolt
Automatic Day/Night Mirror Kit
(sold separately)
P/N 08V03-S9A-100B
Day/Night mirror
Owner's Manual
© 2005 American Honda Motor Co., Inc. - All Rights Reserved.
Accessory
AUTOMATIC DAY/NIGHT
MIRROR
ATTACHMENT KIT
TOOLS AND SUPPLIES REQUIRED
Phillips screwdriver
Flat-tip screwdriver
Small flat-tip screwdriver
10 mm Combination wrench
Ratchet
8 mm, 10 mm and 14 mm Sockets
T20 and T25 Torx bits
Diagonal cutters
Torque wrench
Isopropyl alcohol
Shop towel
Piece of steel wire
Tape measure
Scissors
Electrical tape
Pliers
Illustration of the Day/Night Mirror Installed on
the Vehicle
INSTALLATION
1.
2.
AII 30556 (0509)
Application
2005-2006 CR-V
MIRROR
HARNESS
DAY/NIGHT
MIRROR
FUSE CASE
(2A)
Customer Information: The information in this
installation instruction is intended for use only by
skilled technicians who have the proper tools,
equipment, and training to correctly and safely add
equipment to your vehicle. These procedures
should not be attempted by "do-it-yourselfers."
Make sure you have the anti-theft code for the radio,
then write down the radio station presets.
Disconnect the negative cable from the battery.
Publications No.
AII 30556
Issue Date
SEP 2005
DAY/NIGHT
MIRROR
HARNESS
4202061H
1 of 10
08V03-S9A-1000-91

Advertisement

loading
Need help?

Need help?

Do you have a question about the 08V03-S9A-100B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Honda 08V03-S9A-100B

  • Page 1 Day/night mirror harness Mirror harness 10 Wire ties 2 EPT sealer Ground bolt Automatic Day/Night Mirror Kit (sold separately) P/N 08V03-S9A-100B Day/Night mirror Owner’s Manual © 2005 American Honda Motor Co., Inc. - All Rights Reserved. Accessory AUTOMATIC DAY/NIGHT MIRROR...
  • Page 2 Remove the lens from the roof console (four retaining tabs). ROOF CONSOLE LENS Remove the roof console (four screws, and unplug one connector). SCREW 2 of 10 Remove the mirror by sliding the mirror up. RETAINING TABS (4) Remove the sunvisor holders. Turn the holder 90°, then pull it out.
  • Page 3 Remove the cap from the right sunvisor (four retaining tabs). RIGHT SUNVISOR TORX SCREW Remove the right sunvisor (two T25 Torx screws). Remove the door opening weatherstrip from the right front pillar in the area shown. Remove the right front pillar trim (2 clips). CLIP Pull out part way CLIP...
  • Page 4 13. Remove the right kick panel (pull to release the two clips). RIGHT KICK PANEL CLIP 14. Turn the knob clockwise, and remove the driver’s dashboard under cover (one clip). HOLDER CLIP DRIVER’S DASHBOARD UNDER COVER 4 of 10 15. Remove the driver’s dashboard lower cover: •...
  • Page 5 17. Remove two self-tapping screws that fasten the heater A/C control panel to the dashboard. Pull the heater A/C control panel out toward you to release the four clips. Unplug the vehicle connector, and remove the heater A/C control panel. SELF-TAPPING SCREW HEATER A/C...
  • Page 6 21. On M/T vehicles only, remove the two side covers (four tabs) from the center console. CLIP Pull SIDE COVER TABS (4) FRONT CONSOLE TABS (4) SIDE COVER SELF-TAPPING SCREWS (7) 22. On M/T vehicles only, remove the two clips and seven self-tapping screws, and pull the front console out toward you to release four clips.
  • Page 7 25. Route the mirror harness through the grooves of the upper and lower covers. Attach the lower cover to the stay of the mirror. MIRROR ROOF LINING HARNESS UPPER LOWER COVERS 26. Slide the upper cover up and under the roof lining as shown.
  • Page 8 31. Route the day/night mirror harness 4-pin connector with fuse case upwards to the vehicle harness, and then along the vehicle harness to the fuse box through the dashboard pocket opening. DAY/NIGHT VEHICLE HARNESS MIRROR HARNESS FUSE CASE FUSE DAY/NIGHT MIRROR HARNESS SHIFT...
  • Page 9 35. Tape a piece of steel wire to the 4-pin connector end of the day/night mirror harness. Route the harness end up along the instrument panel side bracket, and out through the clearance between the right front pillar and the instrument panel as shown.
  • Page 10 42. Secure the day/night mirror harness to the vehicle harness with four wire ties. WIRE TIE VEHICLE HARNESS WIRE TIE 43. Secure the day/night mirror harness to the vehicle harness with three wire ties. DAY/NIGHT MIRROR HARNESS 10 of 10 44.
