Honda 08L03-E09-100C Installation Instructions Manual

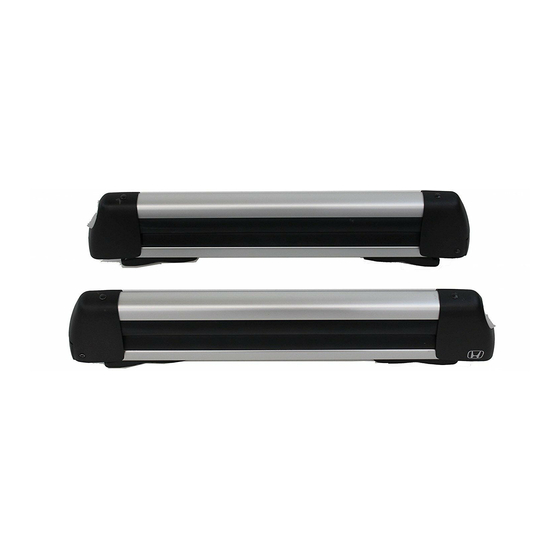

Ski snowboard attachment kit
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
INSTALLATION
INSTRUCTIONS

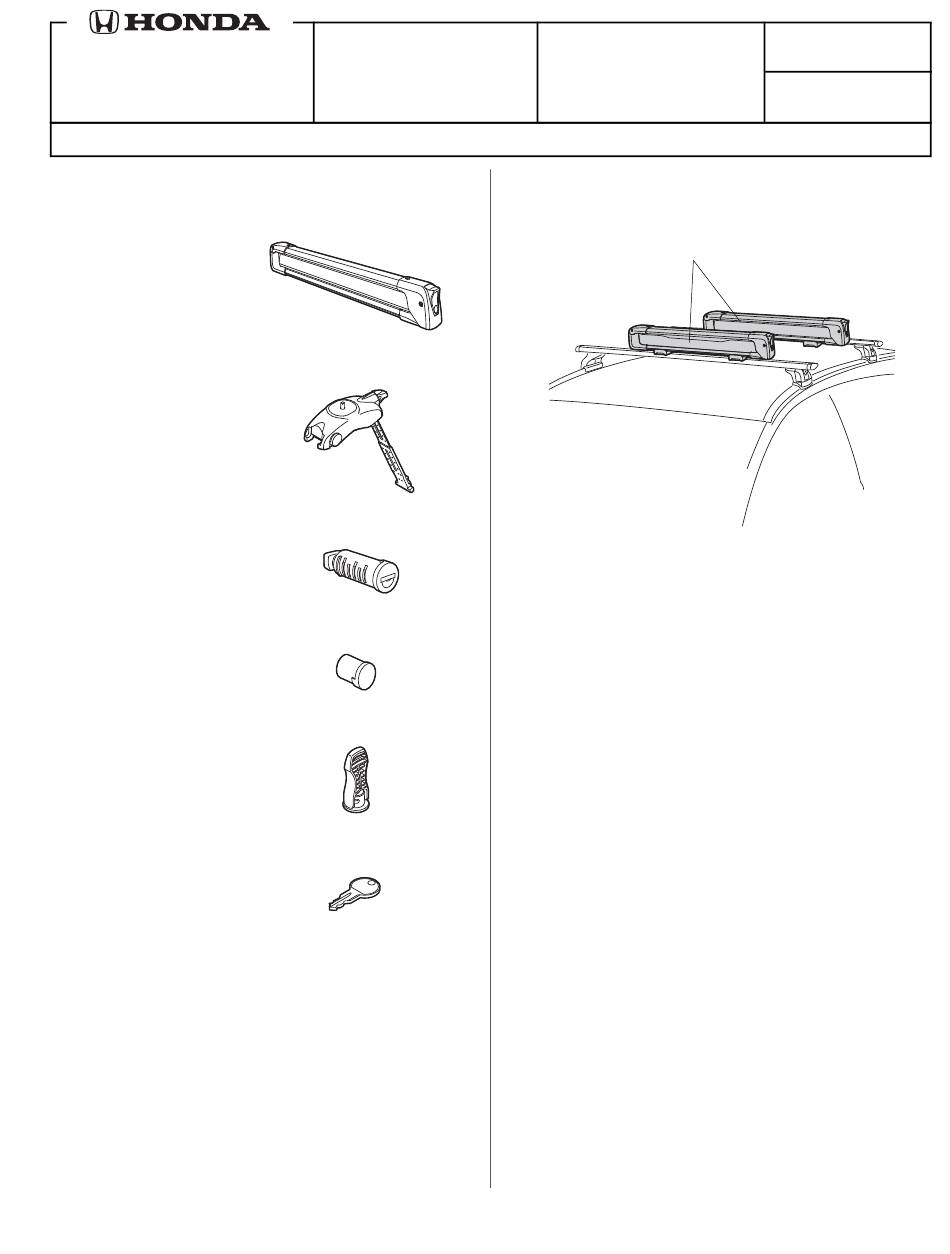

PARTS LIST
2
Ski / snowboard attachments
4
Ski / snowboard attachment stays
4
Lock cylinders
2
Lock cylinder blanks
4
Wing nuts
2
Keys
© 2017 American Honda Motor Co., Inc. – All Rights Reserved.
Accessory
SKI / SNOWBOARD
ATTACHMENT
P/N 08L03-E09-100C
Put this information in the glove box for future reference.
Application
ALL APPLICABLE MODELS
Illustration of the Ski / Snowboard Attachment on the
Vehicle
2 SKI / SNOWBOARD
ATTACHMENTS
INSTALLATION
NOTE:
• This ski / snowboard attachment kit is designed to be
used exclusively with the crossbars, which are sold
separately.
• Do not use non-Honda accessories, carriers or
attachment sets with this ski / snowboard attachment
kit.
• Install the ski / snowboard attachment after installing
the crossbars on the roof.
• Be extremely careful not to damage the roof and other
finished surfaces of the body when installing the ski /
snowboard attachment.
AII07632-01 (1711)
Publications No.
VERSION 1
Issue Date
NOV 2017
QG11906AC
1 of 8
08L03-E09-1C00-90

Advertisement

loading
Need help?

Need help?

Do you have a question about the 08L03-E09-100C and is the answer not in the manual?

Questions and answers

Related Manuals for Honda 08L03-E09-100C

Summary of Contents for Honda 08L03-E09-100C

  • Page 1: Installation Instructions

    • Be extremely careful not to damage the roof and other finished surfaces of the body when installing the ski / snowboard attachment. 1 of 8 © 2017 American Honda Motor Co., Inc. – All Rights Reserved. AII07632-01 (1711) 08L03-E09-1C00-90...
  • Page 2 Peel back the rubber pad out of the channel on the ski / snowboard attachment clamp base. RUBBER PAD (Peel back.) SKI / SNOWBOARD ATTACHMENT CLAMP BASE CHANNEL QG11909AC 2 of 8 AII07632-01 (1711) © 2017 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 3 BLANK attachment stay stud bolts. Fold the wing nut handles flat down into the channel on the ski / snowboard attachment clamp base. QG11911AC 3 of 8 © 2017 American Honda Motor Co., Inc. – All Rights Reserved. AII07632-01 (1711)
  • Page 4 SKI / SNOWBOARD SKI / SNOWBOARD ATTACHMENT ATTACHMENT CLAMP BASE RUBBER PAD 2 STRAPS SKI / SNOWBOARD ATTACHMENT QG11913AC CLAMP BASE CROSSBAR 2 STRAPS QG11914AC 4 of 8 AII07632-01 (1711) © 2017 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 5 14. Make sure that the skis or snowboards will not hit the tailgate when it is opened. Make sure that the skis or snowboards will not hit the tailgate. SKIS OR SNOWBOARDS TAILGATE QG11917AC 5 of 8 © 2017 American Honda Motor Co., Inc. – All Rights Reserved. AII07632-01 (1711)
  • Page 6 SKI / SNOWBOARD ATTACHMENT ATTACHMENT QG11918AC Click twice. MEDIUM SKI / SNOWBOARD ATTACHMENT TOP SNOWBOARD Click three THIN times. SKI / SNOWBOARD ATTACHMENT TOP QG11919AG 6 of 8 AII07632-01 (1711) © 2017 American Honda Motor Co., Inc. – All Rights Reserved.
  • Page 7 SKIS OR SNOWBOARDS Apply pressure to the skis or snowboards in all directions to make sure that the skis or snowboards are firmly secured. QG11921AG 7 of 8 © 2017 American Honda Motor Co., Inc. – All Rights Reserved. AII07632-01 (1711)
  • Page 8 • Only use the ski / snowboard attachments with vehicles that specify that it can be applied. 8 of 8 AII07632-01 (1711) © 2017 American Honda Motor Co., Inc. – All Rights Reserved.
