Chapter 2 – Installation

Step 1: Assemble the Modem

The only assembly required is to mount the feet on the bottom of the modem. Simply peel the four self-
adhesive plastic feet off the backing strip and press them into the recesses on the bottom of the modem.

Step 2: Connect the Modem to Your PC

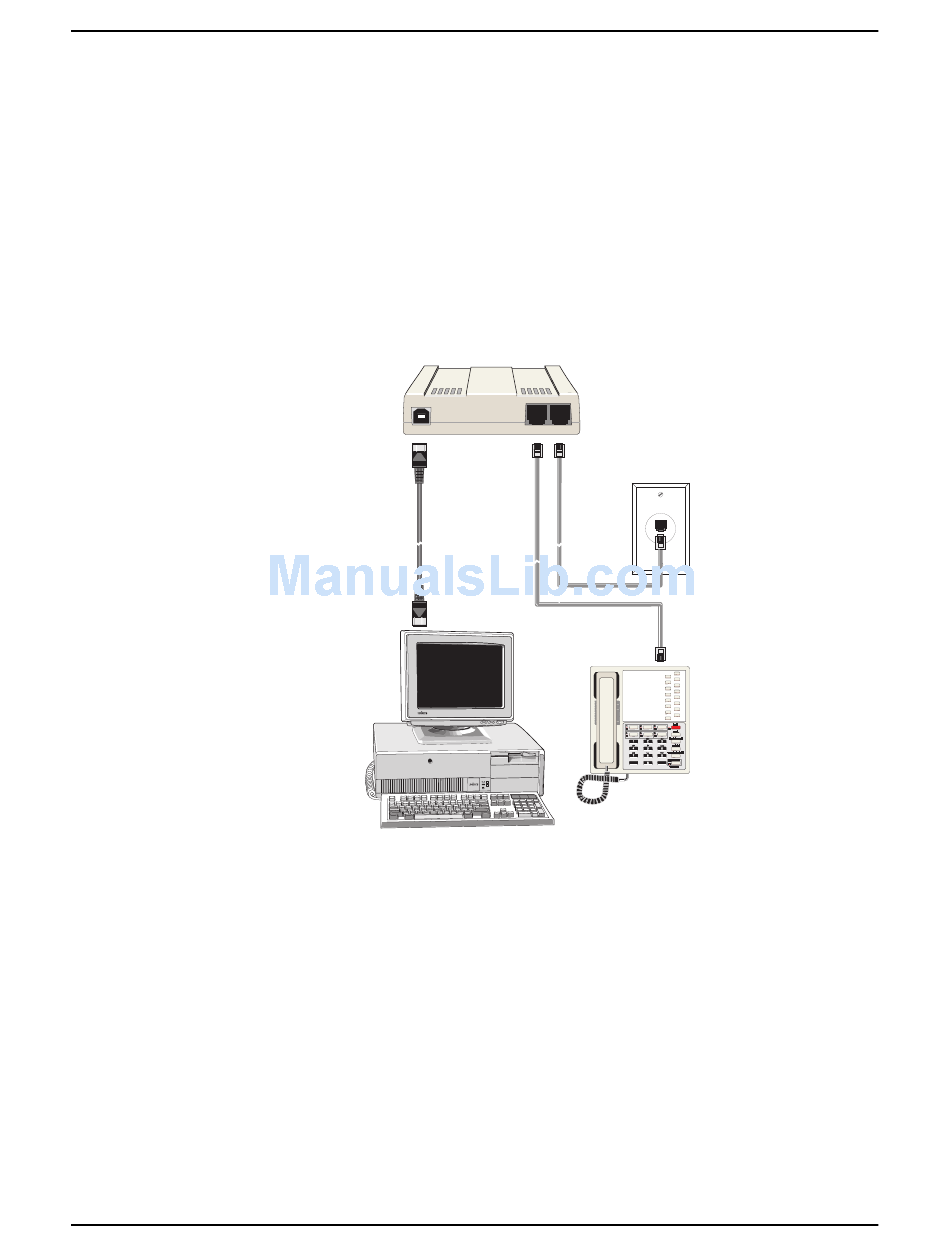

Placing the modem in a convenient location, connect it to your computer's USB port, to the telephone
line, and, optionally, to your telephone.
PHONE LINE
USB
USB Connection
Plug one end of the USB cable into the USB connector on the modem, and the other end into a USB port
connector on your computer.
Line Connection
Plug one end of the phone cable into the modem's LINE jack and the other end into a phone line wall
jack.
Note: The LINE jack is not interchangeable with the PHONE jack. Do not plug the phone into the LINE
jack or the line cable into the PHONE jack.
Note: The Federal Communications Commission (FCC), and Industry Canada impose certain restrictions
on equipment connected to public telephone systems. See Appendix A for more information.
Phone Connection
For voice-only calls, you can optionally plug a telephone into the modem's PHONE jack.
