- Page 1 MultiModem ® MT5634ZBA-Series MT5634ZBA-V.90 MT5634ZBA-V-V.90 MT5634ZBA-V.92 MT5634ZBVA-V-V.92 Quick Start Guide Downloaded from Elcodis.com electronic components distributor...
- Page 2 Multi-Tech Systems, Inc. All other brand and product names mentioned in this publication are registered trademarks or trademarks of their respective companies. Technical Support Country By Email By Phone Europe, Middle East, Africa: support@multitech.co.uk +(44) 118 959 7774 U.S., Canada. all others: support@multitech.com (800) 972-2439 or +763-717-5863 World Headquarters Multi-Tech Systems, Inc.
-
Page 3: Safety Warnings

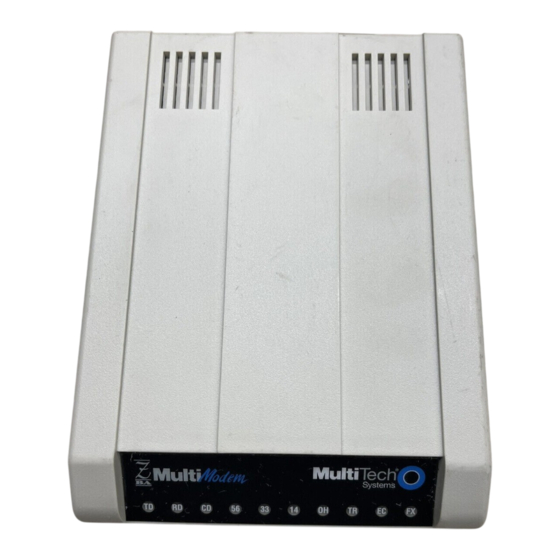

MT5634ZBA-Series Quick Start Guide Introduction This guide shows you step-by-step how to set up your Multi-Tech MT5634ZBA–Series modem. The MT5634ZBA modem is your data/fax modem. The MT5634ZBA-V adds the voice option to your modem. For detailed information on how to install, test, and use your modem, see the User Guide, located on the MultiModem Product CD provided with your modem. -
Page 4: Modem Installation
MT5634ZBA-Series Quick Start Guide Modem Installation Connect the Modem to Your System Turn off your computer. Place the modem in a convenient location, and then connect it to your computer’s serial port, the phone line, AC power, and optionally your phone. Connections with voice Connections –... - Page 5 MT5634ZBA-Series Quick Start Guide Connect the Two-Wire Lease Line (Leased-Line Only) For leased line information, see the User Guide, available on your MultiModem Product CD. Connect the Modem to the Phone (Optional) If you want to connect a phone to the same line as the modem, plug the phone cable into the modem PHONE jack.
-
Page 6: Installing The Modem Driver
MT5634ZBA-Series Quick Start Guide Installing the Modem Driver If you use Windows 2000 or newer, you must install the modem driver. The modem driver tells Windows how to control the modem. If you use a Linux operating system, please see the User Guide for installation instructions. - Page 7 MT5634ZBA-Series Quick Start Guide Using Global Wizard to Configure Your Modem The Global Wizard configuration utility is recommended for computers running Windows Vista/XP/2003/2000/NT. 1. Insert the MultiModem Product CD into the CD-ROM drive. The Autorun dialog box appears. 2. Click Initial Setup and Country/region Selection. 3.
- Page 8 Patents This device is covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; D394,250; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; D374,222; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859;...
