Chapter 2 – Installation
Step 1 – Desktop Placement or Panel-
Mounting
The MT5634IND is design to be used on the desktop or to be panel-mounted. For panel-mounting, follow these
directions for attaching the mounting bracket:
1.
Typically, the modem is mounted against a flat surface with two mounting screws. Drill the mounting holes at
the desired location. The mounting holes must separated by 4 -15/16 inches center-to-center.
2.
To attach the mounting bracket to the modem, slide the brackets through the slot on the back of the chassis.
3.
Attach the modem to the surface with two screws.

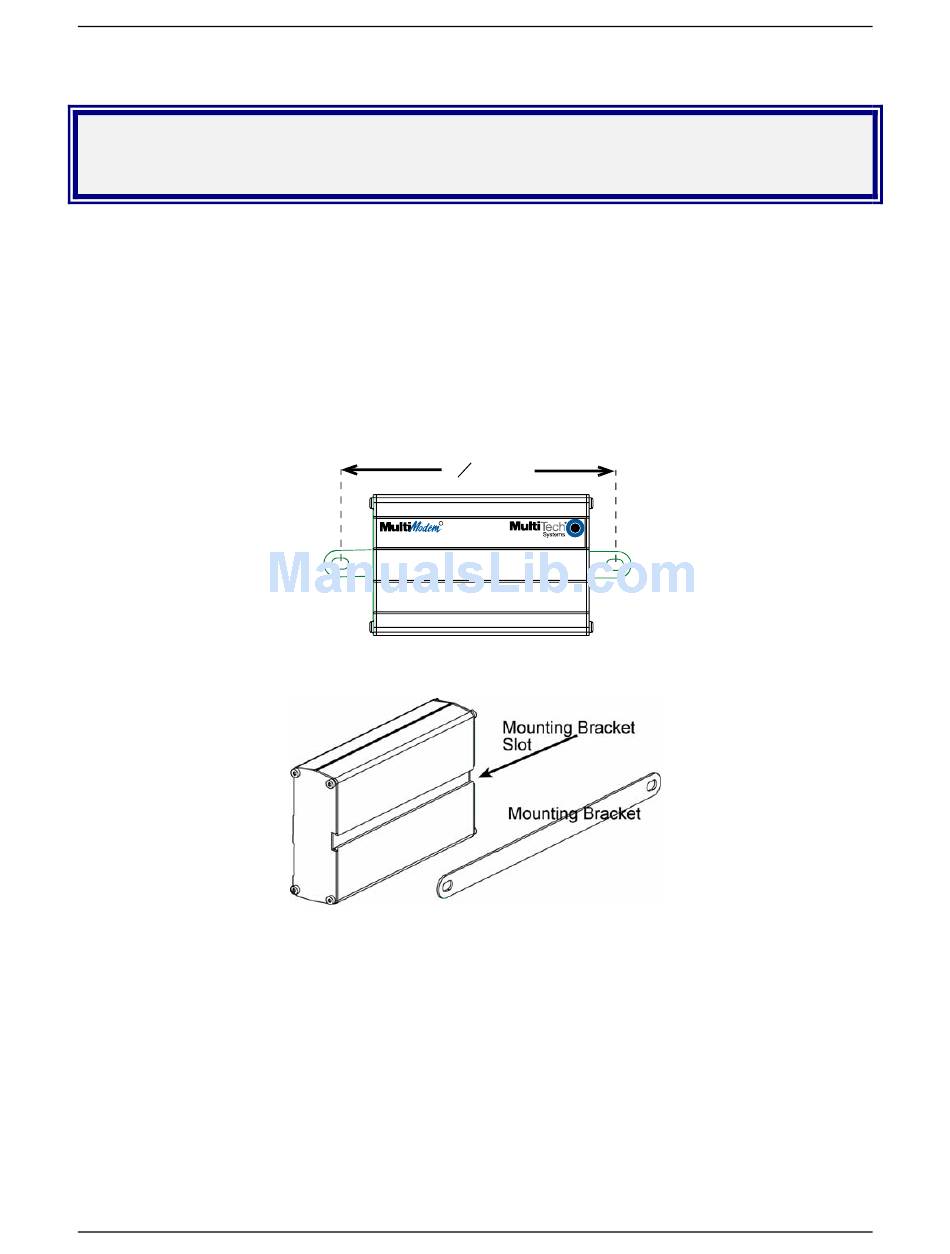

Multi-Tech Systems, Inc. MT5634IND User Guide (S000369B)
Screw Separation
15
4
inches
16
IND
R
Industrial Modem
Chapter 2 – Installation
