Step 2 – Connect the Modem to Your
System

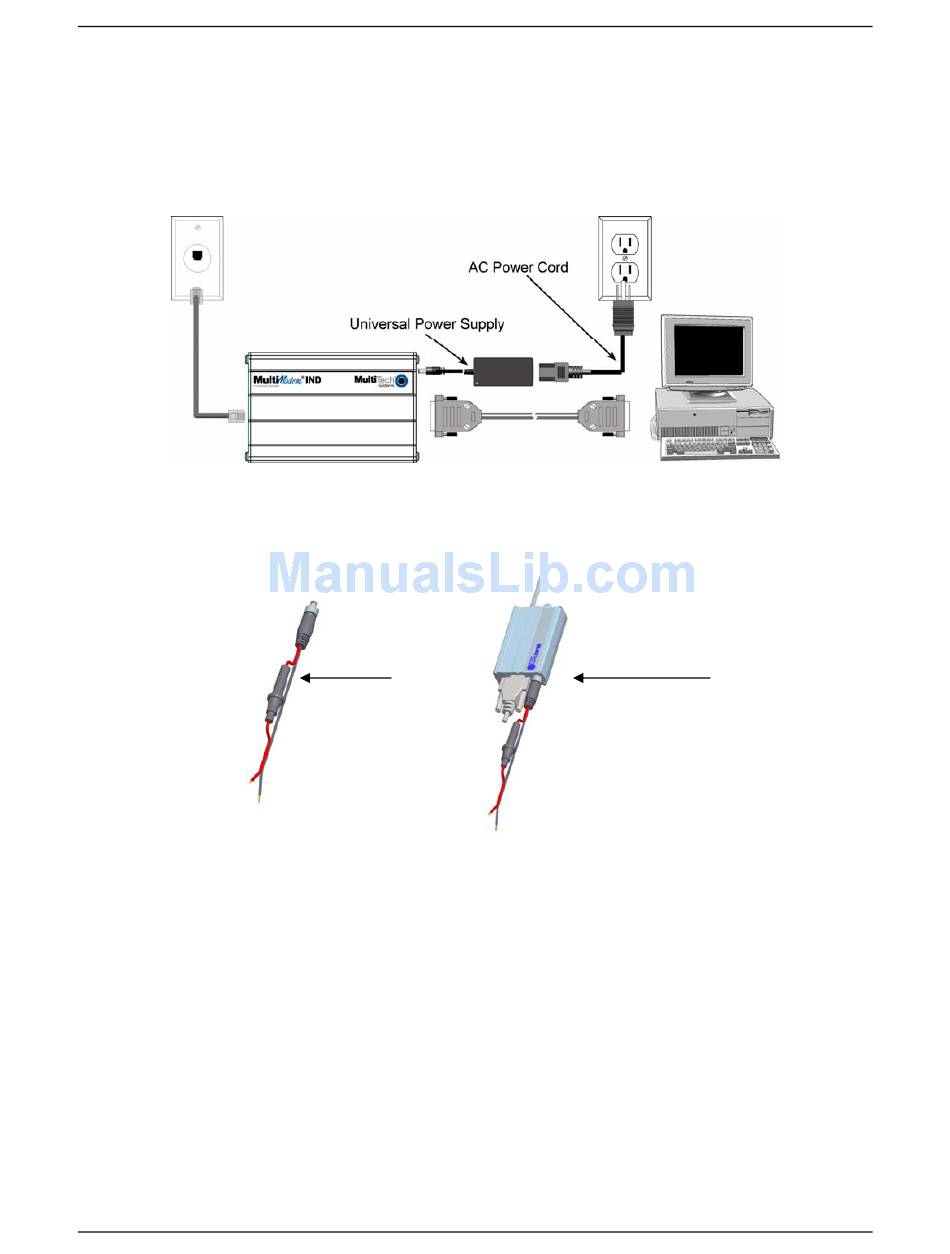

For AC Power

Turn off your computer. Place the modem in a convenient location, and then connect it to your computer's serial
port, the phone line, and AC power.

For DC Power

For DC power, use the fused cable in place of the Universal Power Supply and the AC Power Cord. It requires a
313000 Series fuse (length: 1.25" or 31.75mm; diameter: 0.25" or 6.35mm).
Steps for connecting Your Modem to Your System
RS-232 Connection
Plug one end of the serial cable into the RS-232 connector on the modem, and plug the other end into a
serial port connector on your computer, such as COM1 or COM2.
Phone Line Connection
Plug one end of the phone cable into the MT5634IND LINE jack and the other end into a phone line wall
jack.
Power Connection
For AC
Plug the power supply cable with attached transformer block into the power connector on the
MultiModem. Then plug the AC cord receptacle into the transformer block, and plug the other end of the
of the AC cord into a power outlet or power strip.
Note: Use only the power supply supplied with the MT5634IND. Use of any other power supply will void
the warranty and could damage the modem.
For DC
Plug the fused cable into the power connector on the MultiModem. Then attach the two wires at the
other end of the fused cable to a DC power source.
Multi-Tech Systems, Inc. MT5634IND User Guide (S000369B)
Fused
Cable
Chapter 2 – Installation
Fused Cable
Connection
10
