Summary of Contents for Anmytek Savannah H0053

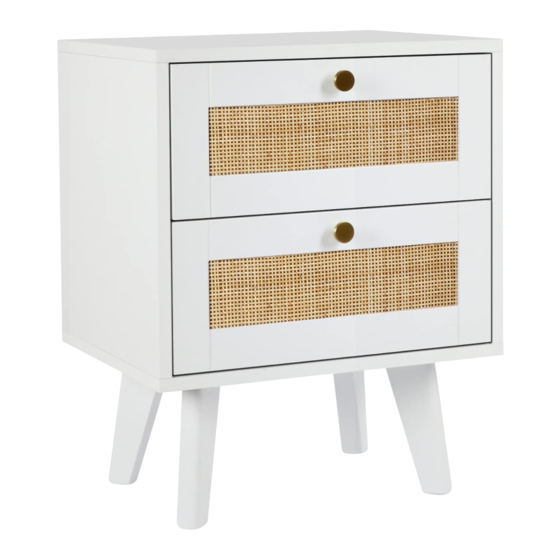

- Page 1 Contact Us: service@anmytek.com H0053/H0066 Savannah Two Drawers Side Table 1 x 1 m 1 PEOPLE 45 MIN...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND USING THE PRODUCT. Please check that all parts are present before you start the assembly of your furniture. A Philips head screwdriver (not included) is required for the assembled of thisproduct. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step. -
Page 3: Assembly Diagram
AFTER SALES SUPPORT If you have any general enquiries or require spare parts for this product, please feel free to contact us via the following email: Email: service@anmytek.com You can contact us for support at any time. We'll answer you in 24hrs. - Page 4 Hardware List Cam Bolt Ø6x35mm Cam Lock Ø15x10mm Wooden dowel Ø6x30mm Screw Ø3x12mm Screw Ø4x35mm Wall Anchor Drawer Glide Drawer Glide Bolt Handle Foot Pad 16 pcs Screw Ø3x14mm Safety Strap Washer Screw Ø5x40mm Allen key Philips head screwdriver required for assembly (not included) The hardware quantities listed above are required for proper assembly.
- Page 5 For more help, you can send a message to our customer support email service@anmytek.com in any time. Ready? Ok, let’s get rolling! This should be very easy, just follow our simple instructions...
-
Page 6: Assembly Steps
ASSEMBLY STEPS Step 1 6×35 Secure 4 x cam bolts (A) to panel (1) with a screwdriver. Step 2 Attach 2 x drawer glides (G) to panel (3) using 6 x screws (D) with a screwdriver. Make sure the protruding edge at the silver button screw end is upward. The end of the glides are close to the groove. - Page 7 ASSEMBLY STEPS Step 3 Attach 2 x drawer glides (H) to panel (4) using 6 x screws (D) with a screwdriver. Step 4 Attach panel (3), (4) to panel (1) using 4 x cam locks (B). Tighten with a screwdriver. Please make sure the grooves inside panels are at the bottom.
- Page 8 ASSEMBLY STEPS Step 5 Slide panel (5) into position. Step 6 Fix legs (6) to panel (2) by using screws (R)
- Page 9 Step 7 ×4 6×30 ×4 4×35 Attach panel (2) to assembled unit using 4 x wooden dowels (C), 4 x screws (E). Tighten with a screwdriver. Step 8 × 6×35 × × Secure 4 x cam bolt (A) to panel (7) with a screwdriver. Attach the handle (J) to the panel using a bolt (I) and tighten with a screwdriver.
- Page 10 Step 9 × 3× × × Fix drawer glide (G) to panel (8) using 2 x screws (D) and tighten with a screwdriver. Fix drawer glide (H) to panel (9) using 2 x screws (D) and tighten with a screwdriver. Please note that the roller of the glide is close to the smaller hole on panel.
- Page 11 ASSEMBLY STEPS Step 11 Slide panel (11) into position. Step 12 ×8 Attach panel (7) to assembled unit using 4 x cam locks (B) and tighten with a screwdriver.
- Page 12 Step 13 Slide drawers into position. Step 14 ×1 3×14 ×1 ×1 Fix the safety strap (P) to the furniture using a washer (Q), a screw (N) and tighten with a screwdriver.
- Page 13 ASSEMBLY STEPS Step 15 ×1 F Q E 4×35 ×1 ×1 Fasten the furniture to wall using a wall anchor (F), a washer (Q), a screw (E) and tighten with a screwdriver.
- Page 14 WALL FIXING GUIDE NOTE: Supplied wall plugs are only suitable for use in masonry walls. If you have any doubts about using the correct plug for your wall, please seek professional advice. Failure of the product due to using incorrect fixings is the responsibility of the installer. IMPORTANT: When drilling into walls, always check for hidden wires or pipes, etc.
