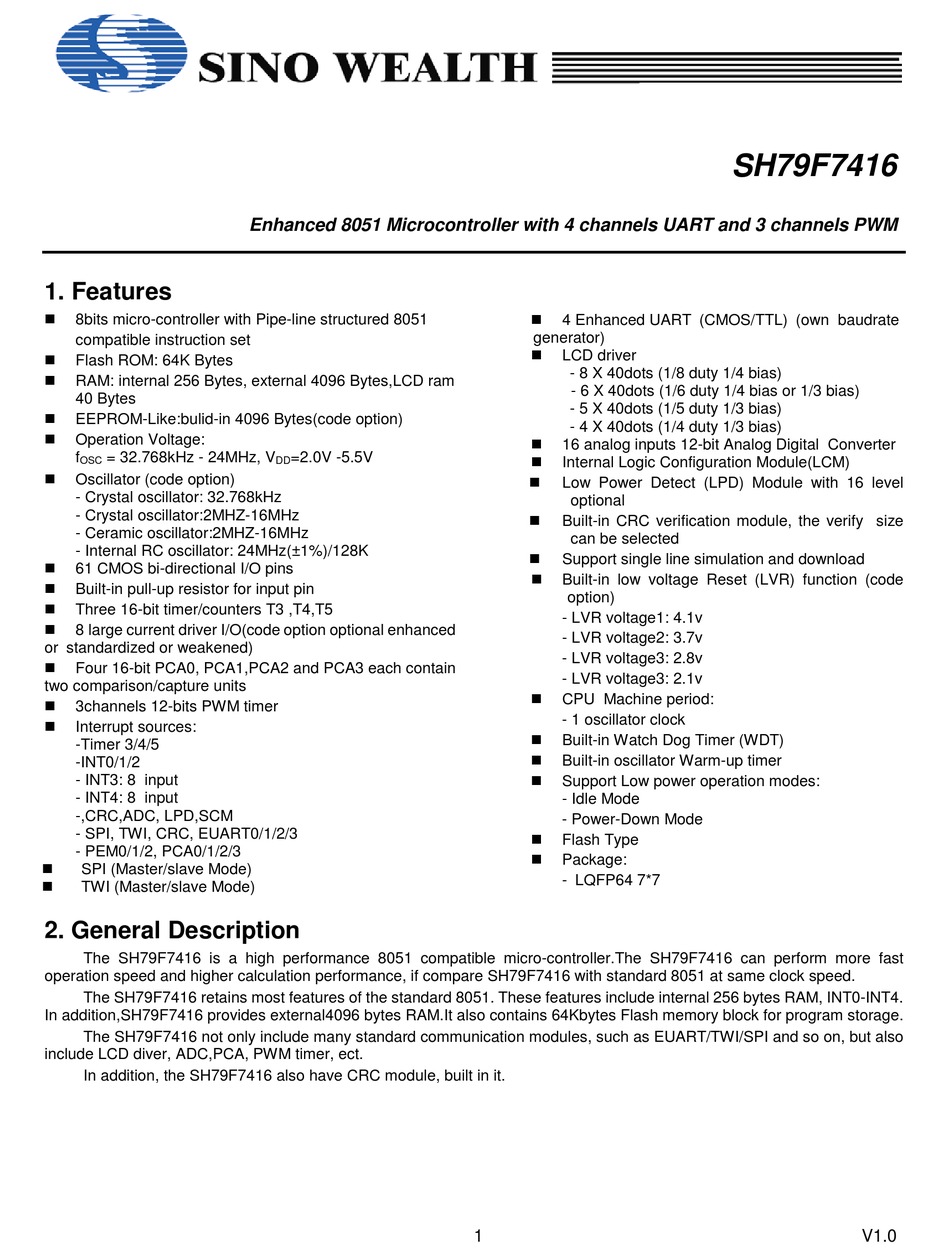

1. Features
8bits micro-controller with Pipe-line structured 8051
compatible instruction set
Flash ROM: 64K Bytes
RAM: internal 256 Bytes, external 4096 Bytes,LCD ram
40 Bytes
EEPROM-Like:bulid-in 4096 Bytes(code option)
Operation Voltage:
f
= 32.768kHz - 24MHz, V
OSC
Oscillator (code option)
- Crystal oscillator: 32.768kHz
- Crystal oscillator:2MHZ-16MHz
- Ceramic oscillator:2MHZ-16MHz
- Internal RC oscillator: 24MHz(±1%)/128K
61 CMOS bi-directional I/O pins
Built-in pull-up resistor for input pin
Three 16-bit timer/counters T3 ,T4,T5
8 large current driver I/O(code option optional enhanced
or standardized or weakened)
Four 16-bit PCA0, PCA1,PCA2 and PCA3 each contain
two comparison/capture units
3channels 12-bits PWM timer
Interrupt sources:
-Timer 3/4/5
-INT0/1/2
- INT3: 8 input
- INT4: 8 input
-,CRC,ADC, LPD,SCM
- SPI, TWI, CRC, EUART0/1/2/3
- PEM0/1/2, PCA0/1/2/3
SPI (Master/slave Mode)
TWI (Master/slave Mode)
2. General Description
The SH79F7416 is a high performance 8051 compatible micro-controller.The SH79F7416 can perform more fast
operation speed and higher calculation performance, if compare SH79F7416 with standard 8051 at same clock speed.
The SH79F7416 retains most features of the standard 8051. These features include internal 256 bytes RAM, INT0-INT4.
In addition,SH79F7416 provides external4096 bytes RAM.It also contains 64Kbytes Flash memory block for program storage.
The SH79F7416 not only include many standard communication modules, such as EUART/TWI/SPI and so on, but also
include LCD diver, ADC,PCA, PWM timer, ect.
In addition, the SH79F7416 also have CRC module, built in it.
Enhanced 8051 Microcontroller with 4 channels UART and 3 channels PWM
=2.0V -5.5V
DD
4 Enhanced UART (CMOS/TTL) (own baudrate
generator)
LCD driver
- 8 X 40dots (1/8 duty 1/4 bias)
- 6 X 40dots (1/6 duty 1/4 bias or 1/3 bias)
- 5 X 40dots (1/5 duty 1/3 bias)
- 4 X 40dots (1/4 duty 1/3 bias)
16 analog inputs 12-bit Analog Digital Converter
Internal Logic Configuration Module(LCM)
Low Power Detect (LPD) Module with 16 level
optional
Built-in CRC verification module, the verify size
can be selected
Support single line simulation and download
Built-in low voltage Reset (LVR) function (code
option)
- LVR voltage1: 4.1v
- LVR voltage2: 3.7v
- LVR voltage3: 2.8v
- LVR voltage3: 2.1v
CPU Machine period:
- 1 oscillator clock
Built-in Watch Dog Timer (WDT)
Built-in oscillator Warm-up timer
Support Low power operation modes:
- Idle Mode
- Power-Down Mode
Flash Type
Package:
- LQFP64 7*7
1
SH79F7416
V1.0
