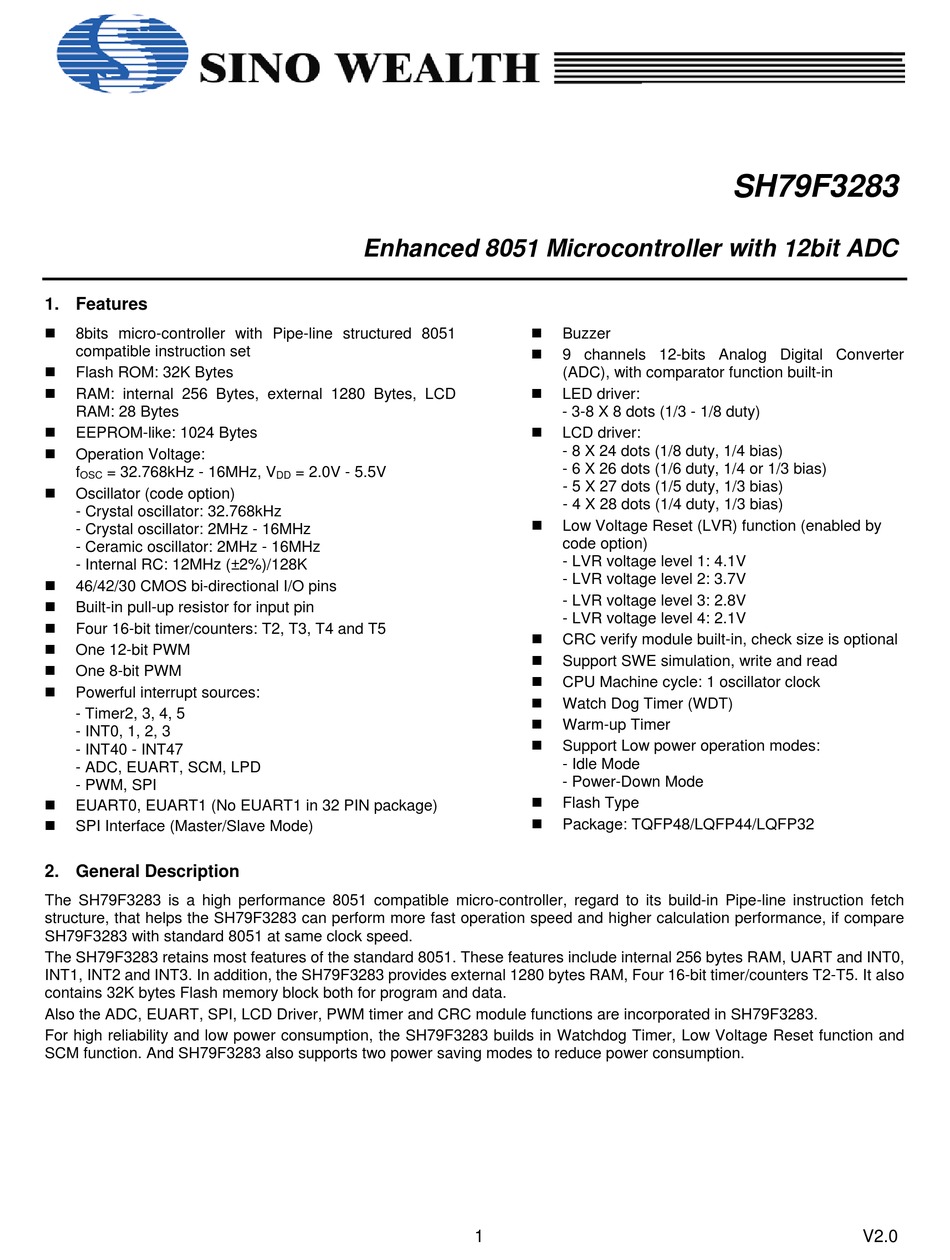

Sino Wealth SH79F3283 Manual

Enhanced 8051 microcontroller with 12bit adc
Table of Contents

Advertisement

Quick Links

1. Features

8bits micro-controller with Pipe-line structured 8051
compatible instruction set
Flash ROM: 32K Bytes
RAM: internal 256 Bytes, external 1280 Bytes, LCD
RAM: 28 Bytes
EEPROM-like: 1024 Bytes
Operation Voltage:
f
= 32.768kHz - 16MHz, V
OSC
Oscillator (code option)
- Crystal oscillator: 32.768kHz
- Crystal oscillator: 2MHz - 16MHz
- Ceramic oscillator: 2MHz - 16MHz
- Internal RC: 12MHz (±2%)/128K
46/42/30 CMOS bi-directional I/O pins
Built-in pull-up resistor for input pin
Four 16-bit timer/counters: T2, T3, T4 and T5
One 12-bit PWM
One 8-bit PWM
Powerful interrupt sources:
- Timer2, 3, 4, 5
- INT0, 1, 2, 3
- INT40 - INT47
- ADC, EUART, SCM, LPD
- PWM, SPI
EUART0, EUART1 (No EUART1 in 32 PIN package)
SPI Interface (Master/Slave Mode)

2. General Description

The SH79F3283 is a high performance 8051 compatible micro-controller, regard to its build-in Pipe-line instruction fetch
structure, that helps the SH79F3283 can perform more fast operation speed and higher calculation performance, if compare
SH79F3283 with standard 8051 at same clock speed.
The SH79F3283 retains most features of the standard 8051. These features include internal 256 bytes RAM, UART and INT0,
INT1, INT2 and INT3. In addition, the SH79F3283 provides external 1280 bytes RAM, Four 16-bit timer/counters T2-T5. It also
contains 32K bytes Flash memory block both for program and data.
Also the ADC, EUART, SPI, LCD Driver, PWM timer and CRC module functions are incorporated in SH79F3283.
For high reliability and low power consumption, the SH79F3283 builds in Watchdog Timer, Low Voltage Reset function and
SCM function. And SH79F3283 also supports two power saving modes to reduce power consumption.
Enhanced 8051 Microcontroller with 12bit ADC
= 2.0V - 5.5V
DD
Buzzer
9 channels 12-bits Analog Digital Converter
(ADC), with comparator function built-in
LED driver:
- 3-8 X 8 dots (1/3 - 1/8 duty)
LCD driver:
- 8 X 24 dots (1/8 duty, 1/4 bias)
- 6 X 26 dots (1/6 duty, 1/4 or 1/3 bias)
- 5 X 27 dots (1/5 duty, 1/3 bias)
- 4 X 28 dots (1/4 duty, 1/3 bias)
Low Voltage Reset (LVR) function (enabled by
code option)
- LVR voltage level 1: 4.1V
- LVR voltage level 2: 3.7V
- LVR voltage level 3: 2.8V
- LVR voltage level 4: 2.1V
CRC verify module built-in, check size is optional
Support SWE simulation, write and read
CPU Machine cycle: 1 oscillator clock
Watch Dog Timer (WDT)
Warm-up Timer
Support Low power operation modes:
- Idle Mode
- Power-Down Mode
Flash Type
Package: TQFP48/LQFP44/LQFP32
1
SH79F3283
V2.0
