Add a New Port

5.

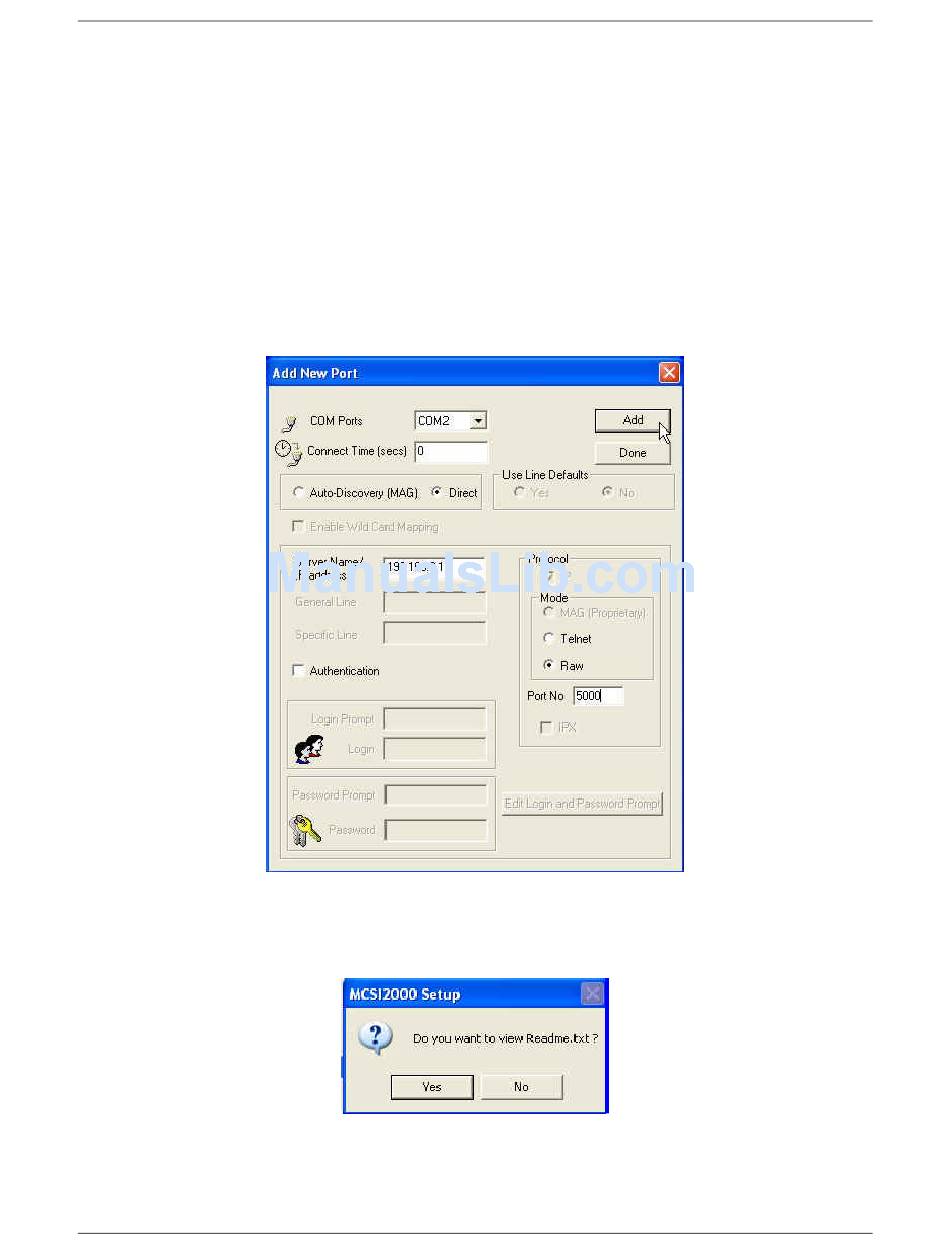

On this screen, the first available COM port displays in the drop down list box (ex.
•
COM2).
Select Direct for this COM port.
•
Then enter the Server Name/IP Address of the MTS2EA device (default is
•
192.168.2.1).
For Mode, select Raw.
•
• For the Port No, enter 5000 (the port number must match the port number entered for
the MTS2EA device).
Click the Add button to add the COM Port.
•
Then click the Done button. Note that the MCSI software will allow you to continue
•
creating new COM Ports until you click the Done button.
You will be prompted to view the Readme.txt. Click Yes to read it, or click No to skip it.
6.
