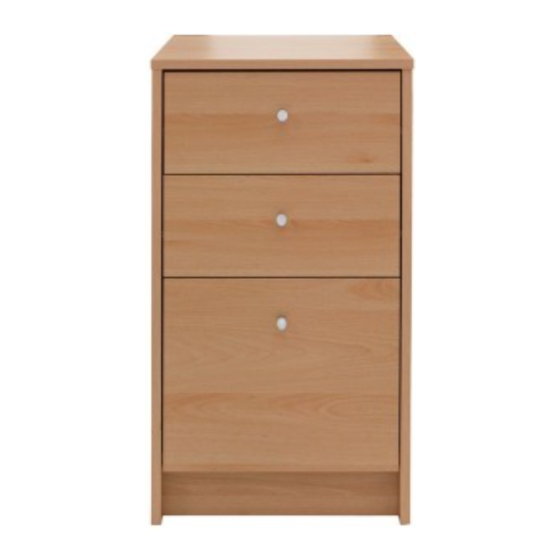

Malibu - 3 Drawer Filer
Assembly Instructions -
Dimensions
Width - 40cm
Depth - 49cm
Height - 72.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
279/6288
258/3422
MADE IN
BRITAIN
Issue 4 - 30/06/14
Advertisement
Related Manuals for Argos Malibu 279/6288
Summary of Contents for Argos Malibu 279/6288
- Page 1 Malibu - 3 Drawer Filer Assembly Instructions - 279/6288 Please keep for future reference 258/3422 Dimensions Width - 40cm Depth - 49cm MADE IN Height - 72.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 4 - 30/06/14...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 17kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2792A) (397 x 490mm) Left Side Right Side Rail (D2793A) (D2794A) (D2796A) (706 x 444mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the 2 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 8 Prepare the file front and the file back Screw 2 metal dowels into the holes shown on the back of the file front Screw 2 metal dowels into the holes shown on the file back Note: Tighten the metal dowels up fully against the panels.
- Page 8 Assembly Instructions Step 11 325mm Fit the file base Slide the file base between the slots in the 2 file sides and push it down onto the file front Step 12 Fit the file bars Push the 2 file bars down into the holes on the file front Step 13...
- Page 9 Assembly Instructions Step 14 Attach the handle Attach a handle to the file front using screw Step 15 Secure the file base Place the wedge panel holders onto the file base , pushing them up against the back of the file front Screw the wedge panel holders into the 2...
- Page 10 Assembly Instructions Step 17 Prepare the left side Place 2 runners the left side shown. Slide back the top of runner and use the Finished 2nd hole from the front front edge to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into...
- Page 11 Assembly Instructions Step 18 Prepare the right side Place 2 runners the right side shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and fit the 2nd screw into Finished...
- Page 12 Assembly Instructions Step 19 Plain chipboard surface Prepare the 2 rails Tap 2 wooden dowels into each of the rails Step 20 Join the right side and rails Push the 2 rails onto Note: Support this the right side plinth until the left secure them with 2 side has been fitted screws...
- Page 13 Assembly Instructions Step 22 Prepare the top Screw 2 metal dowels into the top Finished front edge Step 23 Fit the top Push the top onto the side panels Use a screwdriver to tighten the 2 large locking nuts fitted to the inside of the side panels Note: Turn the large...
- Page 14 Assembly Instructions Step 24 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y.
- Page 15 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 16 ALR3069...
