Front Panel LEDs

On both the MVP130 and MVP130-FXS models, there are eight LEDs. These are explained in the table below.
LED Description
Power Indicates presence of power
After power up, the Boot LED will be on briefly while the MultiVOIP is booting. It lights whenever the
Boot
MultiVOIP is booting or downloading a setup configuration data set
FD. LED indicates whether Ethernet connection is half-duplex or full-duplex and, in half-duplex mode,
indicates occurrence of data collisions. LED is on constantly for full-duplex mode; LED is off constantly for
Ethernet
half-duplex mode. When operating in half-duplex mode, the LED will flash during data collisions.
LK. Link/Activity LED. This LED is lit if Ethernet connection has been made. It is off when the link is down
(i.e., when no Ethernet connection exists). While link is up, this LED will flash off to indicate data activity.
Transmit. This indicator blinks when voice packets are being transmitted to the local area network.
TX
Receive. This indicator blinks when voice packets are being received from the local area network.
RX
Transmit Signal. This indicator lights when the FXS-configured channel is off-hook or the FXO-configured
XS
channel (MVP130 only) is receiving a ring from the Telco or PBX.
Receive Signal. This indicator lights when the FXS-configured channel is ringing or the FXO-configured
RS
channel (MVP130 only) has taken the line off-hook.

Computer Requirements

The computer on which the MultiVOIP's configuration program is installed must meet these requirements:
•
must be IBM-compatible PC with MS Windows operating system;
•
must have an available COM port for connection to the MultiVOIP.
However, this PC does not need to be connected to the MultiVOIP permanently. It only needs to be connected
when local configuration and monitoring are done. Nearly all configuration and monitoring functions can be done
remotely via the IP network.

Specifications

Operating Voltage/Current
Mains Frequencies
Power Consumption
Mechanical Dimensions
Weight
Ambient temperature range
Multi-Tech Systems, Inc.

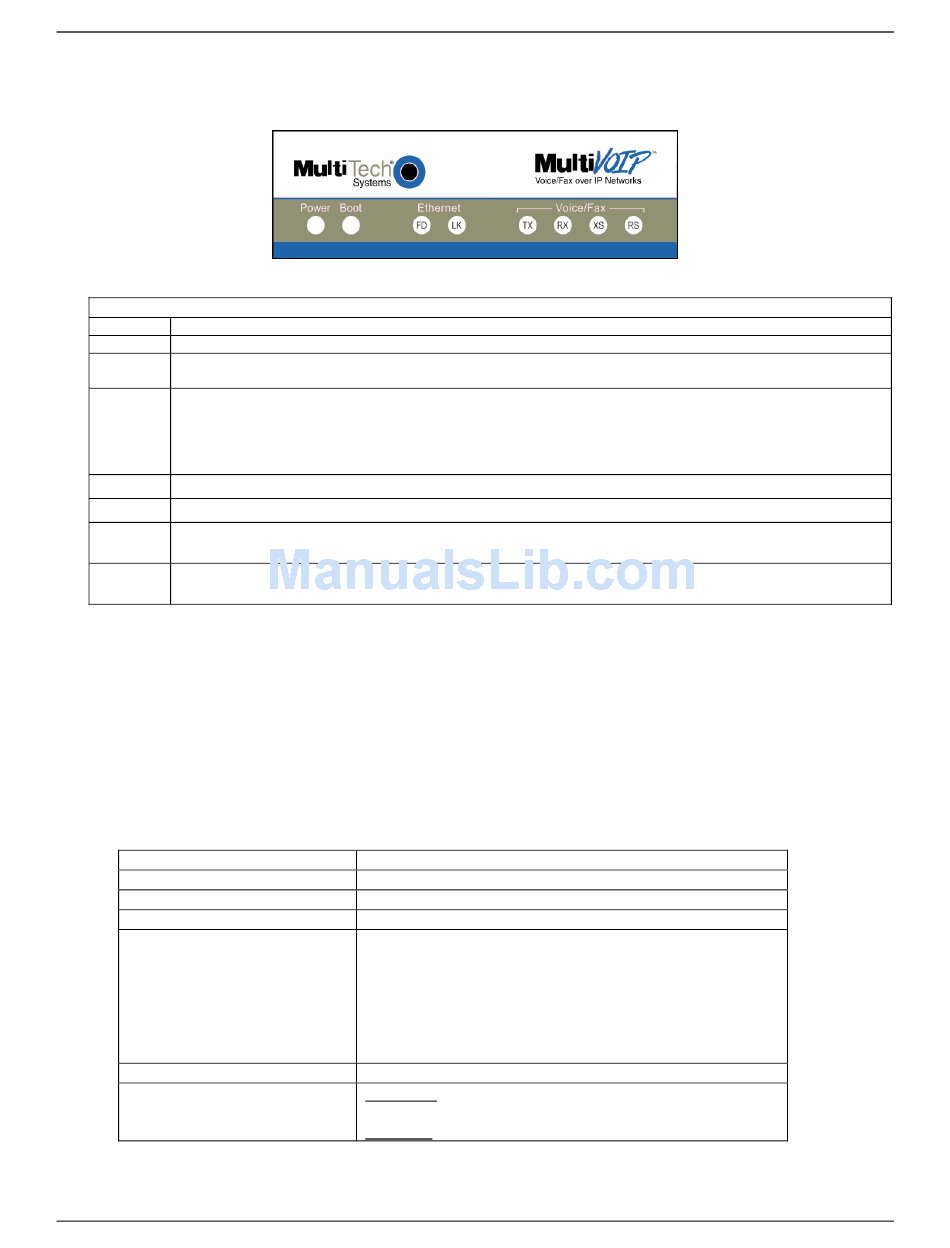

Figure 1-2. MVP130/130-FXS LEDs
Front Panel LED Definitions
MVP130 & MVP130-FXS
100-240VAC / 1.0 A
50/60 Hz
4.5 watts (9.7 watts with phone off hook)
1.0" H
4.3" W x
5.6" D x
----------------
2.5 cm H
10.9 cm W x
14.2 cm D x
8 oz. (23 g)
Maximum: 60 degrees Celsius (140 degrees Fahrenheit)
@ 20-90% non-condensing relative humidity.
Minimum: 0 degrees Celsius (32 degrees Fahrenheit).
Chapter 2: Quick Start
7
