Link 1 RS232
Shunt Position
Link 1 V.35
Shunt Position
Link 2 V.35
Shunt Position
6
Slide the base back into the enclosure with the LEDs
going toward the front and the back side grounding tabs
pressing against the side of the cabinet.
7
Turn the unit upside down and replace the cabinet
mounting screw that was removed in step 2.

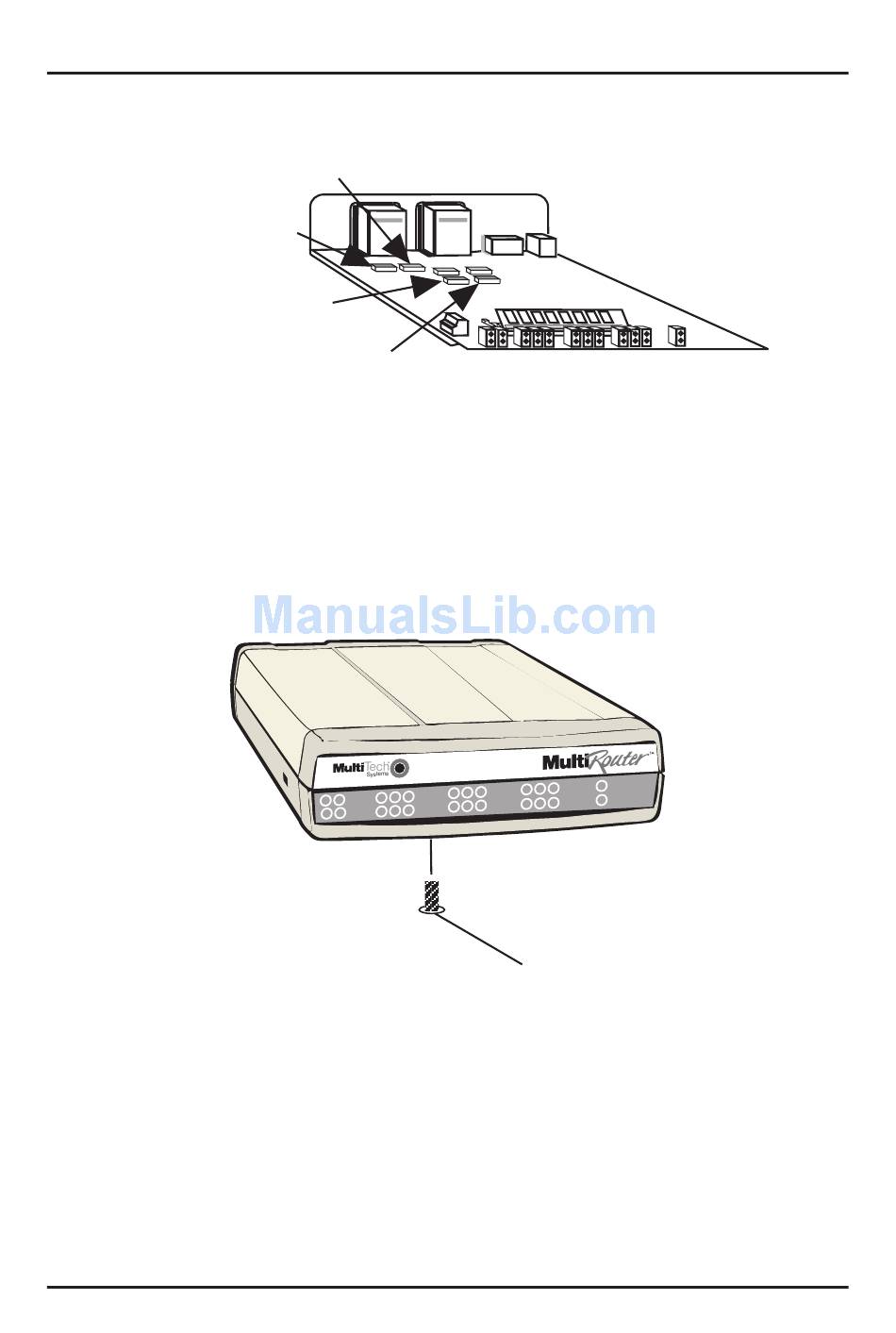

Figure 7. Replacing Cabinet Mounting Screw
8
Turn the unit right side up and return to Table 1 to connect
the cables.
Link 3 V.35
Shunt Position
Figure 6. V.35 Shunt
Enclosure Mounting
Screw (center, back)
Cabling
11
