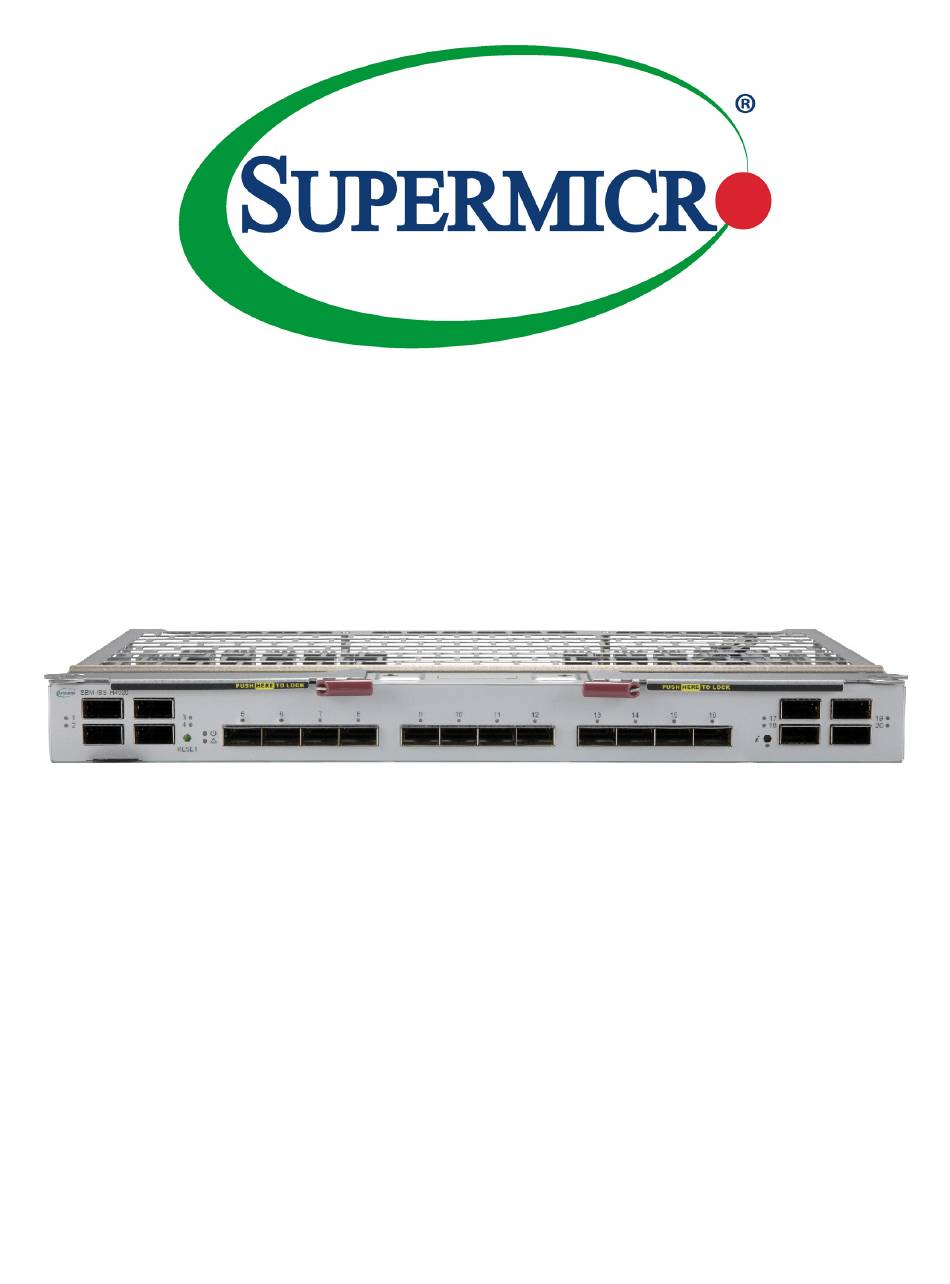

- Page 1 SBM-IBS-H4020 SuperBlade HDR 200G Infiniband Switch USER’S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 If you have any questions, please contact our support team at: support@supermicro.com This manual may be periodically updated without notice. Please check the Supermicro website for possible updates to the manual revision level. Warnings Special attention should be given to the following symbols used in this manual.
-
Page 4: Table Of Contents
Contents Contents Overview ..........................6 Module Managment......................6 Features ..........................7 Installation ..........................8 Specifications ........................9 Hardware Specifications......................9 Physical & Environmental Specifications ................9 Power Specifications ......................9 Enclosure Compatibility .......................9 Port Mapping ........................10 Cabling & Transceiver Compatibility ..................11... - Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
-
Page 6: Overview
SuperBlade HDR 200G InfiniBand Blade Switch Overview The document provides the details about the SuperBlade HDR 200G InfiniBand Blade Switch model SBM-IBS-H4020. Supermicro SBM-IBS-H4020 is an HDR 200G InfiniBand Blade Switch designed for Supermicro blade enclosures for high performance datacenter traffic applications. It provides a 1:1 non-blocking architecture and supports twenty internal HDR ports at 200G and twenty external HDR ports at 200G with ZQSFP+/QSFP56 ports. -
Page 7: Features
Features Features The switch module includes these features. Port LED Reset Button Fault LED Latch Lever UID Button Initiation and LED OK LED ZQSFP+/QSFP56 Ports Figure 1. Front View Front Features Feature Description ZQSFP+/QSFP56 Ports Ports accept QSFP56 Direct Attach Cable (DAC) or QSFP56 transceiver modules Port LED Each port has a status LED that indicates a port linkup Reset Button... -
Page 8: Installation
Installation Installation Make sure the cover to the switch module has been installed before installation. 1. Pull open the latch levers of the blade switch module. 2. Slide the switch module into the bay until the module connectors seat in the enclosure. 3. -
Page 9: Specifications
Humidity: Operating 5% to 95% (non-condensing) Power Specifications • Hot-Pluggable: Yes • Power consumption (Typical): 244 Watts Enclosure Compatibility • This blade switch module is compatible with the Supermicro enclosure SBE-820H with no more than one switch module per enclosure. -
Page 10: Port Mapping
Port Mapping Port Mapping The port mapping between the blade servers and the switch internal ports is shown in the table below. Port Mapping Module Internal Port... -
Page 11: Cabling & Transceiver Compatibility
Cabling and Transceiver Compatibility Cabling and Transceiver Compatibility The SBM-IBS-H4020 has been qualified with the following cables for compatibility: Passive: • CBL-NTWK-0643—INFINIBAND, QSFP56, 200G, PASSIVE, PULL, 2M, 26AWG • CBL-MCP7H50-H002R26—INFINIBAND, QSFP56,HDR 200G to 2x100G, 2M, 26AWG Active: • CBL-MFS1S00H10-MT037—INFINIBAND, QSFP56, 200G, ACTIVE OPTICAL 10M •...
