1: illuminant A (default illuminant)
•
2: illuminant D50
•
3: illuminant D75
Note: To store your generated illuminants or sequences on your device, please follow the iQ-LED SW
user manual instructions.

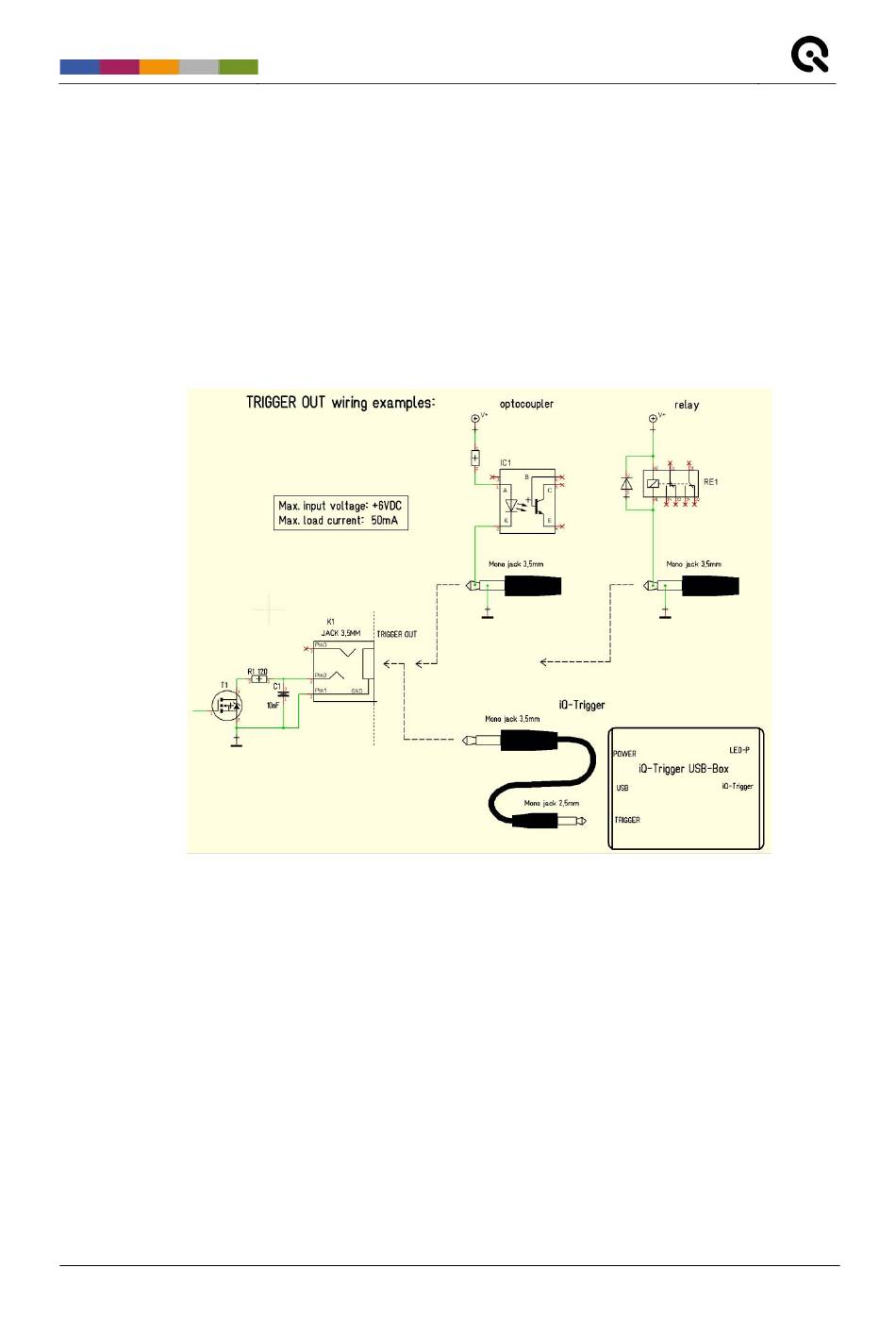

Wiring examples for the trigger output:
The default duration value for the trigger output is 500 ms. This value can be modified with the iQ-LED
API. A signal is sent out to the trigger output while changing the illuminates or the intensity of LED
channels. It can be used to synchronize your test setup. For example, with an iQ-Trigger (see 2.1
optional equipment).
3.2

Connecting the hardware

1. Connect the power cord to the power supply on the back of CAL3.
2. Connect the USB cable to the CAL3 and your PC.
3. Turn on the CAL3; the power switch is next to the power supply.
Image Engineering
Trigger OUT wiring examples
