Wiring examples for the trigger output:
The default duration value for the trigger output is 500 ms. This value can be modified with
the iQ-LED API. A signal is send out to the trigger output while changing the illuminats or the
intensity of LED channels. It can be used to synchronize your test setup. For example with
an iQ-Trigger. (See 2.1 optional equipment)

3.2 Connecting the hardware

1. Connect the power cord to the power supply on the back of CAL2.
2. Connect the USB cable to the CAL2 and your PC.
3. Turn on the CAL2; the power switch is located beside the power supply.
4. Connect the spectrometer to the PC using the USB cable. The system will install the
spectrometer and iQ-LED drivers on your PC, this will take a few seconds.
5. You can check the installation in your hardware manager.
Image Engineering
Operating instructions hardware

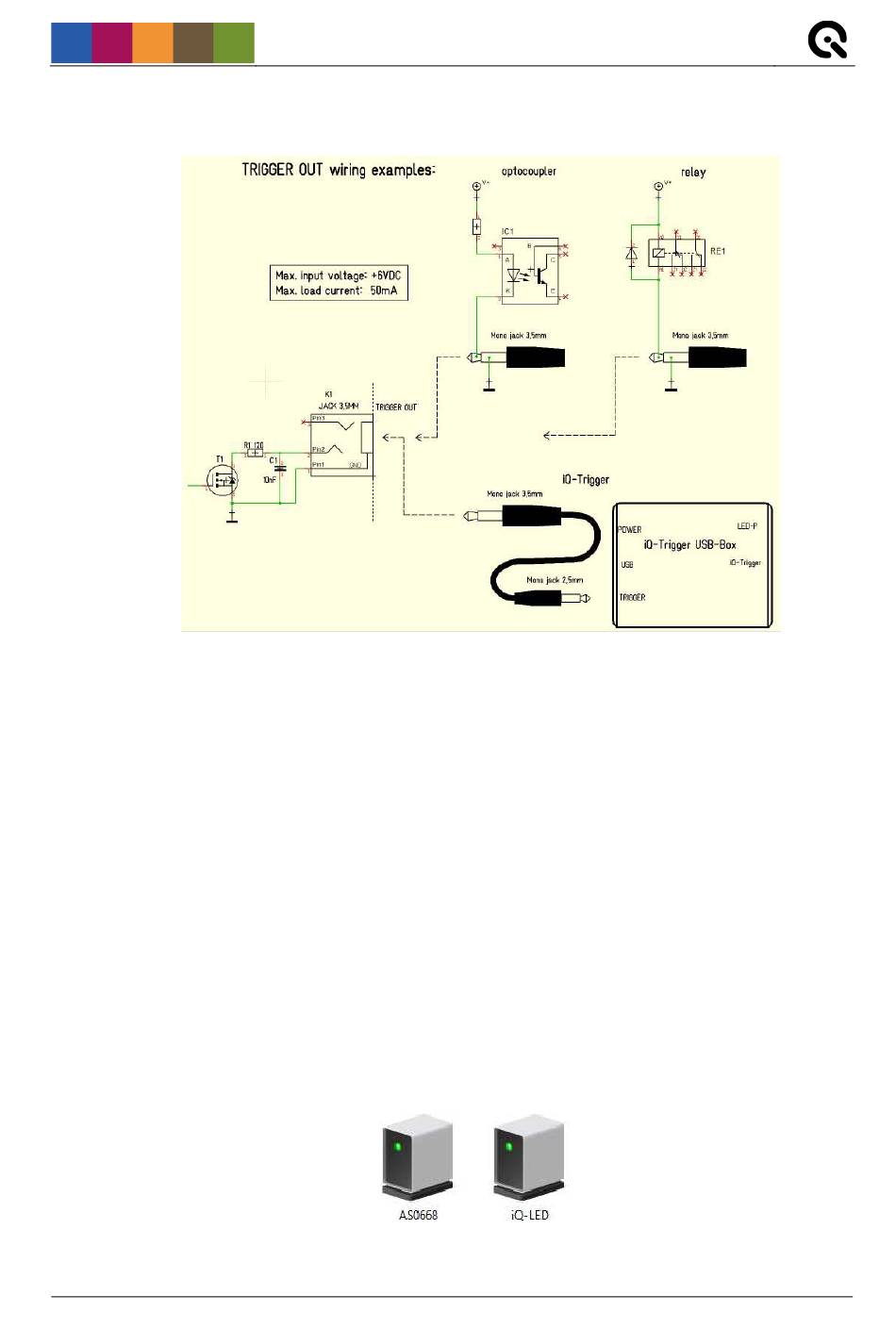

Trigger OUT wiring examples
