4. The system will install the spectrometer and iQ-LED drivers on your PC; this will take a few
seconds.
5. You can check the installation in your hardware manager.
3.3
Camera positioning
Requirements for your camera (device under test, DUT):
•
Maximum lens diameter: 37 mm
•
Minimum lens depth: 10 mm
Ensure:
•
Your DUT is as close as possible to the CAL3 opening
•
The lens is precisely in the middle of the diffuser
•
The front surface of the lens is at least 10 mm inside the diffuser
•
For lenses >= 160° FOV (field of view), it is recommended to bring the lens at least
20 mm inside the diffusor
Not fulfilling these requirements will lead to a nonuniform illuminated field of view. The easiest way to
align the camera correctly is to use the iQ-Align (sold separately, see 2.1).
Image Engineering

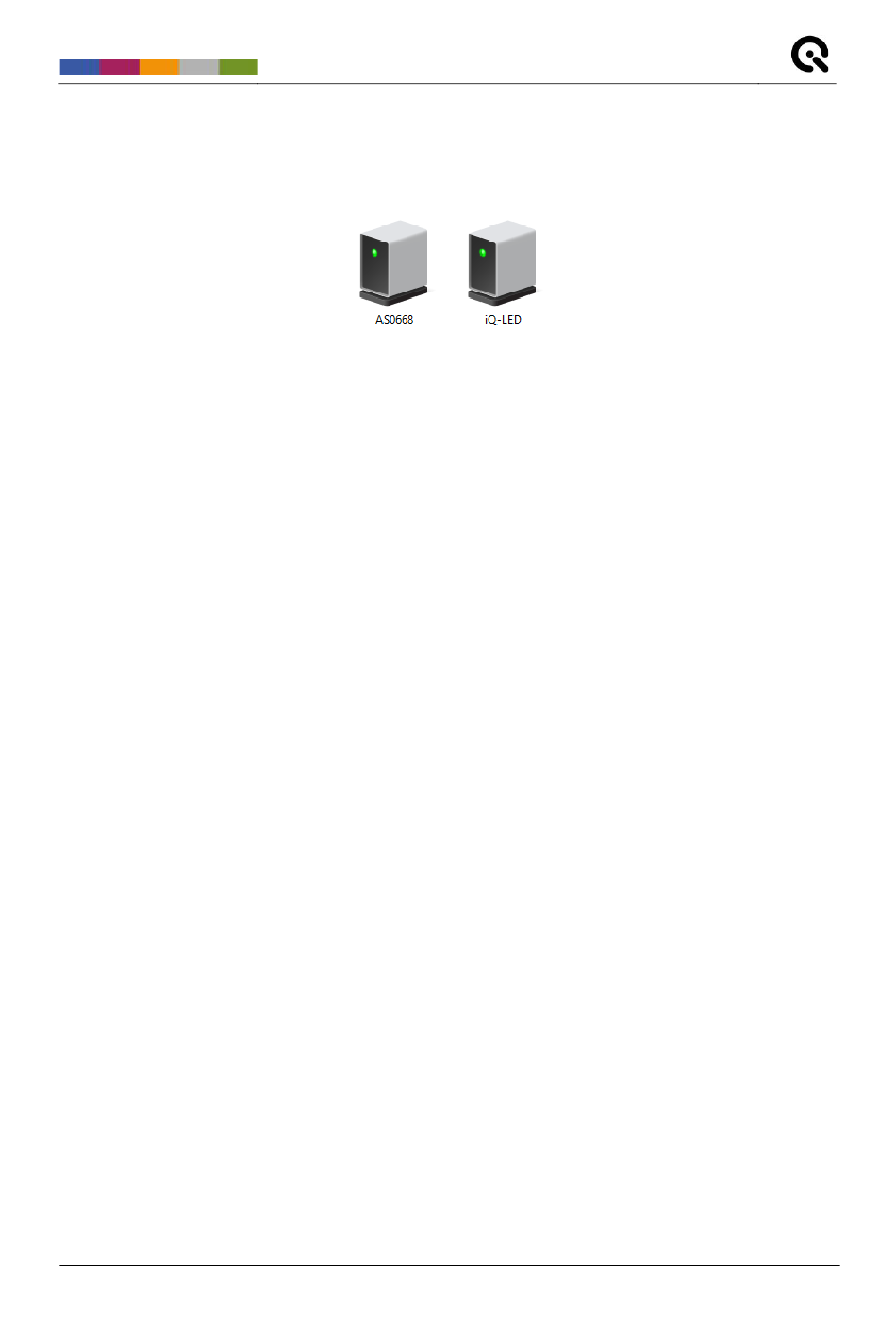

Hardware Manager: active iQ–LED and spectrometer
Seite 7 von 12
