iQ-Trigger: The iQ-Trigger is a mechanical finger that can press the shutter release
button within 25 ms. When working with touchscreens, exchange the solid fingertip for a
touch pen tip.
•
iQ-Analyzer-X software (shading module)
This module includes a special chart layout file that allows the analysis of images with
and without a keyhole effect.
3

OPERATING INSTRUCTIONS HARDWARE

3.1

Overview display and ports

•
1 x USB port for software control
•
1 x port for power adapter
•
1 x trigger output

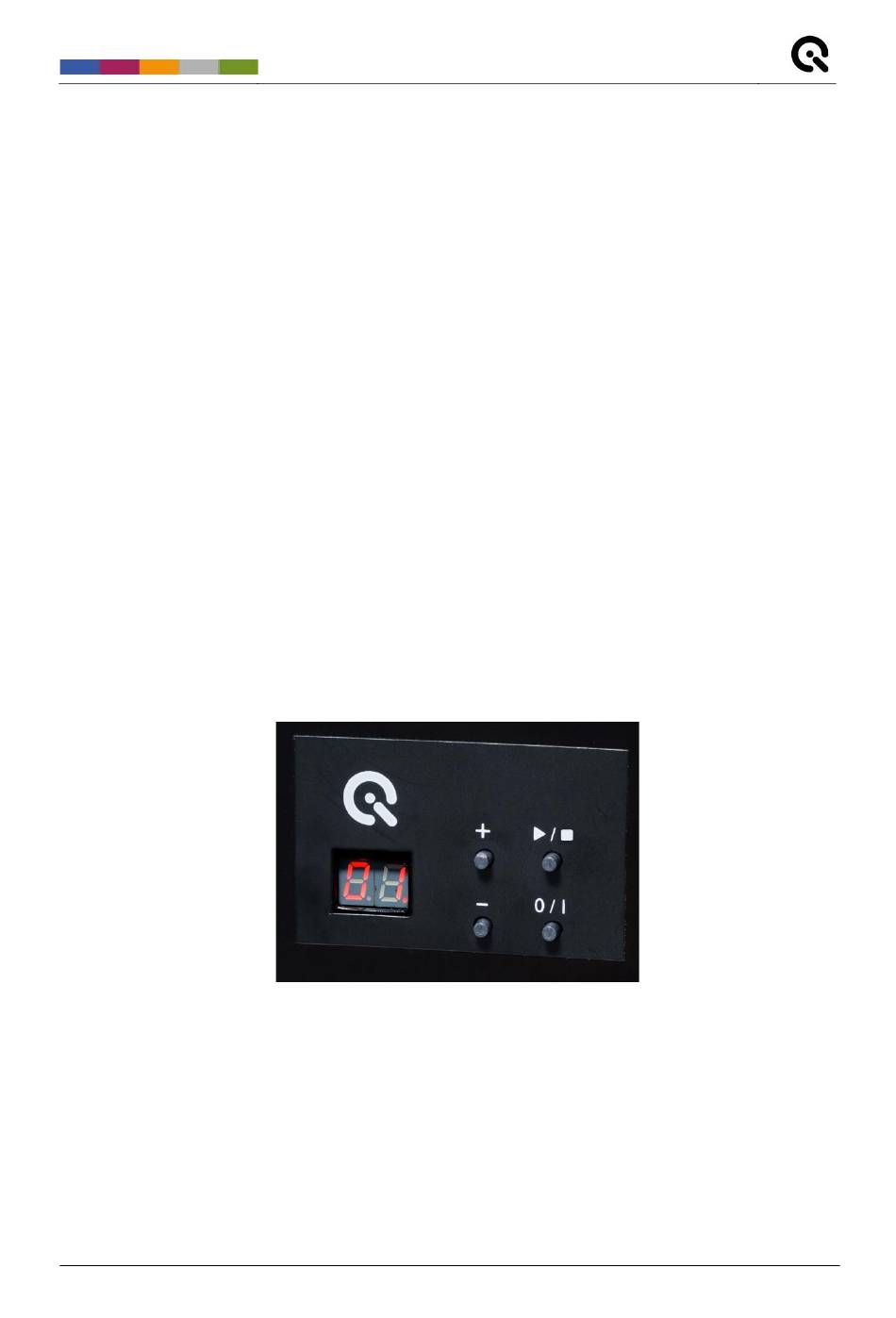

Use the control panel to set different light settings for the iQ-LEDs:
•
Use the "+" and "-" buttons to switch between 44 saved illuminants
•
The numerical display shows the storage of the illuminants
•
With the play and stop button, you can start and stop a saved light sequence with
different illuminants (it is possible to save one sequence on the device)
•
Use the power button to turn on and off the light
There are three pre-stored illuminants on your device (the intensity of each illuminant is shown in the
acceptance protocol of your device):
