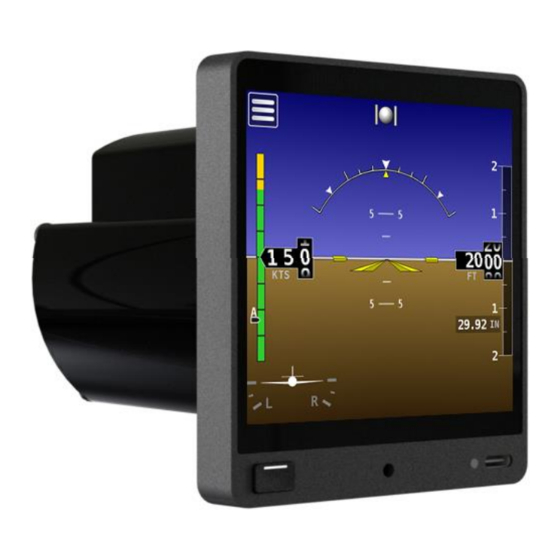

Dynon D30 Manual

Touchscreen electronic flight display
Hide thumbs Also See for D30:
Table of Contents

Advertisement

Quick Links

Download this manual
D30
Touchscreen Electronic Flight Display
Airplane Flight Manual Supplement
For Software Version 1.1.0
104002-000
6/26/2023
Copyright © 2023 by Dynon Avionics, Inc.
Dynon Avionics grants third parties' permission to print this document
D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023
Page | i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynon D30

Summary of Contents for Dynon D30

  • Page 1 Touchscreen Electronic Flight Display Airplane Flight Manual Supplement For Software Version 1.1.0 104002-000 6/26/2023 Copyright © 2023 by Dynon Avionics, Inc. Dynon Avionics grants third parties' permission to print this document D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023 Page | i...
  • Page 2 Information in this document is subject to change without notice. Dynon Avionics reserves the right to change or improve its products and to make changes in the content without obligation to notify any person or organization of such changes.
  • Page 3 Revision History APPROVAL DESCRIPTION OF CHANGE 06/26/2023 Initial Release ECO 387170 D30 - , Rev A, 6/26/2023 Page | iii Airplane Flight Manual Supplement...

  • Page 4: Table Of Contents

    Horizon Line and Pitch / Roll Indicators ..............6-5 Turn Rate Indicator ....................6-6 Slip / Skid Ball......................6-6 Barometer / Altimeter Setting ..................6-7 Alerts ......................... 6-7 Handling, Service, and Maintenance ........... 7-1 D30 - Airplane Flight Manual Supplement Page | iv 6/26/2023 , Rev A,...

  • Page 5: General

    Dynon Marketing email release. Using this Document To reduce paper, Dynon does not provide a printed version of this manual. However, Dynon grants permission to third parties to print this manual, as necessary. The most recent PDF version is available for download at dynon.com/docs. This manual is updated periodically. It is mandatory to keep a printed copy of the most recent revision in the airplane.
  • Page 6 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 1-2 6/26/2023 , Rev A,...

  • Page 7: Emergency & Non-Normal Procedures

    1. Fly by reference to primary flight instruments and whiskey compass. 2. Autopilot__________________________________________________________ DISCONNECT. 3. Aircraft Attitude_____________________________ MAINTAIN / REGAIN AIRCRAFT CONTROL. 4. Plan to land at nearest suitable airport. D30 - Airplane Flight Manual Supplement 6/26/2023 Page | 2-1 , Rev A,...
  • Page 8 • System will continue to operate normally until Backup Battery is depleted. • Battery icon on screen indicates charge status of Backup Battery. A fully charged Backup Battery provides at least 45 minutes of operation. D30 - Airplane Flight Manual Supplement Page | 2-2 6/26/2023...

  • Page 9: Normal Operations

    Normal Operations Operation of the Dynon D30 is intuitive; however, users should have a reasonable degree of familiarity with the D30's flight indications and other functions before operation. Flight Indications The D30 provides the flight indications listed below. See Figure 1 for locations of the D30's flight indications;...

  • Page 10: Startup And Shutdown

    2. If power is applied and unit does not startup, then press and hold bezel button for two seconds. Unit will startup. Altitude is not displayed until 30 seconds after startup. If the D30 senses an airspeed or altimeter setting adjustment, then altitude is immediately displayed.

  • Page 11: Backup Battery Charge Check

    Backup Battery Charge Check Prior to IFR flight, the charge on the D30's backup battery must be checked. To check the charge on the D30 backup battery: 1. Apply power to unit. 2. Remove power from unit. The Shutting down alert is displayed with a 30-second countdown timer.
  • Page 12 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 3-4 6/26/2023 , Rev A,...

  • Page 13: Performance

    Performance Use of the Dynon D30 has no effect on the airplane's performance. D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023 Page | 4-1...
  • Page 14 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 4-2 6/26/2023 , Rev A,...

  • Page 15: Weight & Balance

    Weight & Balance Installation of a Dynon D30 impacts the aircraft's level weight and balance once, during initial installation. The individual that performed the installation must add new empty weight and balance information to airplane's Aircraft Flight Manual (AFM). For weight and balance information, refer to the airplane's Pilot's Operating Handbook (POH) and associated AFM and supplements.
  • Page 16 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 5-2 6/26/2023 , Rev A,...

  • Page 17: System Overview

    Airspeed, Altitude, and Attitude data. The D30 provides pilots with immediate Primary Flight Information (PFI) in case of failure of the primary display or instruments providing PFI. It also allows pilots to cross-compare the presented PFI to ensure data integrity.

  • Page 18: Airspeed Tape And Indicated Airspeed

    Indicated Airspeed (Figure simulating an analog indicator and giving a sense of airspeed trend. The D30 is factory- calibrated to be accurate for airspeeds between 15 and 300 knots (17 to 345 mph). As airspeed increases from 0 knots, the indicator becomes active at 20 knots. The indicator remains active until airspeed drops below 15 knots.
  • Page 19 6.1.1 Airspeed Indicators The D30 presents the following airspeed indicators that provide 14 CFR 23.1545 compliant markings on the airspeed tape. See Figure 4 for examples of airspeed indicator markings. • Red Band: indicates speeds at and above the never exceed speed (V •...

  • Page 20: Altimeter And Vertical Speed Indicator

    5). The altimeter’s digits scroll up and down, giving a sense of Speed Indicator (VSI) (Figure the direction of movement. The D30 accurately displays altitudes from -1,200 to 27,000 ft (-365 to 8229 m). Altitude is not displayed until 30 seconds after startup. However, altitude is immediately displayed if the D30 senses airspeed or the altimeter setting is adjusted.

  • Page 21: Horizon Line And Pitch / Roll Indicators

    The D30 horizon has no pitch or roll limitation. The horizon line stays parallel to the Earth’s horizon line regardless of attitude. If the D30 rotates faster than 145 degrees per second or is powered on with airspeed applied, then the HORIZON RECOVERING alert is displayed.

  • Page 22: Turn Rate Indicator

    If the ball is within the two vertical lines, then the aircraft is in coordinated flight. Figure 8: Slip / Skid Ball D30 - Airplane Flight Manual Supplement Page | 6-6 6/26/2023...

  • Page 23: Barometer / Altimeter Setting

    Do not fly if flight has been lost. requires Instrument Flight Rules (IFR). Aircraft is in flight and See Section 2.2.3: electrical power to unit AIRCRAFT POWER has been lost. LOST. D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023 Page | 6-7...
  • Page 24 2. From Main Menu, touch System Event. This alert is not an emergency, nor does it 3. Follow on-screen make the D30 instructions and unairworthy. contact Dynon Technical Support. D30 - Airplane Flight Manual Supplement Page | 6-8 6/26/2023 , Rev A,...
  • Page 25 The internal ADAHRS If ADAHRS CAL See Section 2.2.2: sensors are CORRUPT alert is ADAHRS CAL malfunctioning. displayed… CORRUPT Do Not Fly. Contact Dynon Technical Support. D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023 Page | 6-9...
  • Page 26 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 6-10 6/26/2023 , Rev A,...

  • Page 27: Handling, Service, And Maintenance

    Handling, Service, and Maintenance Handling, service, and maintenance instructions are in the D30 Installation and Maintenance Manual document. D30 - Airplane Flight Manual Supplement, Rev A, 6/26/2023 Page | 7-1...
  • Page 28 This page intentionally left blank. D30 - Airplane Flight Manual Supplement Page | 7-2 6/26/2023 , Rev A,...
