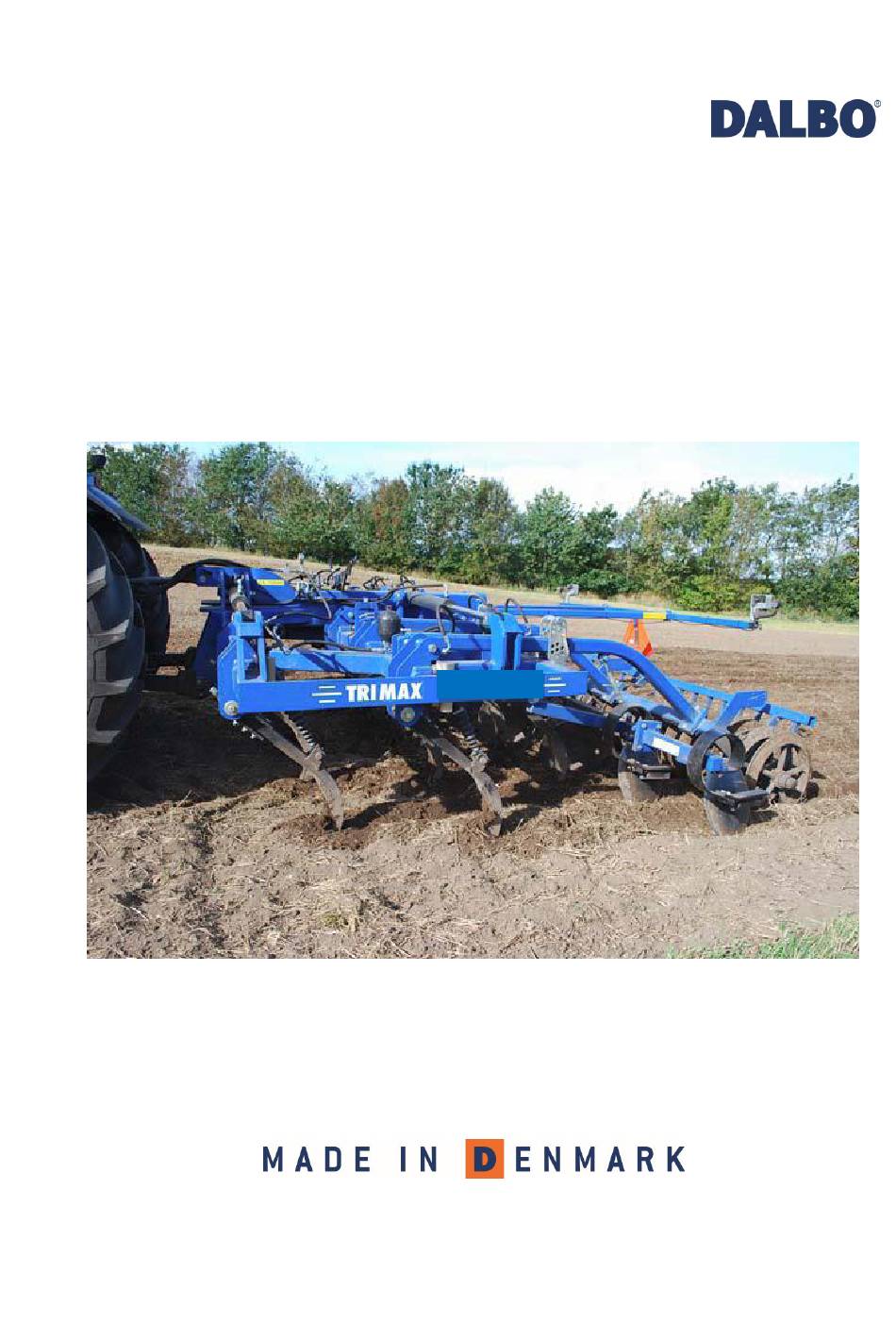

- Page 1 TRIMAX Classic 300 cm with fixed frame - 77033...
- Page 3 TRIMAX Classic Type 300 cm Congratulations on your new TRIMAX Classic. For safety reasons and to achieve opti- mum service from the product, please read the User Guide before use. © Copyright 2009. All rights reserved, DALBO A/S The TRIMAX Classic has: Type no.:...
-
Page 5: Table Of Contents
Table of Contents SAFETY ........................6 ......................... 6 ENERAL ........................6 YDRAULICS ........................7 SSEMBLY ....................7 AINTENANCE AND REPAIR ......................7 OAD TRANSPORT ........................8 ORRECT USE TECHNICAL DATA ..................... 9 ......................... 9 ELIVERY HOW TO USE THIS MANUAL ................... 10 USES ........................ -
Page 6: Safety
TRIMAX Classic Safety This symbol appears in the instruction manual each time there is a safety warning concerning your safety, the safety of others or functionality of the machine. All safety instructions must be observed and made available to all users of the machine. -
Page 7: Assembly
TRIMAX Classic • Clean hydraulic connections thoroughly before reconnecting. When con- necting hydraulic hoses to tractor hydraulics, ensure they are not under pressure. • Bleed the hydraulic system thoroughly after any repairs. • Check hydraulic hoses regularly for defects such as cracks, splits, crimps, wear or breaks. -
Page 8: Correct Use
TRIMAX Classic • When transporting, ensure permitted total weight for tractor is not ex- ceeded and that loading on tractor front axle is not less than 20% of trac- tor net weight. If this is the case, use weights on tractor front. -
Page 9: Technical Data
T-rings Flat steel crumbler Terra-cut Delivery TRIMAX Classic is delivered complete on a trailer. The machine can be parti- ally dismantled if exported. If lifting the machine, we recommend the use of straps on the mid-section to maintain balance. Page 9... -
Page 10: How To Use This Manual
TRIMAX Classic How to use this manual The sequence of subject matter in this manual can seem illogical. Please re- fer to the table of contents for page numbers for individual items. The manual is divided into main sections: • Safety •... -
Page 11: Uses
• Uniform mixing of crop residues. • Retains soil humidity. The TRIMAX Classic is therefore well suited for tilling the upper soil layer, where the highest rate of plant decomposition occurs. That's why the TRIMAX Classic is an efficient implement in a strategy for reduced soil-cultivation, as only one pass is needed to achieve full ripping with uni- form mixing of crop residues and soil microorganisms. -
Page 12: Connecting And Disconnecting
• Remember to secure with a split pin. Disconnection Fig. 3 TRIMAX Classic can be disconnect- ed whilst folded or extended. Remember to depressurise hoses before disconnecting them. The ball cock for the hydraulic stone shaker must also be closed (see fig. 8). -
Page 13: Setting Up
TRIMAX Classic Setting up The machine is supplied with factory settings, but fine adjustment will always be required before use. Numerous adjustment options make the machine more flexible and ensure maximum use. Depth Depth is controlled by the cage roller at the back, in the form of a T-ring rol- ler. - Page 14 TRIMAX Classic Fig. 5 If very deep tilling is required, the cage roller arm can be moved downwards in the holes (A). The machine must be lowered to the ground to support the cage rol- ler before detaching. Flat tilling Setting for flatter/shallower tilling is done by moving the pins downwards This will raise the chisel plough frame causing the tines to give flatter tilling.
-
Page 15: Tine Angle
TRIMAX Classic with spring bolts TRIMAX Classic is fitted with spring bolts to prevent stone damage. Fig. 8 When replacing spring bolts (A) al- ways place the bolt in the same hole as for the other tines. -
Page 16: Operation
We recommend running at a slight angle to the sowing direction for the best results. TRIMAX Classic must be set up so that it is supported by the cage roller. The tractor hydraulic lift handle must be fully lowered when in operation to allow the lift to move with the movements of the machine. -
Page 17: Accessories
TRIMAX Classic Accessories The TRIMAX Classic can be fitted with a range of accessories to suit require- ments. Flat steel crumbler Fig. 12 The flat steel crumbler (A) is fitted after the cage roller to further even out the soil. It is designed as a roller... -
Page 18: Terra-Cut
TRIMAX Classic Terra-cut Fig. 14 To part the soil flow thrown up from the tip, a Terra-cut (A) can be fitted. The Terra-cut is fitted to the centre hole (B) of the tine, and is suppor- ted by the stalk higher up. -
Page 19: Maintenance
TRIMAX Classic Maintenance Good maintenance ensures long service life and optimum use. Grease nipples are fitted where wear is heaviest. Tighten all screw connections after first working day. Check all split pins and bolts to avoid mechanical failure. Check hydraulic system for leaks. -
Page 20: Hydraulics
TRIMAX Classic Lubricate all lubrication points at least once annually. Hydraulics Check all hydraulic hoses for wear or cracks. Check all hoses for crimping. Lubricate exposed rams with oil or pressure-resistant grease to avoid rust forming when storing for long periods. Remember to remove before use. -
Page 21: Replacement Andrepairs
TRIMAX Classic Replacement andrepairs Safety is vital for all repair work on the machine. Always observe the follo- wing points, plus those under Safety First in the instruction manual. All maintenance and repair work can only be performed when the machine is lowered to the ground, the tractor is braked, engine stopped and ignition key removed to prevent accidental start. -
Page 22: Replacing Axles, Bearings And T-Rings
TRIMAX Classic Replacing axles, bearings and T-rings Lower machine to the ground. Support cage roller if necessary. Beware of accidental rolling when the bearing bolts are removed. Fig. 21 1 Remove bearing bolts. 2 Roll the T-ring axle away from the frame. - Page 23 TRIMAX Classic • 12 x 70 mm plough bolt, size 10.9 for securing tip • 12 x 35 mm plough bolt, size 10.9 for securing wings Replace the wings when they are worn to the extent that they no longer work properly, or before wear is caused to the bracket.
-
Page 24: Scrapping
TRIMAX Classic Scrapping Beware of the weight of any given part when removing or disassembling. All parts must be supported or lifted to avoid danger of falling. Disconnect hydraulic hoses and cylinders and drain oil. Collect oil in contai- ner to avoid pollution. Send oil and hoses for destruction. -
Page 25: Spare Parts
TRIMAX Classic Spare parts Page 25...
