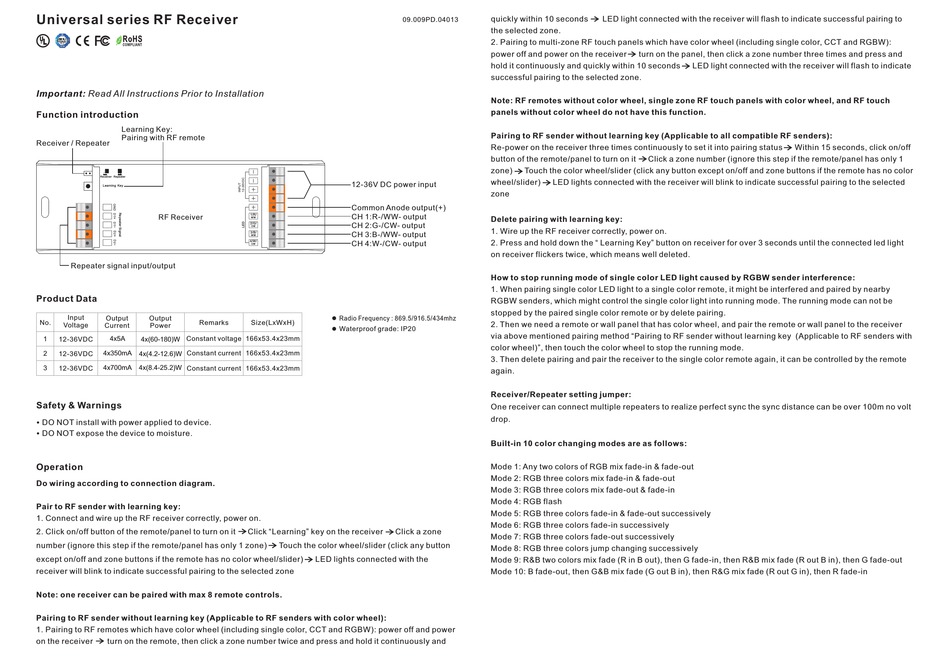

Sunricher Universal Series Quick Start Manual

Universal series RF Receiver

Important: Read All Instructions Prior to Installation

Function introduction

Learning Key:
Pairing with RF remote
Receiver / Repeater
Receiver Repeater
Learning Key
RF Receiver
Repeater signal input/output

Product Data

Input
Output Output
No. Remarks
Voltage Current Power
4x5A Constant voltage
1 12-36VDC 4x(60-180)W
4x350mA Constant current
2 12-36VDC 4x(4.2-12.6)W
3 4x700mA 4x(8.4-25.2)W
12-36VDC Constant current
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.

Operation

Do wiring according to connection diagram.

Pair to RF sender with learning key:

1. Connect and wire up the RF receiver correctly, power on.
2. Click on/off button of the remote/panel to turn on it  Click "Learning" key on the receiver  Click a zone
number (ignore this step if the remote/panel has only 1 zone)  Touch the color wheel/slider (click any button
except on/off and zone buttons if the remote has no color wheel/slider)  LED lights connected with the
receiver will blink to indicate successful pairing to the selected zone
Note: one receiver can be paired with max 8 remote controls.

Pairing to RF sender without learning key (Applicable to RF senders with color wheel):

1. Pairing to RF remotes which have color wheel (including single color, CCT and RGBW): power off and power
on the receiver  turn on the remote, then click a zone number twice and press and hold it continuously and
09.009PD.04013
12-36V DC power input
Common Anode output(+)
1/R/ CH 1:R-/WW- output
ww
2/G/ CH 2:G-/CW- output
cw
3/B/ CH 3:B-/WW- output
ww
4/W/ CH 4:W-/CW- output
cw
Radio Frequency : 869.5/916.5/434mhz
Size(LxWxH)
Waterproof grade: IP20
166x53.4x23mm
166x53.4x23mm
166x53.4x23mm
quickly within 10 seconds  LED light connected with the receiver will flash to indicate successful pairing to
the selected zone.
2. Pairing to multi-zone RF touch panels which have color wheel (including single color, CCT and RGBW):
power off and power on the receiver  turn on the panel, then click a zone number three times and press and
hold it continuously and quickly within 10 seconds  LED light connected with the receiver will flash to indicate
successful pairing to the selected zone.
Note: RF remotes without color wheel, single zone RF touch panels with color wheel, and RF touch
panels without color wheel do not have this function.

Pairing to RF sender without learning key (Applicable to all compatible RF senders):

Re-power on the receiver three times continuously to set it into pairing status  Within 15 seconds, click on/off
button of the remote/panel to turn on it  Click a zone number (ignore this step if the remote/panel has only 1
zone)  Touch the color wheel/slider (click any button except on/off and zone buttons if the remote has no color
wheel/slider)  LED lights connected with the receiver will blink to indicate successful pairing to the selected
zone

Delete pairing with learning key:

1. Wire up the RF receiver correctly, power on.
2. Press and hold down the " Learning Key" button on receiver for over 3 seconds until the connected led light
on receiver flickers twice, which means well deleted.

How to stop running mode of single color LED light caused by RGBW sender interference:

1. When pairing single color LED light to a single color remote, it might be interfered and paired by nearby
RGBW senders, which might control the single color light into running mode. The running mode can not be
stopped by the paired single color remote or by delete pairing.
2. Then we need a remote or wall panel that has color wheel, and pair the remote or wall panel to the receiver
via above mentioned pairing method "Pairing to RF sender without learning key (Applicable to RF senders with
color wheel)", then touch the color wheel to stop the running mode.
3. Then delete pairing and pair the receiver to the single color remote again, it can be controlled by the remote
again.

Receiver/Repeater setting jumper:

One receiver can connect multiple repeaters to realize perfect sync the sync distance can be over 100m no volt
drop.
Built-in 10 color changing modes are as follows:
Mode 1: Any two colors of RGB mix fade-in & fade-out
Mode 2: RGB three colors mix fade-in & fade-out
Mode 3: RGB three colors mix fade-out & fade-in
Mode 4: RGB flash
Mode 5: RGB three colors fade-in & fade-out successively
Mode 6: RGB three colors fade-in successively
Mode 7: RGB three colors fade-out successively
Mode 8: RGB three colors jump changing successively
Mode 9: R&B two colors mix fade (R in B out), then G fade-in, then R&B mix fade (R out B in), then G fade-out
Mode 10: B fade-out, then G&B mix fade (G out B in), then R&G mix fade (R out G in), then R fade-in
