Sunricher Universal Series Quick Start Manual

Universal Series RDM Enabled DMX512 Decoder
Important: Read All Instructions Prior to Installation

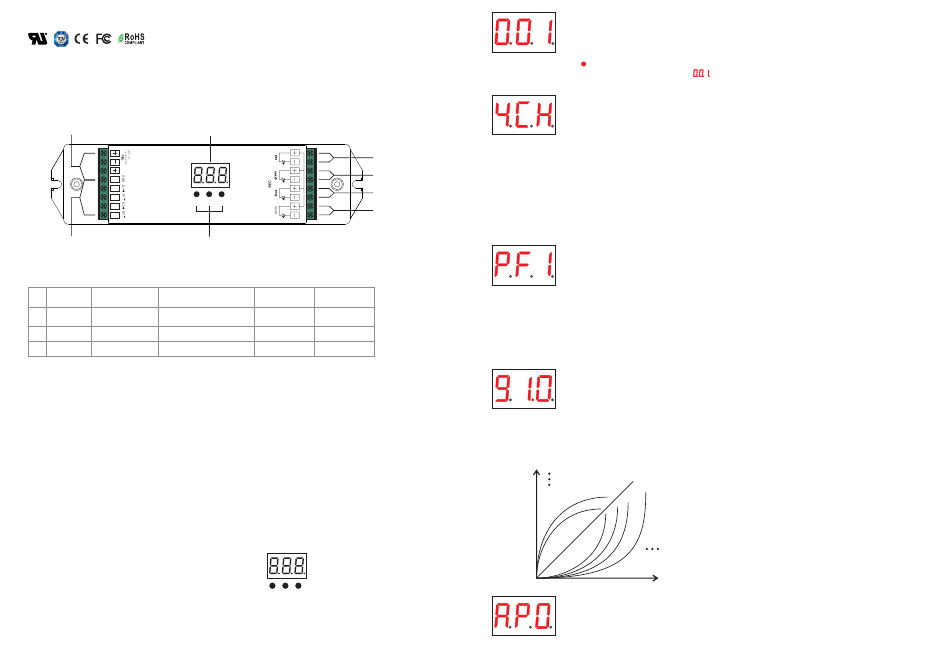

Function introduction
DC Power input
Digital display
DMX512 Decoder
A
2 groups DMX512 Manual set button
signal input & output
Product Data
Output
Input Output
No.
Current
Voltage Power
4x5A@12-36VDC 4x(60-180)W@12-36VDC
1 12-48VDC
4x2.5A@48VDC 4x120W@48VDC
4x(4.2-16.8)W
2 12-48VDC 4x350mA
3 12-48VDC 4x700mA 4x(8.4-33.6)W
• Standard DMX512 compliant control interface.
• Supports RDM function.
• 4 PWM output channels.
• DMX address manually settable.
• DMX channel quantity from 1CH~4CH settable.
• Output PWM frequency from 200HZ ~ 35K HZ settable.
• Output dimming curve gamma value from 0.1 ~ 9.9 settable.
• To work with power repeater to expand output power unlimitedly.
• Waterproof grade:IP20.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
To set desired DMX512 address through buttons,
button A is to set "hundreds" position,
button B is to set "tens" position,
button C is to set "unit" position.
Set DMX address (Factory default DMX address is 001)
Press and hold down any of the 3 buttons for over 3 seconds, digital display flashes to enter into address
setting, then keep short pressing button A to set "hundreds" position, button B to set "tens" position, button C to
set "units" position, then press and hold down any button for >3 seconds to confirm the setting.
CH 1:R/WW output
CH 2:G/CW output
CH 3:B/WW output
B C
CH4:W/CW output
Size(LxWxH)
Remarks
Constant voltage 178x46x22mm
Constant current 178x46x22mm
Constant current 178x46x22mm
A B C
70060001
DMX signal indicator : When DMX signal input is detected, the indicator on the display following after the digit
of "hundreds" position of DMX address turns on red
turn on, and the "hundreds" position of DMX address will flash.
Choose DMX Channel (Factory default DMX channel is 4CH)
Press and hold down both buttons B+C simultaneously for over 3 seconds, CH digital display flashes, then
keep short pressing button A to choose 1/2/3/4, which means total 1/2/3/4 channels. Press and hold down
button A for >3 seconds to confirm the setting. Factory default is 4 DMX channels.
For example the DMX address is already set as 001.
1CH=1 DMX address for all the output channels, which all will be address 001.
2CH=2 DMX addresses , output 1&3 will be address 001, output 2&4 will be address 002
3CH=3 DMX addresses, output 1, 2 will be address 001, 002 respectively, output 3&4 will be address 003
4CH=4 DMX addresses, output 1, 2, 3, 4 will be address 001, 002, 003, 004 respectively
Choose PWM frequency (Factory default PWM frequency is PF1 1KHz)
Press and hold down both buttons A+B simultaneously for over 3 seconds, digital display will show PF1, PF
means output PWM frequency, the digit 1 will flash, which means frequency, then keep short pressing button C
to select a frequency from 0-9 and A-L, which stand for following frequencies:
0=500Hz, 1=1KHz, 2=2KHz, ..., 9=9KHz, A=10KHz, B=12KHz, C=14KHz, D=16KHz, E=18KHz, F=20KHz,
H=25KHz, J=35KHz, L=200Hz.
Then press and hold down button C for >3 seconds to confirm the setting.
Choose Dimming Curve Gamma Value (Factory default dimming curve value is g1.0)
Press and hold down all buttons A+B+C simultaneously for over 3 seconds, digital display flashes g1.0, 1.0
means the dimming curve gamma value, the value is selectable from 0.1-9.9, then keep short pressing button B
and button C to select corresponding digits, then press and hold down both buttons B+C for >3 seconds to
confirm the setting.
0.8
0.9 0.9
output
brightness
<1
level
>1
DMX value level
Firmware OTA update
. If there is no signal input, the dot indicator will not
1.0
6.5
3.5
2.5
gamma
1.5
value
