Non Kink Tubing
Compression Stopper
Pump Kit Parts List
PK300 pump (1)
Approx. 20" length of 5/8" Black Non-kink tubing (1)
#7 compression stopper (1)
Wedges (2)
4mm Allen wrench (1)
Hose clamps (3) Note – Hose clamps may be used as
flow restrictor

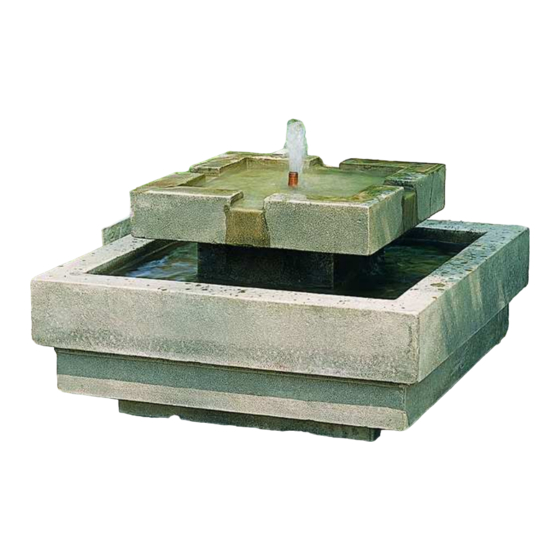

FT-36 Escala Fountain
(4 pieces)
COMPONENTS AND PARTS LIST
FT-36B
10"W x 8"H
32 lbs
Non Kink Tubing
Pump
FT-36C
26 ½"W x 9 ½"H
225 lbs
FT-36BC
4"W x 4 ½"H
2 lbs
NOTE: Component drawings are not to scale
Tools you will need
Level
4mm allen wrench (included)
This fountain uses cover FTNCOV-SM
Revised May 24, 2012
Fountain holds
approximately 9
gallons of water
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YARDART FT-36
Summary of Contents for YARDART FT-36
- Page 1 FT-36 Escala Fountain (4 pieces) Revised May 24, 2012 COMPONENTS AND PARTS LIST uniquegardendecor.com (866) 382-8600 Non Kink Tubing FT-36B 10”W x 8”H 32 lbs Fountain holds approximately 9 FT-36BC gallons of water 4”W x 4 ½”H 2 lbs Non Kink Tubing...
- Page 2 FT-36 Escala Fountain (4 pieces) Revised May 24, 2012 ASSEMBLY INSTRUCTIONS 1. Make sure you are assembling your fountain on a level surface. 2. Place the Basin (FT-36C) into position where the fountain will be installed. 3. Feed the pump cord through the hole in the basin leaving enough cord length to work with the pump outside the pump cover.
