PRE-ASSEMBLY PREPARATION
1. Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are missing,
please contact the retailer from whom you bought this product.
2. This product is VERY HEAVY, It should be assembled as near as possible to the
point of use. TAKE CARE WHEN LIFTING to avoid personal
injury and ( or ) damage to the product.
3. This product takes approximately 60 minutes to assemble with 3 people.
4. The fitting pack contains SMALL ITEMS which should be :
"KEPT AWAY FROM YOUNG CHILDREN"
5. Read this leaflet in full before commencing assembly.
6. You will require a 12 mm spanner (not supplied).

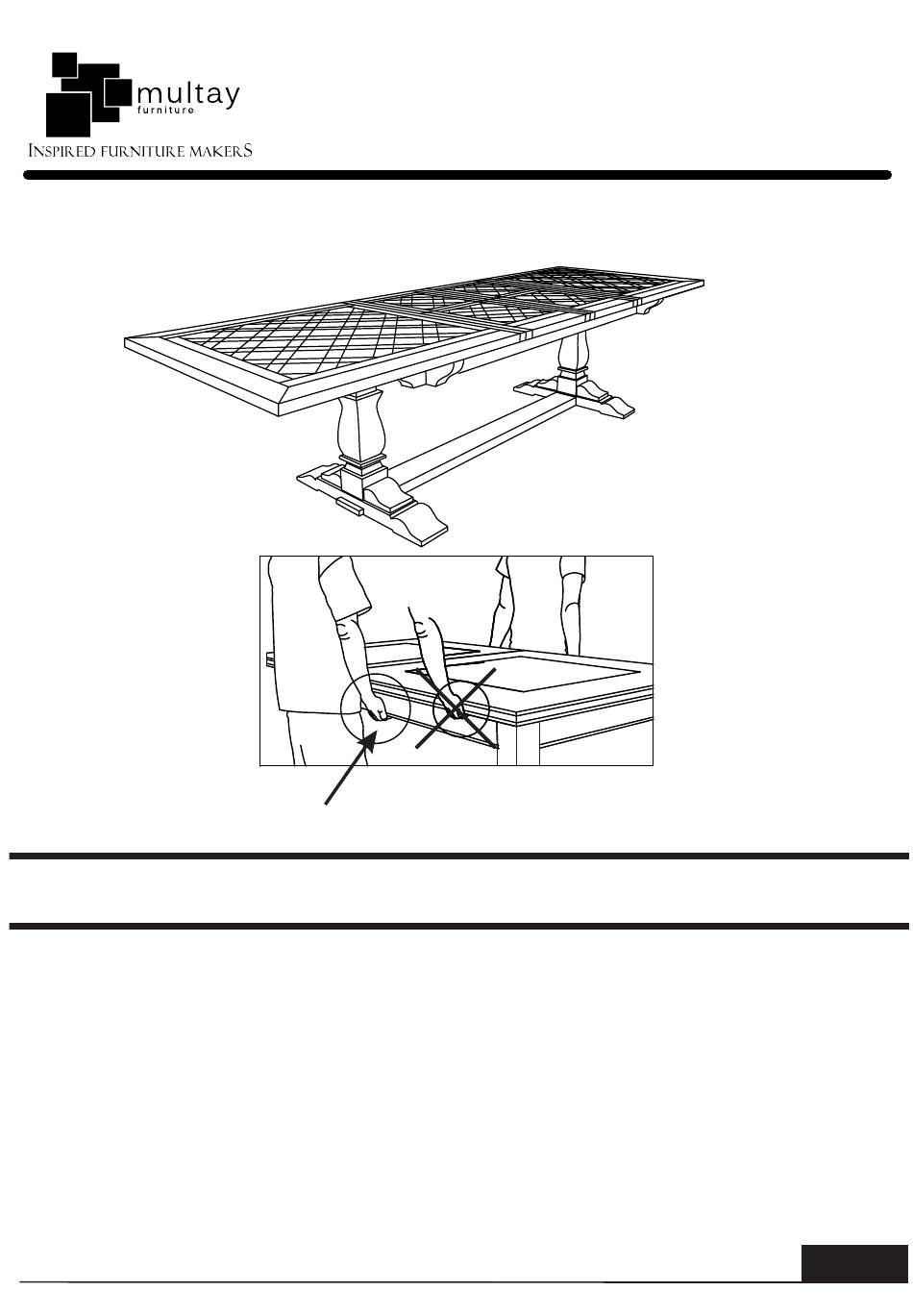

BUTTERFLY LEAF DINING TABLE
Thank you for buying our product
WARNING: MUST LIFT HERE
Step By Step Assembly Instructions
( NGR11 )
Assembly Instruction
Page 1
Advertisement
Table of Contents
Related Manuals for Multay BUTTERFLY LEAF NGR11
Summary of Contents for Multay BUTTERFLY LEAF NGR11
- Page 1 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Thank you for buying our product WARNING: MUST LIFT HERE Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION 1. Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product.
- Page 2 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction (A) Top Table (C) Leg Support (B) Pedestal Leg HARDWARE IDENTIFICATION ITEM DESCRIPTION Table Top Pedestal Leg Leg Support Washer, Bolt Page 2...
- Page 3 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Step 1 Place protective cardboard or blankets on the floor (make sure there is no debris) and place the top of the table upside down as per the diagram below (Fig.1) Unlock the mechanism, Fig.1 (Shows the table upside down on the floor ready for assembling) locked mechanism protector sheet...
- Page 4 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Step 2 There are 2 x table leg marked clearly with white stickers ( 1 and 2 ). Underneath the table, there are corresponding marks ( 1 and 2 ). Fit the table leg ( 1 ) to underside Left of table marked ( 1 ) and do the same with leg ( 2 ) to underside Right of table ( 2 ).
- Page 5 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction tighten the bolt tighten the bolt Fig.6 Fig.5 Fig.5 Shows the underside of the table with clear markings of 1 with 1, and 2 with 2, also show bolts and washer. Fig.6 Tighten the bolts firmly ( make sure used the washer ) tighten the bolt...
- Page 6 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Step 3 Turn the table over. First on to one side then carefully using at least 2 men turn the table into its final operating position. THIS PRODUCT IS HEAVY. TABLE MUST BE LIFTED DO NOT LIFT TABLE BY THE FRAME FROM BY TOP TABLE ONLY...
- Page 7 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Step 4 - (1 Leaf Open) Unlock and open the table mechanism and you will find 2 extension leaves. Place one of the extension into the table noting the positions of the locating tenons. Push the main leaves back together ensuring the pins locate into the holes.
- Page 8 BUTTERFLY LEAF DINING TABLE ( NGR11 ) Assembly Instruction Step 5 - (2 Leaf Open) Open the table mechanism and you will find 1 extension leave. Place the extension into the table noting the positions of the locating tenons. Push the main leaves back together ensuring the pins locate into the holes. Fig.12 Fig.13 2 Leaf Open...
