Thank you for buying our product
Step By Step Assembly Instructions

PRE-ASSEMBLY PREPARATION

1.Please check the pack contents before attempting this product.
A full checklist of component is given in this leaflet. If any component are missing, please contact
the retailer from whom you bought this product.
2.This product is heavy, it should be assembled as near as possible to the point of use.
TAKE CARE WITH LIFTING to affoid personal in jury and (or) damage to the product.
3.This product takes approximately 30 minutes to assemble with 2 people.
4.This product already contain fitting which should be :
" KEPT AWAY FROM YOUNG CHILDREN "
5.Read this leaflet in full before commencing assembly.

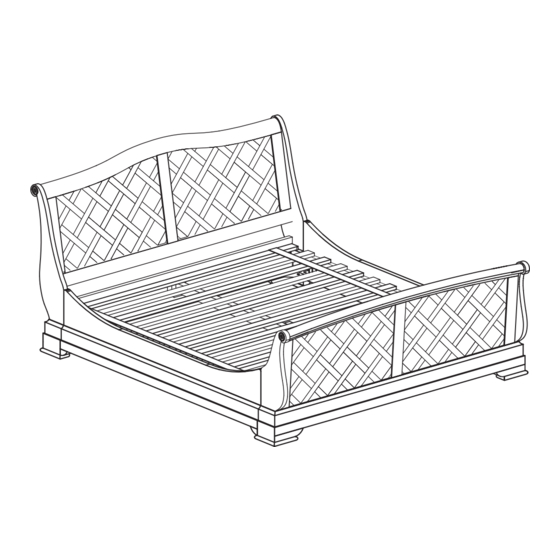

Seville Bed 150 ( SVB01 )
Assembly Instruction
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Seville Bed 150 SVB01 and is the answer not in the manual?

Questions and answers

Related Manuals for Multay Seville Bed 150 SVB01

Summary of Contents for Multay Seville Bed 150 SVB01

  • Page 1 Seville Bed 150 ( SVB01 ) Assembly Instruction Thank you for buying our product Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION 1.Please check the pack contents before attempting this product. A full checklist of component is given in this leaflet. If any component are missing, please contact the retailer from whom you bought this product.
  • Page 2 Seville Bed 150 ( SVB01 ) Assembly Instruction (D) Slat (A) Headboard ( C ) Side Rail (B) Footboard ( C ) Side Rail (F) Bolt Connecting Rails (E) Slat Support HARDWARE IDENTIFICATION ITEM DESCRIPTION HEADBOARD FOOTBOARD SIDE RAILS SLATS ( Assembled ) SLATS SUPPORT BOLT CONNECTING RAIL (Embedded in side rail) Page 2...
  • Page 3 Seville Bed 150 ( SVB01 ) Assembly Instruction 1. HEADBOARD AND SIDE RAIL ASSEMBLY # Step 1 1. “Left / Right” marked on headboard must be matched with “Left/Right” marked on each side rail. Note : - Its required one person to hold the headboard while the other Headboard attached the side rail.
  • Page 4 Seville Bed 150 ( SVB01 ) Assembly Instruction 2. FOOTBOARD AND SIDE RAIL ASSEMBLY # Step 2 1. “Left / Right” marked on footboard must be matched with “Left/Right” marked on each side rail. Side Rail Footboard 2. The side rail must be pushed down hardly to get in one level with footboard. Footboard must follow to be adjusted as well.
  • Page 5 Seville Bed 150 ( SVB01 ) Assembly Instruction 3. SLAT SUPPORT ASSEMBLY Slat Support 4. SLAT ASSEMBLY Slat Page 5...
