PRE-ASSEMBLY PREPARATION
1. Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are missing,
please contact the retailer from whom you bought this product.
2. This product is VERY HEAVY, It should be assembled as near as possible to the
point of use. TAKE CARE WHEN LIFTING to avoid personal
injury and ( or ) damage to the product.
3. This product takes approximately 60 minutes to assemble with 4 people.
4. The fitting pack contains SMALL ITEMS which should be :
"KEPT AWAY FROM YOUNG CHILDREN"
5. Read this leaflet in full before commencing assembly.
6. You will require a 12 and 13 mm spanner (not supplied).

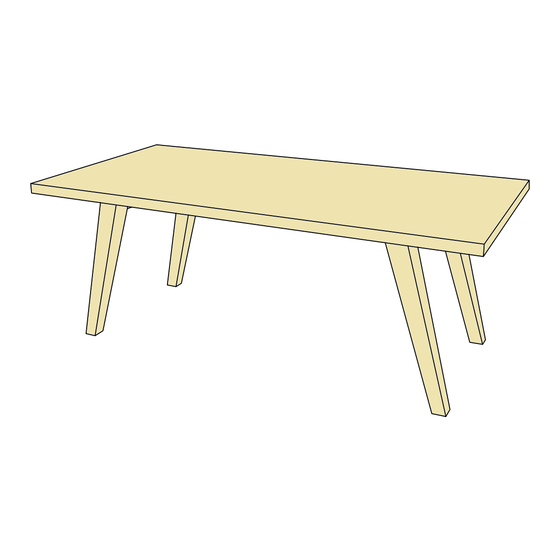

Rectangular Dining Table
Assembly Instruction
Thank you for buying our product
Step By Step Assembly Instructions
AN03
Page 1
Advertisement
Table of Contents
Related Manuals for Multay AN03
Summary of Contents for Multay AN03
- Page 1 Rectangular Dining Table AN03 Assembly Instruction Thank you for buying our product Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION 1. Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product.
- Page 2 Rectangular Dining Table AN03 Assembly Instruction (A) Table Top (B) Base Leg (B) Base Leg HARDWARE IDENTIFICATION ITEM DESCRIPTION Table Top Base Leg Deck screw M6 x 75mm & Ring Washer Page 2...
- Page 3 Rectangular Dining Table AN03 Assembly Instruction ( C) Dex Screw 75mm Deck screw with washer DONE ! Page 3...
