Thank you for buying our product
Step By Step Assembly Instructions
PRE-ASSEMBLY PREPARATION
1. Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are missing,
please contact the retailer from whom you bought this product.
2. This product is VERY HEAVY, It should be assembled as near as possible to the
point of use. TAKE CARE WHEN LIFTING to avoid personal
injury and ( or ) damage to the product.
3. This product takes approximately 60 minutes to assemble with 3 people.
4. The fitting pack contains SMALL ITEMS which should be :
"KEPT AWAY FROM YOUNG CHILDREN"
5. Read this leaflet in full before commencing assembly.
6. You will require a 17 mm spanner (not supplied).

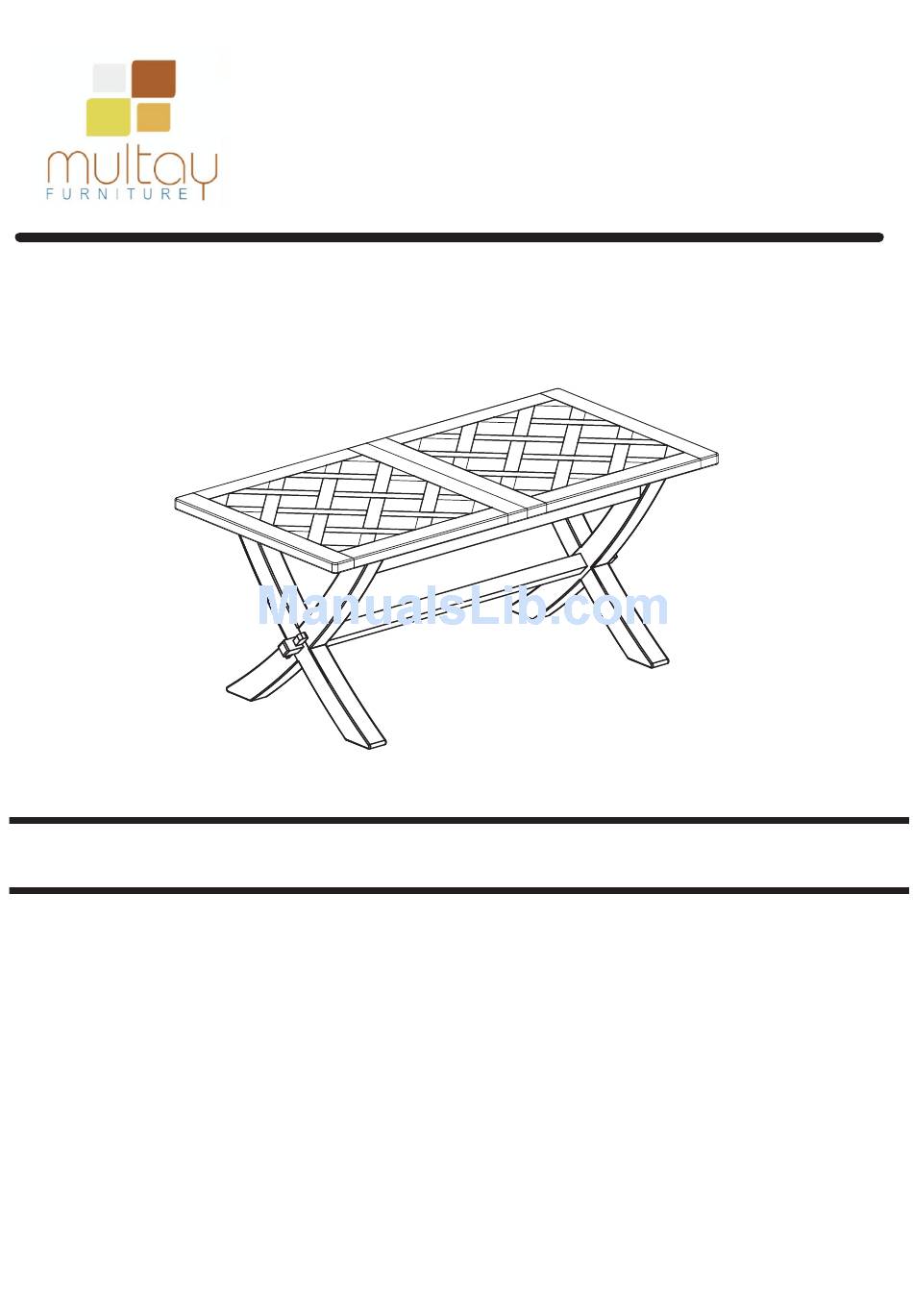

X Frame Dining Table ( SV01 )
Assembly Instruction
Advertisement
Table of Contents
Related Manuals for Multay SV01
Summary of Contents for Multay SV01
- Page 1 X Frame Dining Table ( SV01 ) Assembly Instruction Thank you for buying our product Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION 1. Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product.
- Page 2 X Frame Dining Table ( SV01 ) Assembly Instruction (A) Top Table (B) Leg ( E ) Nut, Washer, Bolt (D) Wooden Peg ( C ) Center Rail HARDWARE IDENTIFICATION ITEM DESCRIPTION Table Top Center Rail Wooden Peg Nut, Washer, Bolt...
- Page 3 X Frame Dining Table ( SV01 ) Assembly Instruction 1. Step Place protective cardboard or blankets on the floor ( make sure there is no debris ) Fig.1 Insert stretcher bar into leg shows the Wooden Pegs being hammered firmly...
- Page 4 X Frame Dining Table ( SV01 ) Assembly Instruction 2. Step Place protective cardboard or blankets on the floor ( make sure there is no debris ) and place the top of the table upside down as per the diagram below ( fig.2) Fig.2 (Shows the table upside down on the floor ready for assembling)
- Page 5 X Frame Dining Table ( SV01 ) Assembly Instruction 4. Step Turn the table over. First onto one side then carefully using at least 2 men turn the table into its final operating position. THIS PRODUCT IS HEAVY. Locate the Wooden Pegs. Using a hammer strike the wooden peg into the stretcher bar tenon FIRMLY until the table is stable.
- Page 6 X Frame Dining Table ( SV01 ) Assembly Instruction IMPORTANT NOTICE : PLEASE ENSURE THE BOLTS ARE INSERTED AS SHOWN BELOW...
