Multay Banquet Table Assembly Instructions Manual

Hide thumbs

Advertisement

Table of Contents

PRE-ASSEMBLY PREPARATION

1. Please check the pack contents before attempting to assemble this product.
A full checklist of components is given in this leaflet. If any components are missing,
please contact the retailer from whom you bought this product.
2. This product is VERY HEAVY, It should be assembled as near as possible to the
point of use. TAKE CARE WHEN LIFTING to avoid personal
injury and ( or ) damage to the product.
3. This product takes approximately 60 minutes to assemble with 3 people.
4. The fitting pack contains SMALL ITEMS which should be :
"KEPT AWAY FROM YOUNG CHILDREN"
5. Read this leaflet in full before commencing assembly.
6. You will require a 17 mm spanner (not supplied).
Thank you for buying our product
WARNING: MUST LIFT HERE
Step By Step Assembly Instructions
Banquet Table
Extending Plank Table ( DT01 )
Assembly Instruction
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Banquet Table and is the answer not in the manual?

Questions and answers

Related Manuals for Multay Banquet Table

Summary of Contents for Multay Banquet Table

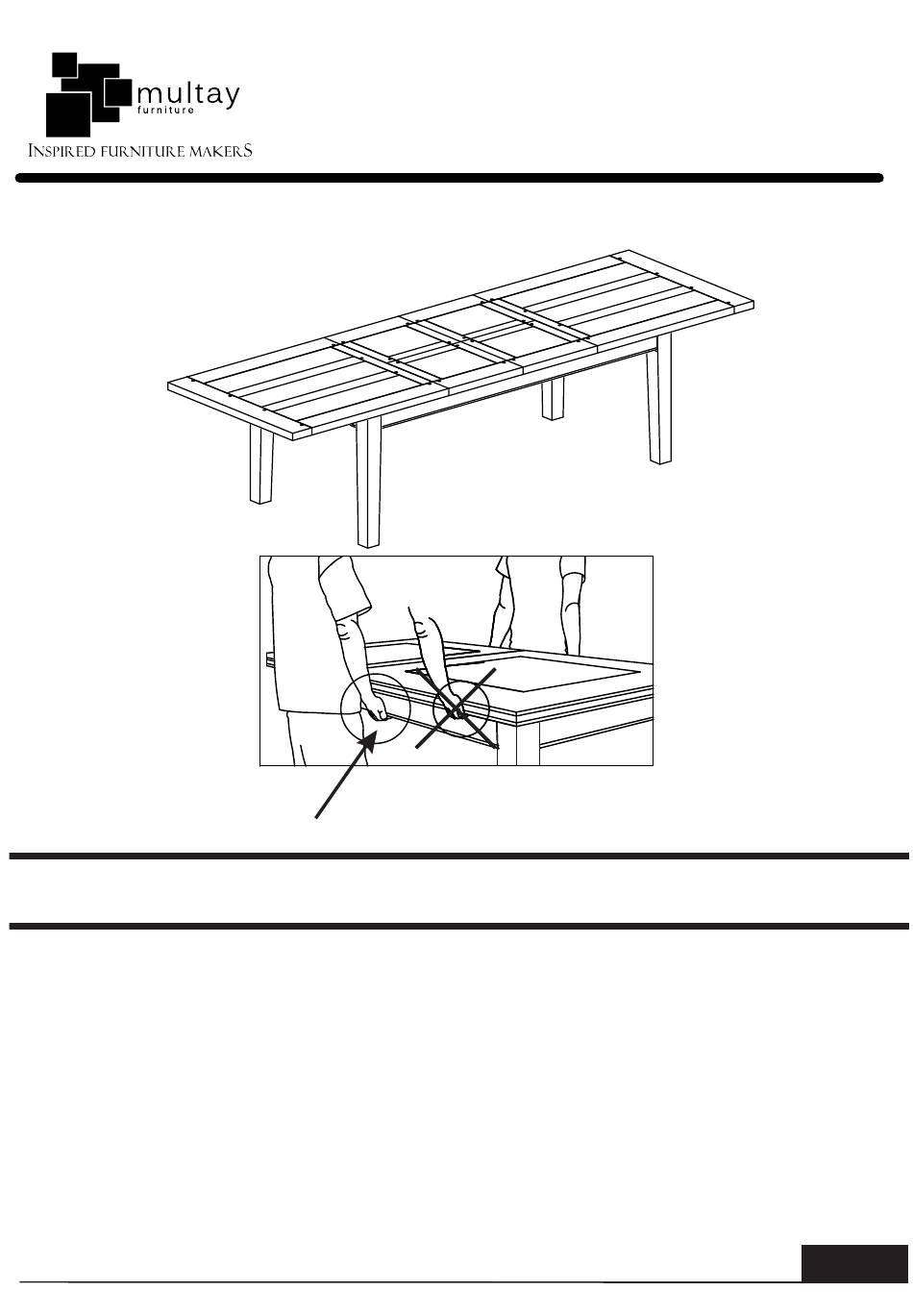

  • Page 1 Banquet Table Extending Plank Table ( DT01 ) Assembly Instruction Thank you for buying our product WARNING: MUST LIFT HERE Step By Step Assembly Instructions PRE-ASSEMBLY PREPARATION 1. Please check the pack contents before attempting to assemble this product. A full checklist of components is given in this leaflet. If any components are missing, please contact the retailer from whom you bought this product.
