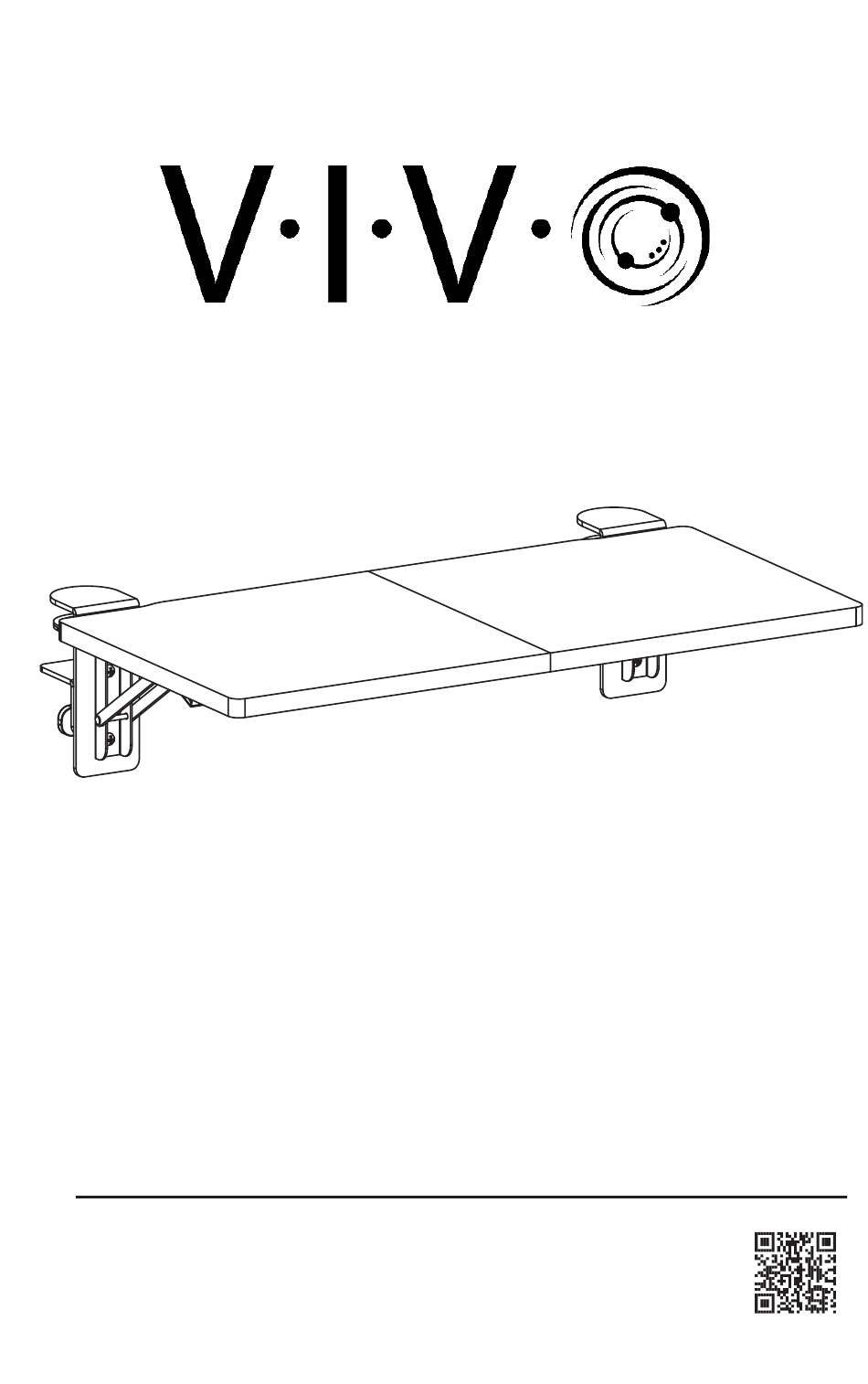

- Page 1 Clamp-On 24” x 12” Desk Extension SKU: DESK-EXT24/W Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/desk-ext24...
- Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 Package Contents A (x1) B (x1) C (x2) D (x2) Right Board Left Board Support Bracket Folding Bracket E (x2) Clamp Included Hardware & Tools S-A (x8) S-B (x6) S-C (x4) ST5.5x13mm Screw M5x12mm Screw M6x6mm Screw Tools Needed: Weight Capacity: 44lbs (20kg) Phillips...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 Connect Right Board (A) and Left Board (B) together using Support Bracket (C), ST5.5x13mm Screws (S-A) and a Phillips screwdriver. S-A (x8) Push Boards towards each other while tightening screws to prevent a gap forming in the seam STEP 2 Press and hold the release levers on Folding Brackets (D) to lift and unfold. - Page 5 STEP 3 Connect Folding Brackets (D) to board assembly using M5x12mm Screws (S-B) and a Phillips screwdriver. S-B (x6) STEP 4 DESKTOP THICKNESS DESKTOP THICKNESS LESS THAN 1.83” (<46.5mm) 1.26-3.48” (32-88.5mm) Please proceed to STEP 5 on next page. Follow steps below to adjust Clamp. DESKTOP THICKNESS 1.26-3.48”...
- Page 6 STEP 5 Connect Clamps (E) to Folding Brackets (D) using M6x6mm Screws (S-C) and a Phillips screwdriver. S-C (x4) STEP 6 Secure Clamps (E) to the desktop. Hold release levers on Folding Bracket (D) to raise and lower extension. Release Lever...
- Page 7 [ THIS PAGE INTENIONALLY LEFT BLANK ]...
- Page 8 LAST UPDATED: 11/20/23 REV1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
