MuxLab 100504 Quick Installation Manual

Specifications

Environment HDMI 1.4 (3D)
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Transparent to the user.
Frequency 165 MHz.
Signals HDMI 1.4 protocol.
Connectors 2 HDMI Type A and 2 (two) 3.5mm jacks for the TX
1 HDMI Type A and 2 (two) 3.5mm jacks for the RX
Cables not included. 1 S/PDIF Female for the RX
Maximum Distance Cat 5e/6: 164 ft (50 m) up to 1080p60
Note: When installed in an electrically noisy environment, an
Based on a maximum
STP cable must be used. Also, cross-connection reduces the
length of 6.6 ft (2 m) of
effective distance depending on the grade of twisted cable used.
HDMI cable per end.
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use
Pin 7 (R) Pin 8 (T)
EIA/TIA 568A or 586B
straight-through wiring.
Audio Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
HDCP Revision 1.1
Cable One (1) Cat 5e/6 or better twisted pair cable required
Power Supply One (1) 5 V / 1 A DC
Power Consumption Transmitter: 3.2 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 90% non-condensing
Enclosure Metal
Dimensions 65 mm x 118 mm x 26 mm
Weight 410 g (TX+RX)
Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty 1 year
Order Information 100504 HDMI Extender (UPC: 627699505045)
2321 Cohen St, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Receiver: 2.2 Watt
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000920-A SE-000920-A
HDMI Extender Kit over UTP
Quick Installation Guide

Overview

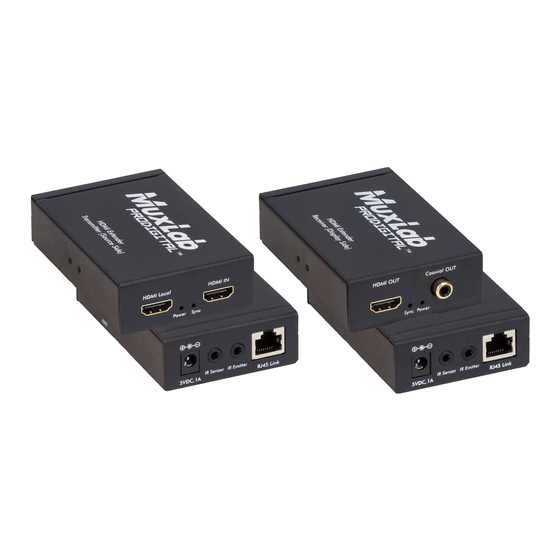

The HDMI Extender Kit over UTP (100504) allows HDMI equipment to be connected
up to 164 ft (50 m) @ 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a
point-to-point configuration. The 100504 includes one (1) Transmitter and one (1)
Receiver as well as an IR Emitter and IR Sensor for remote control applications. The
extender supports up to 1920 X 1080p60 and VGA-UXGA resolutions. It is HDCP 1.1
compliant and able to transport not only HDMI video but also the new lossless
compressed digital audio.

Applications

Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
4b. Connect one (1) Cat 5e/6 cable to the RJ45 LINK connector on the Receiver.
5. Connect the 48VDC power supply to both the Transmitter and Receiver first. If
power is present, the blue power LED of the Transmitter and the Receiver will be
ON.
Note: Power-up the HDMI Extender only after all connections are made.
6. Power-up the HDMI equipment and verify the image quality.
7. This product support bi-directional IR control. If infrared remote control is needed
to control the Source equipment from the Display, connect the IR Sensor to the
3.5mm Stereo Jack of the receiver and the IR Emitter to the 3.5mm Mono Jack of
the Transmitter.
Note: The IR Sensor has a black color while the IR Emitter has a clear color.
100504
