MuxLab 100504 Quick Installation Manual

Specifications
Environment HDMI 1.4 (3D)
DVD, TVs, projectors, monitors, PC, laptops supporting HDMI
Devices
Transmission Transparent to the user.
Frequency 165MHz.
Signals HDMI 1.4 protocol.
Resolution 480i to 1080p @ 50/60 FPS
VGA to UXGA
Connectors 2 HDMI Type A and 2 (two) 3.5mm jacks for the Transmitter
1 HDMI Type A and 2 (two) 3.5mm jacks for the Receiver
1 S/PDIF Female for the RX
LEDs Power: Blue
Link: Blue
Cat 5e/6: 164ft (50m) up to 1080p60
Maximum Distance
Note: When installed in an electrically noisy environment, an
Based on a maximum
STP cable must be used. Also, cross-connection reduces the
length of 6.6 ft (2 m) of
effective distance depending on the grade of twisted cable
HDMI cable per end.
used.
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use
Pin 7 (R) Pin 8 (T)
EIA/TIA 568A or 586B
straight-through wiring.
Dolby Digital Plus, Dolby TrueHD and DTS-HD Master Audio
Audio
HDCP Compliant
HDCP
Power Supply Two (2) 5V / 1A DC power supplies
Transmitter: 3.2W
Power Consumption
Temperature Operating: 0° to 40°C
Humidity: Up to 90% non-condensing
Enclosure Metal
Dimensions 65mm x 118mm x 26mm
410g (TX+RX)
Weight
Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
Warranty 1 year
Order Information 100504 HDMI Extender Pair, HD
2321 Cohen St, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Receiver: 2.2W
Storage: -20° to 60°C
Fax: (514) 905-0589
URL: www.muxlab.com
94-000920-A SE-000920-A
HDMI Extender Pair, HD - Quick Installation Guide

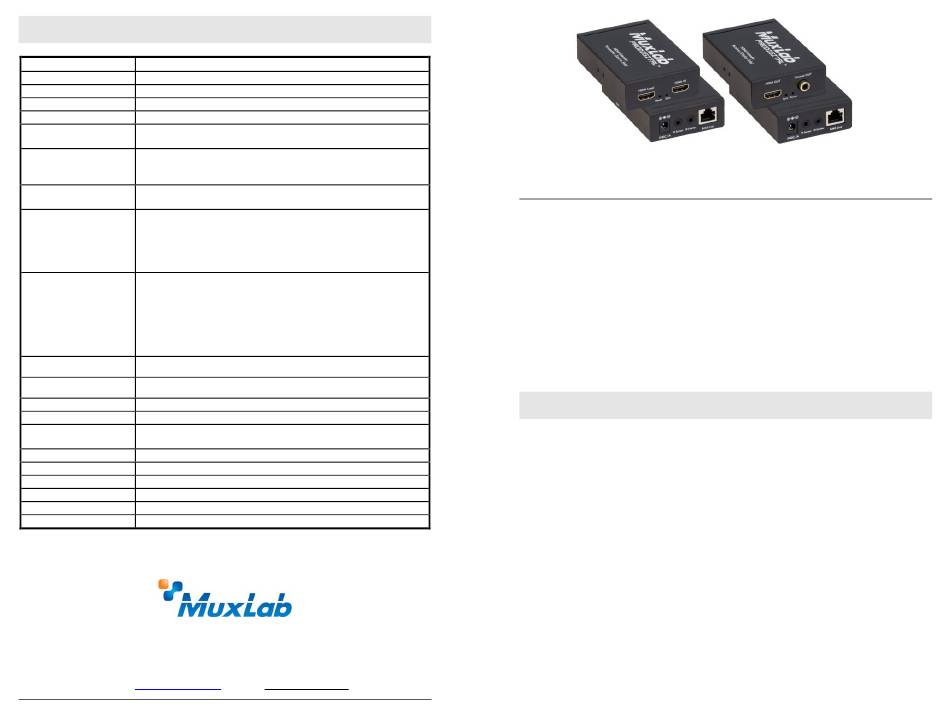

Overview

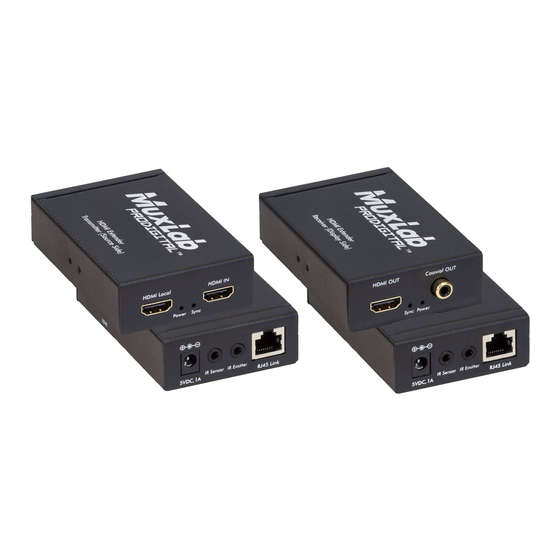

The HDMI Extender Pair, HD (100504) allows an HDMI video signal to be transported
up to 164ft (50m) over Cat 5e/6 UTP cable. This extender pair supports video
resolutions up to 1920 X 1080p60 and VGA-UXGA. It is HDCP compliant and
supports an HDMI Loop-out on the Transmitter and Digital Audio extract on the
Receiver. The product includes one Transmitter and Receiver, two Power Supplies, two
Emitters, and two Sensors.
Applications
Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.
4b. Connect one (1) Cat 5e/6 cable to the RJ45 LINK connector on the Receiver.
5. Connect the 5V/1A DC power supplies to both the Transmitter and Receiver first.
If power is present, the blue power LED of the Transmitter and the Receiver will be
ON.
100504
